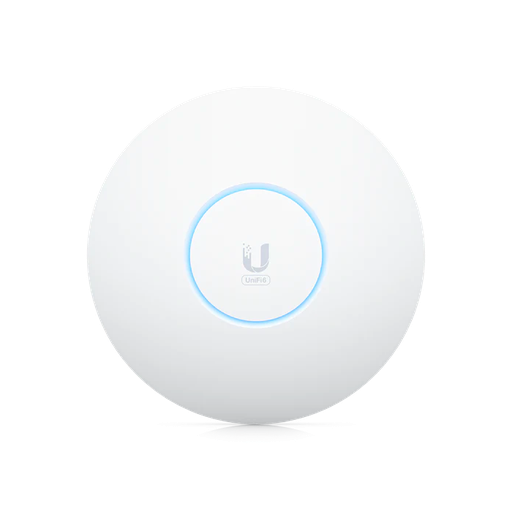

Ubiquiti UniFi U6+ – Compact and High-Performance WiFi 6 Access Point

The Ubiquiti UniFi U6+ is an entry-level yet powerful access point designed for small and medium-sized businesses. With dual-band WiFi 6 support, the U6+ ensures faster speeds, improved efficiency, and better coverage compared to previous models. Offering 4 spatial streams, this compact AP provides seamless wireless connectivity for up to 300+ concurrent devices within a 140 m² (1,500 ft²) coverage area. Its Power over Ethernet (PoE) capability simplifies installation by reducing cable clutter, making it a cost-effective and scalable solution for offices, retail spaces, and hospitality environments. Whether you need reliable high-speed internet for work, video streaming, or large device deployments, the U6+ delivers superior performance and seamless integration with UniFi’s powerful network management system.

Product Features

WiFi 6 Technology for Faster and More Reliable Performance

The UniFi U6+ is equipped with dual-band WiFi 6, providing higher speeds and improved efficiency. With 4 spatial streams, this AP ensures better data transmission and optimized network performance even in high-traffic areas.

Wide Coverage and High Device Capacity

With a coverage area of up to 140 m² (1,500 ft²), the U6+ ensures strong and consistent WiFi signals across your space. It supports 300+ connected devices simultaneously, making it perfect for businesses with high-density wireless users.

Power over Ethernet (PoE) for Easy Installation

The U6+ is powered via PoE, allowing power and data to be delivered over a single Ethernet cable. This feature simplifies deployment, reducing the need for extra wiring and providing flexible mounting options.

Gigabit Ethernet for High-Speed Connectivity

Featuring a GbE RJ45 uplink, the U6+ provides ultra-fast and stable wired connections, ensuring seamless data transfer and low-latency performance for critical applications.

Compact Ceiling-Mounted Design

The lightweight and sleek design allows for discreet ceiling or wall mounting, blending seamlessly into any office, retail, or hospitality environment.

Product Specifications

• Mechanical

  • Dimensions: Ø160 x 33 mm (Ø6.3 x 1.3″)
  • Weight: 338 g (0.75 lb) without mount, 413 g (0.91 lb) with mount
  • Enclosure: Polycarbonate (top), aluminum (bottom)
  • Mount: ABS, SGCC steel

• Hardware

  • Networking Interface: 1x Gigabit Ethernet RJ45 port
  • Power Method: PoE (44–57V DC)
  • Max. Power Consumption: 9W
  • Max. TX Power: 23 dBm (2.4 GHz & 5 GHz)
  • MIMO: 2×2 (2.4 GHz), 2×2 (5 GHz)
  • Throughput Rate: 573.5 Mbps (2.4 GHz), 2402 Mbps (5 GHz)
  • Antenna Gain: 3 dBi (2.4 GHz), 5.4 dBi (5 GHz)
  • LED Indicator: White/Blue
  • Reset Button: Factory Reset

• Software & Wireless

  • WiFi Standards: 802.11a/b/g, WiFi 4, WiFi 5, WiFi 6
  • Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
  • BSSID: 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest Traffic Isolation: Supported
  • Concurrent Clients: 300+

• Environmental

  • Operating Temperature: -30 to 60° C (-22 to 140° F)
  • Operating Humidity: 5 to 95% (non-condensing)
  • Certifications: CE, FCC, IC

The Ubiquiti UniFi U6+ is the ideal access point for businesses looking for fast, reliable, and high-capacity wireless connectivity. Upgrade your network today with the U6+ for seamless performance and effortless management with the UniFi ecosystem.
