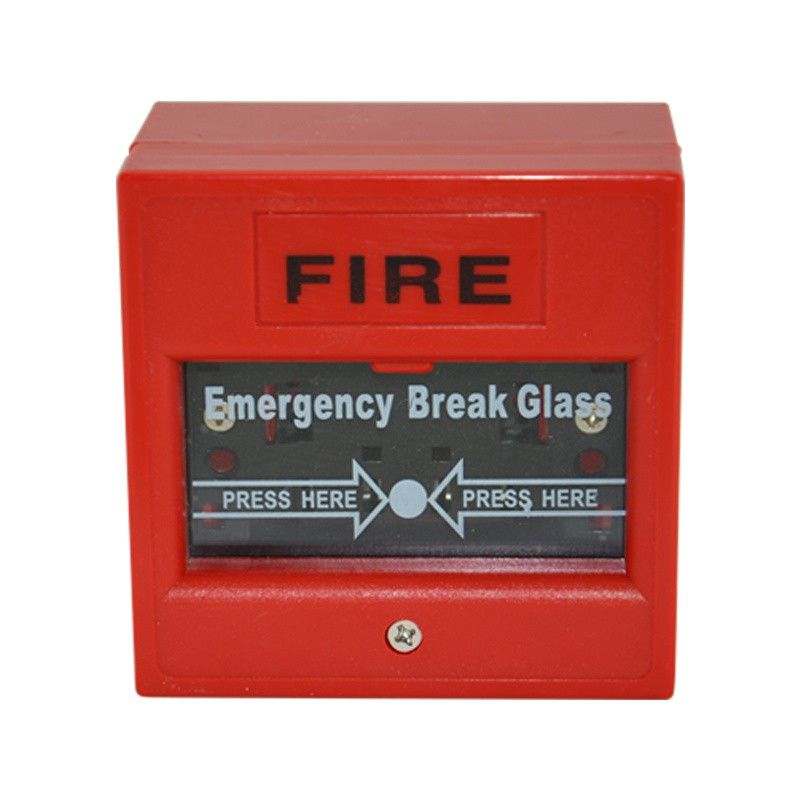

Red Fire Alarm Break Glass Manual Call Point with Fireproof Material

The Red Fire Alarm Break Glass Manual Call Point is an essential device for initiating emergency fire alarms manually. Built from high-grade fireproof materials, it is designed to function reliably under extreme conditions. This unit is commonly installed in commercial buildings, schools, hospitals, factories, and public spaces where fast manual activation of the alarm system is required. Its clear, break-glass interface ensures intuitive use in high-stress emergencies, making it a crucial component of any fire protection system.

Product Features

Emergency Manual Activation

Allows immediate activation of a fire alarm system by simply breaking the glass. This provides fast and effective warning to building occupants during fire incidents.

Durable Fireproof Construction

Manufactured from fire-resistant plastic to ensure reliable operation even in high-heat or flame-exposed environments, enhancing system resilience.

Dual Installation Modes

Supports both one-way (single pole) and two-way (double pole) circuit installations, providing flexibility for various fire alarm system configurations.

Transparent Protective Cover (Optional)

Optional clear cover prevents accidental activation while still allowing visibility and easy access during actual emergencies.

Multiple Color Variants

Although red is standard for fire alarm systems, the unit is also available in blue, yellow, green, and white for custom system requirements or alternative signaling uses.

Tool-Operated Test Function

Built-in test function using a special tool enables easy routine system checks without needing to break the glass, reducing maintenance effort and cost.

Quick and Easy Installation

Quick-connect terminals allow fast wiring and setup. Compatible with cables up to 2.5 mm², making it suitable for a wide range of alarm system installations.

Product Specifications

• Material: Fire-resistant thermoplastic
• Standard Color: Red (also available in blue, yellow, white, green)
• Activation Method: Manual break-glass
• Installation Type: Single pole or double pole (one-way or two-way)
• Terminal Capacity: Up to 2.5 mm² cable
• Dimensions: 87 x 87 x 51 mm (Length x Width x Height)
• Net Weight: 160 grams
• Optional Accessory: Transparent anti-tamper cover
• Maintenance: Test facility enabled with a dedicated tool
• Use Cases: Commercial properties, schools, industrial buildings, hospitals, public institutions
