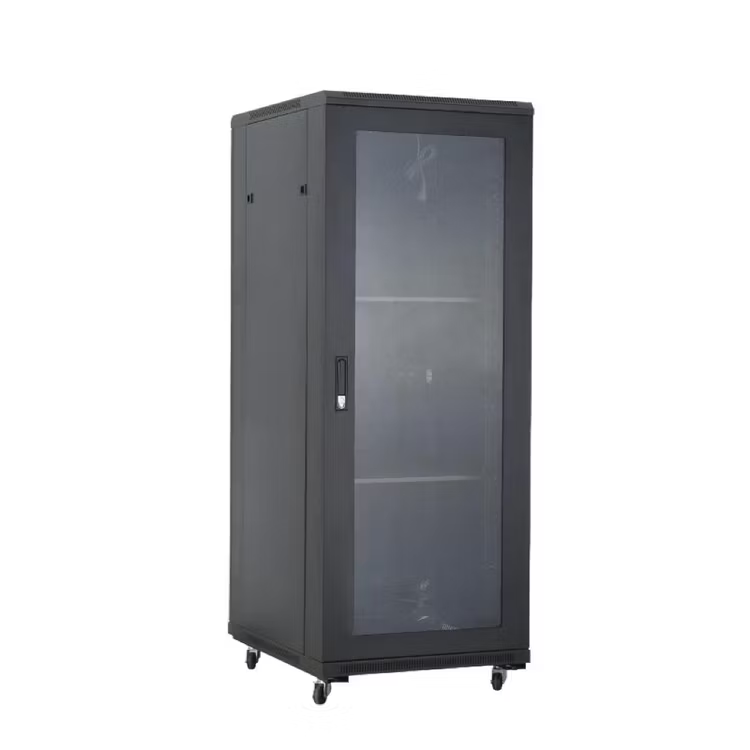

42U Data Cabinet 600 x 600mm Floor Standing with Glass Door

The 42U 600 x 600mm floor-standing data cabinet is a premium solution for housing critical networking and server equipment. Engineered to support all industry-standard 19-inch rack-mounted hardware, this cabinet is compatible with leading IT brands and is ideal for data centers, telecom rooms, and network hubs. Its modular design maximizes internal vertical space, while integrated ventilation and cable management enhance performance and usability.

Product Features

Heavy-Duty Steel Construction

Manufactured using cold-rolled steel for superior durability, strength, and load-bearing capacity. Designed to withstand the demands of modern networking environments.

19-Inch Rack Compatibility

Fully compatible with all 19-inch rack-mount devices including servers, patch panels, network switches, and UPS systems. Adjustable front and rear profiles allow flexible equipment positioning.

Lockable Tempered Glass Front Door

Features a steel-framed toughened glass front door that opens over 180 degrees. The door is lockable and reversible, offering easy access and enhanced visibility of installed equipment.

Lockable Rear and Side Panels

Removable rear and side doors provide complete access for equipment installation and maintenance. All panels are lockable for added security.

Efficient Cooling and Ventilation

Comes with four top-mounted cooling fans and ventilation holes in the roof for effective heat dissipation. Additional fan trays can be installed as needed.

Integrated 6-Way PDU

Supplied with a 6-way power distribution unit to deliver reliable power to your installed devices.

Two Equipment Trays Included

Comes with two internal trays for supporting auxiliary equipment or partitioning inside the cabinet.

Flexible Cable Management

Removable rear backplate and top/bottom cable entry points simplify routing and organizing cabling infrastructure.

Adjustable Mounting Profiles

Front and rear mounting rails are depth-adjustable, allowing for maximum use of internal space to accommodate various equipment depths.

Floor Standing Design

Supplied assembled as standard for quick deployment, with an optional flat-pack format available for compact delivery. Compatible with heavy-duty castors and leveling feet.

Product Specifications

• Width: 600mm
• Depth: 600mm
• Mounting Height: 42U
• Construction Material: Cold rolled steel
• Front Door: Lockable steel-framed toughened glass, 180° opening, reversible
• Rear Door: Lockable perforated or solid steel (configurable)
• Side Panels: Lockable and removable steel side doors
• Cooling System: 4x small cooling fans (top-mounted), roof ventilation
• Power Distribution: 6-way PDU included
• Internal Trays: 2x trays for extra equipment partitioning
• Cable Access: Removable rear cable plate, top and bottom cable entry
• Mounting Profiles: Adjustable front and rear 19” rails
• Finish: Black RAL9005 powder-coated smooth paint
• Assembly: Delivered assembled (flat-packed optional)
• Optional Accessories:
  • Roof or rack-mount fan trays
  • Telescopic or fixed shelves
  • Cable trays
  • Heavy-duty castors and leveling feet
  • Earth bonding kits
  • Baying kits
  • Plinth kits
