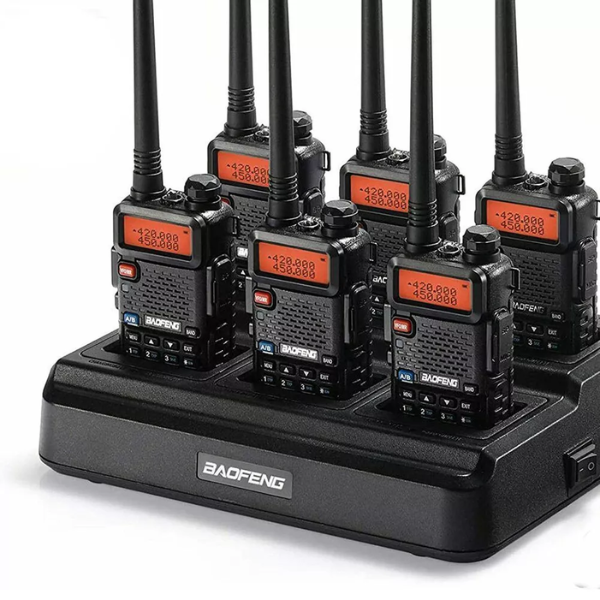

Baofeng UV-5R 5km Range Walkie Talkie

The Baofeng UV-5R 5km Range Walkie Talkie is a compact, dual-band two-way radio designed for reliable communication in professional, outdoor, and recreational settings. Supporting both VHF (136–174 MHz) and UHF (400–520 MHz) frequencies, it delivers clear transmission over distances up to 5 km under normal conditions. With 128 programmable channels, CTCSS/DCS privacy codes, and versatile features like VOX hands-free operation, LED flashlight, and emergency alarm, the UV-5R ensures you stay connected in any environment, from construction sites to hiking trails.

Product Features

Dual-Band Frequency Support

The UV-5R operates on both VHF and UHF bands, allowing flexible communication options for different environments and ensuring clearer signal reception.

Adjustable Power Output

Select between 1 W low power for energy-efficient operation or 4–5 W high power for extended range and stronger signal penetration.

Programmable Channels and Privacy Codes

Store up to 128 channels with 50 CTCSS and 104 DCS privacy codes to organize communications and reduce interference from other users.

Long-Lasting 1800 mAh Battery

Equipped with a 7.4 V Li-ion battery, the UV-5R provides up to ~12 hours of use per charge and includes a desktop charger for convenient recharging.

Dual-Band Display with Backlit LCD

Monitor both VHF and UHF frequencies simultaneously on a clear, backlit LCD screen with dual standby functionality.

Clear Audio and Reliable Receiver

Features a 1 W loudspeaker and built-in microphone for clear voice transmission. The receiver sensitivity is ≤ 0.2 µV at 12 dB SINAD for reliable reception.

Removable Antenna with Upgrade Options

The SMA-Female antenna supports upgrades to extend range beyond standard operation, making it adaptable to various terrains.

VOX Hands-Free and Emergency Features

Voice-activated transmission, emergency alarm, LED flashlight, keypad lock, time-out timer, and busy channel lockout enhance usability, safety, and operational convenience.

Compact and Durable Design

Measuring approximately 110 × 58 × 32 mm and weighing 210–240 g with battery and antenna, the UV-5R is lightweight, portable, and built for everyday professional or outdoor use.

Product Specifications

• Frequency Range: VHF 136–174 MHz / UHF 400–520 MHz
• Output Power: VHF up to 5 W, UHF up to 4 W, Low power 1 W
• Channel Capacity: 128 programmable channels
• Privacy Codes: 50 CTCSS and 104 DCS
• Battery: 1800 mAh Li-ion, 7.4 V, up to ~12 hours use
• Charger: Desktop charger included
• Audio Output: ~1 W loudspeaker
• Receiver Sensitivity: ≤ 0.2 µV at 12 dB SINAD
• Modulation: FM (Wide/Narrow)
• Max Deviation: ±5 kHz (wide), ±2.5 kHz (narrow)
• Antenna: SMA-Female, 50 Ω impedance, removable
• Dimensions: 110 × 58 × 32 mm
• Weight: ~210–240 g with battery and antenna
• Functions: Dual-band display, dual standby, VOX, LED flashlight, emergency alarm, keypad lock, time-out timer, busy channel lockout
• Operating Temperature: –20 °C to +60 °C
• Range: Up to 5 km standard, 8+ km in open terrain or elevated locations
