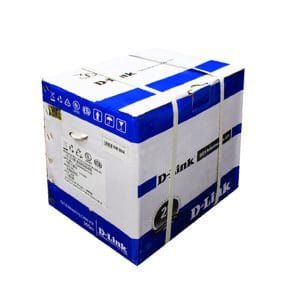

Cat6E D-Link UTP Ethernet Cables. Pure Copper

D-Link  Ethernet Cables provide an easier and cost-effective way to create a Local Area Network that supports  Gigabit Ethernet (1000Base-T) standard. The Ethernet Cables are designed to operate at a bandwidth of up to 250 Mhz.

 Product Specifications and technical details

• Category 6 UTP Solid cable Color: Cool Gray 10C
• Model- Brand : D Link : NCB-C6UGRYR-305
• Full box cable Length type: 305M ( 1000ft)
• Specific Heat-resistant: 75ohm
• Cat 6 dlink cable Conductor : 23 AWG(0.574 / 0.007mm) Bare Copper
• Insulation Material: HD-PE

Technical Details

• Capacitance : 5.6nF/100m nominal
• Impedance : 100Ω/15%,1-600MHz
• Nominal Velocity of Propagation: 69%
• Operating Temperature : -20℃-60℃(-4℉-140℉)
• Storage Temperature : -20℃-80℃(-4℉-176℉) “

Certifications

• “Certified for UL 444 (for Copper conductor)
• UL 758/ Style 2835 (for Copper, CCA, CCAM & CCS conductors)
• UL 1581 (Test standard)
• TIA/EIA-568B.2 (Test standard).
• FCC Part 68.500 or IEC 60603-7-4 (for Modular connector)

Application

• Structured Cabling infrastructure, Gigabit, and fast speeds and  “10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3)
• 100VG-AnyLAN (IEEE802.12)
• 550 MHz Broadband Video
• Voice, T1, ISDN Cabling
• 155/ 622 Mbps ATM
• For Power over Ethernet (POE)

The cable is standard and  A cost Effective solution in Kenya for creating a standard   Gigabit 1000Base-T and 1000Base-Tx  Compliant network Computer Networking, Internet Infrastructure, and all other structured Cabling Works.  And, other applications like Digital CCTV Cabling, IP Telephony Networking, and Much More

• The Cable is tested  to the 250MHz frequency range and designed  and standard packing will
• 305m easy pull-out boxes.
• High pair balance for  excellent EMC (Electromagnetic Compatibility)
