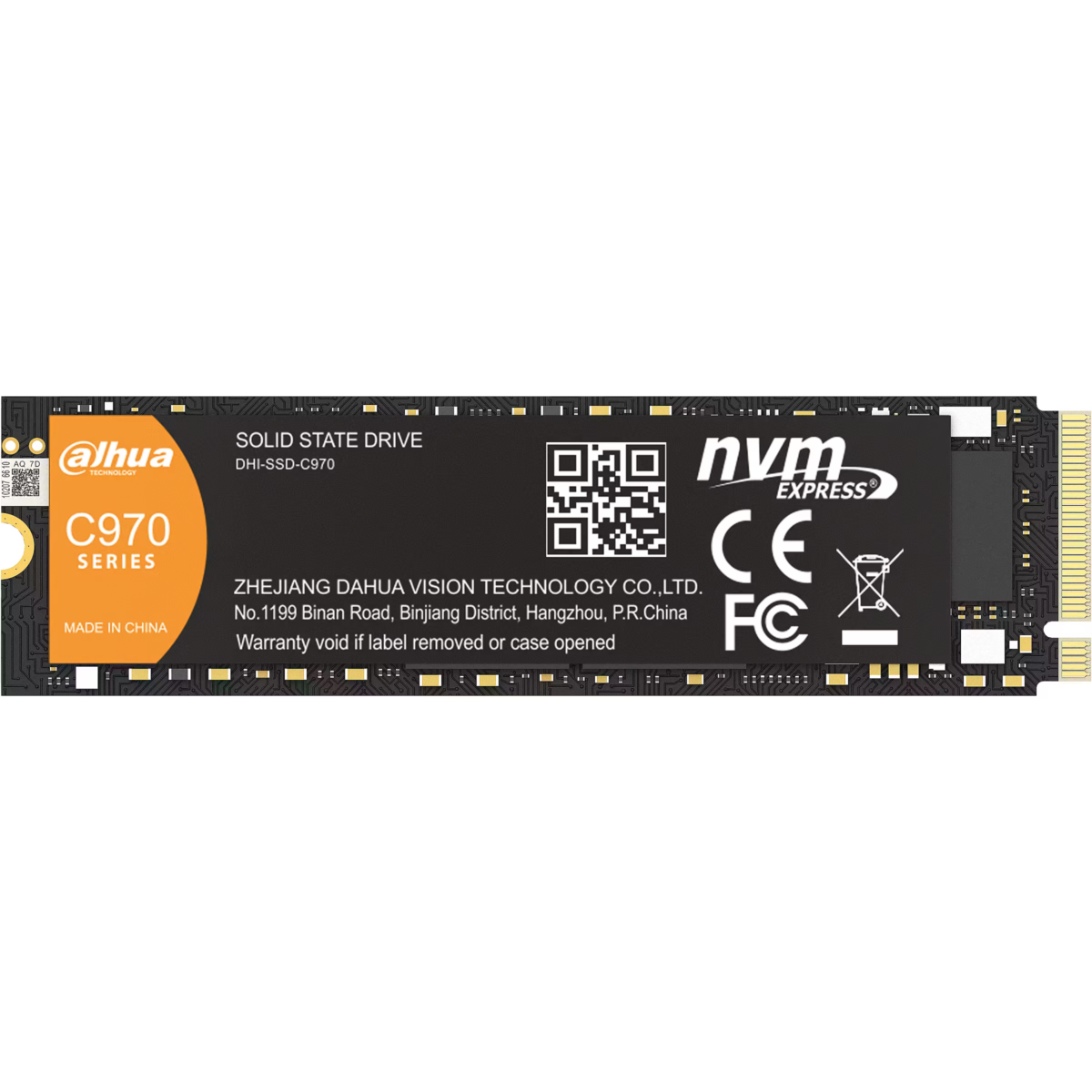

Dahua 512GB NVMe M.2 PCIe Gen 4×4 2280 SSD PLUS (DHI-SSD-C970N512G PLUS)

The Dahua DHI-SSD-C970N512G PLUS is a high-performance 512GB NVMe M.2 PCIe Gen 4×4 solid-state drive engineered for extreme computing tasks, including gaming, video editing, and professional content creation. Leveraging cutting-edge PCIe Gen 4.0 x4 technology, it delivers blazing sequential read speeds of up to 7,200 MB/s and write speeds up to 6,400 MB/s, providing ultra-fast system boot times, near-instant application launches, and rapid file transfers. Built with high-quality 3D NAND flash memory and advanced 4K LDPC error correction, this SSD offers exceptional durability, reliability, and energy efficiency, making it an ideal storage solution for modern desktops, laptops, mini-PCs, and workstations.

Product Features

Extreme Performance

The PCIe Gen 4.0 x4 interface offers double the bandwidth of Gen 3.0 drives, resulting in incredibly fast sequential read/write speeds for high-demand workloads.

High-Quality 3D NAND Flash

Equipped with 3D NAND (likely TLC), the drive delivers consistent speed, enhanced endurance, and long-term reliability for demanding tasks.

NVMe 1.4 Protocol

Optimized with the latest NVMe protocol, the SSD reduces latency and improves overall system responsiveness, ensuring a smoother user experience.

4K LDPC Error Correction

Low-Density Parity-Check technology ensures data integrity and extends the lifespan of the SSD by effectively managing potential data errors.

Advanced Thermal Management

Integrated SLC cache and intelligent temperature control maintain stable performance under heavy workloads, preventing thermal throttling during extended use.

Durability and Reliability

With no moving parts, the drive is highly resistant to shocks (1500G / 0.5 ms) and vibrations (10–200 Hz, 0.5G), providing reliable operation for both desktop and portable systems.

Energy Efficient Design

Optimized for low power consumption, reducing heat generation and extending battery life in laptops and portable devices.

Broad Compatibility

The standard M.2 2280 form factor supports a wide range of modern desktops, laptops, mini-PCs, and workstations with PCIe Gen 4 NVMe slots.

Product Specifications

• Model: Dahua DHI-SSD-C970N512G PLUS
• Capacity: 512 GB
• Form Factor: M.2 2280 (80 × 22 × 2.25 mm)
• Interface: PCIe Gen 4.0 x4, NVMe 1.4 Protocol
• NAND Flash Type: High-quality 3D NAND (likely TLC)
• Sequential Read Speed: Up to 7,200 MB/s
• Sequential Write Speed: Up to 6,400 MB/s
• MTBF (Mean Time Between Failures): 1,500,000 – 1,800,000 hours
• Total Bytes Written (TBW): 500–650 TB
• Power Consumption: Max 3,550 mW (active), 630 mW (idle)
• Operating Temperature: 0°C to 70°C (+32°F to +158°F)
• Storage Temperature: –40°C to 85°C (–40°F to +185°F)
• Shock Resistance: 1,500 G / 0.5 ms
• Vibration Resistance: 10–200 Hz, 0.5 G
• Weight: Max. 8 g
• Warranty: Typically 3-year limited warranty (or limited by TBW)
• Features: S.M.A.R.T support, TRIM support, Garbage Collection, 4K LDPC Error Correction, SLC Cache, Advanced Thermal Management
