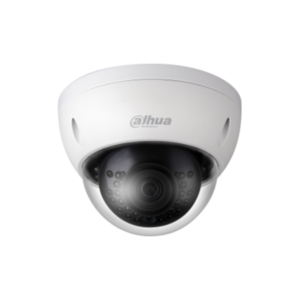

Dahua DH-IPC-HDBW1230EP-S4 2MP IP Dome Camera

The Dahua DH-IPC-HDBW1230EP-S4 is a high-performance 2MP IP dome camera that provides exceptional video surveillance with advanced features such as intelligent detection, high-definition resolution, and robust cybersecurity. This compact dome camera is designed for both indoor and outdoor use, offering a versatile solution for home, business, or industrial security. Equipped with a high-quality CMOS sensor and advanced video compression, it ensures clear and efficient recording, while its durable design allows it to withstand harsh environments.

Product Features

2MP High-Definition Imaging

With a 2MP resolution, this camera delivers sharp and clear video for effective monitoring and playback. Perfect for capturing detailed images in a wide range of lighting conditions.

Wide Viewing Angle

The camera features a 3.6mm fixed lens, providing a wide field of view, ideal for monitoring large areas such as corridors, entrances, or parking lots.

Intelligent Motion Detection

Dahua’s intelligent motion detection technology helps minimize false alarms by accurately detecting moving objects. The camera can distinguish between relevant and irrelevant motion triggers.

Smart Video Compression

Supporting H.265+, H.265, and H.264 video compression formats, the DH-IPC-HDBW1230EP-S4 offers high-quality video with reduced storage and bandwidth requirements, improving efficiency and reducing costs.

IR Night Vision

The camera is equipped with infrared (IR) LEDs for clear visibility in low-light conditions, providing effective surveillance 24/7, even in total darkness.

Wide Dynamic Range (WDR)

Dahua’s WDR technology ensures that the camera can handle challenging lighting conditions, providing balanced exposure and preserving detail in both bright and dark areas of the scene.

IP67 Weatherproof Rating

The IP67-rated weatherproof design ensures that the camera is protected from dust and water, making it suitable for both indoor and outdoor installations in various environmental conditions.

Two-Way Audio

The built-in microphone allows for real-time audio capture alongside video, enabling more comprehensive surveillance and communication.

Cybersecurity Protection

The DH-IPC-HDBW1230EP-S4 employs advanced security measures including encrypted transmission and secure access protocols, safeguarding your surveillance network from cyber threats.

Easy Installation

With Power over Ethernet (PoE) support, the camera is easy to install with a single cable for both power and data transmission, simplifying setup and reducing installation costs.

Product Specifications

Camera

• Image Sensor : 1/2.7″ 2Megapixel progressive CMOS
• Effective Pixels: 1920 (H) × 1080 (V)
• ROM: 16 MB
• RAM: 64 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
• Min. Illumination : 0.01 Lux @F2.0
• IR Distance: 30 m (98.4 ft)
• IR On/Off Control: Auto/Manual
• IR LEDs Number : 3
• Pan/Tilt/Rotation Range : Horizontal: 0°–355° Vertical: 0°–65° Rotation: 0°–355°

Lens

• Lens Type: Fixed-focal
• Mount Type: M12
• Focal Length: 2.8 mm 3.6 mm
• Max. Aperture: F2.0 F2.0
• Field of View : 2.8 mm: Horizontal: 105° Vertical: 57° Diagonal: 125° 3.6 mm: Horizontal: 87° Vertical: 47° Diagonal: 104°
• Iris Type: Fixed aperture
• Close Focus Distance: 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.9 m (3.0 ft)

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG
• Smart Codec: Yes
• Video Frame Rate: Main Stream; 1920 × 1080 (1 fps–25/30 fps) Sub stream; 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
• Stream Capability: 2 streams
• Resolution : 1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240)
• Bit Rate Control :CBR/VBR
• Video Bit Rate: H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6400 Kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: DWDR
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D DNR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest(RoI): Yes (4 areas)
• Smart IR: Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 1080p resolution.)
• Mirror: Yes
• Privacy Masking: 4 areas

Network

• Network: RJ-45 (10/100 Base-T)
• Protocol : IPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
• Interoperability: ONVIF (Profile S); CGI; P2P; Genetec
• User/Host: 20
• Edge Storage: FTP; Dahua Cloud
• Browser: IE Chrome Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Phone: IOS; Android

Certifications

• Certifications : CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Power

• Power Supply : 12V DC/PoE (802.3af)
• Power Consumption: < 5W

Environment

• Operating Conditions : -40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
• Storage Temperature : -40°C to +60°C (-40°F to +140°F)
• Ingress Protection: IP67; IK10

Structure

• Casing: Metal
• Dimensions : 81 mm × Φ109.9 mm (3.2″ × Φ4.3″)
• Net Weight: 0.35 kg (0.7 lb)
• Gross Weight: 0.50 kg (1.1 lb)
