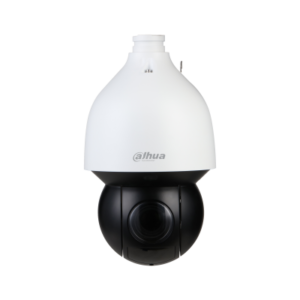

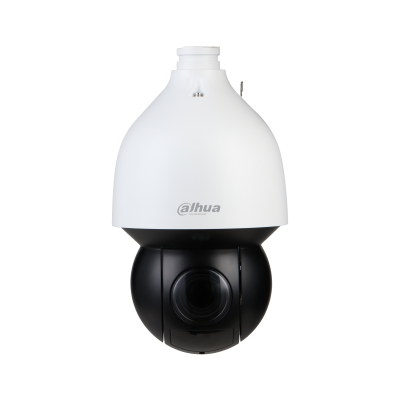

Dahua DH-SD5A445XB-HNR 4MP IP PTZ Camera with 45x Optical Zoom

The Dahua DH-SD5A445XB-HNR is a high-performance 4MP IP PTZ camera, designed for professional surveillance applications. This camera is equipped with a powerful 45x optical zoom lens, advanced artificial intelligence (AI) features, and excellent low-light performance, making it an ideal choice for monitoring expansive areas such as city centers, transportation hubs, and large industrial facilities. Its robust design ensures reliable performance in challenging environmental conditions.

Product Features

45x Optical Zoom

The camera’s powerful 45x optical zoom lens allows for precise long-range surveillance, capturing clear details even at great distances. The focal length ranges from 3.95 mm to 177.7 mm, providing exceptional flexibility for various surveillance scenarios.

Advanced AI Capabilities

Built with Dahua’s WizMind technology, this camera supports advanced analytics such as Auto Tracking, Face Recognition, and Perimeter Protection. These features enable intelligent detection and tracking of people and vehicles, significantly reducing false alarms caused by environmental factors.

Starlight Technology

The DH-SD5A445XB-HNR is equipped with Starlight technology, enabling it to capture detailed color images in extremely low-light conditions. It ensures high-quality video even at nighttime or in dimly lit environments.

Long-Range IR Illumination

This camera features IR LEDs with an effective range of up to 250 meters (820 feet), ensuring clear nighttime monitoring for large areas.

Rugged Design

The camera is built to withstand harsh environments, with an IP67-rated weatherproof and IK10-rated vandal-resistant housing. This makes it ideal for outdoor installations where durability is essential.

Product Specifications

General Features

• Image Sensor: 1/1.8″ 4MP CMOS
• Resolution: 4MP (2560 × 1440)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Frame Rate: 50/60 fps at 4MP resolution

Optical and PTZ Capabilities

• Lens: 3.95 mm–177.7 mm
• Field of View: Horizontal 65.8°–2°; Vertical 39°–1.1°
• Pan/Tilt Range: Pan 360° endless, Tilt -15° to 90°
• Presets: 300 positions
• Auto Tracking: Yes

Smart Features

• Face Recognition: Supports up to 12 face libraries with 10,000 face images
• IVS Analytics: Tripwire, Intrusion, and Object Abandon Detection
• SMD Plus: Smart Motion Detection for improved accuracy

Network and Storage

• Protocols: IPv4/IPv6, HTTP, HTTPS, FTP, RTSP, UDP, SMTP, and more
• Storage: MicroSD card support up to 512GB
• Power: PoE+ or 24V AC

Environmental and Physical Characteristics

• IR Range: Up to 250 meters
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Weatherproof: IP67-rated
• Vandal Resistant: IK10-rated
