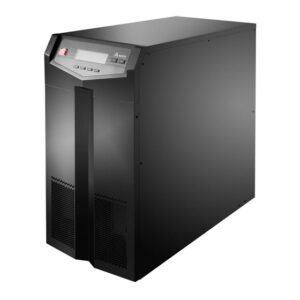

Delta Ultron Series HPH Integrated battery 40kVA 380/400/415V, 50/60Hz, inbuilt battery 2×40 – GES403HH33A035

The Delta Ultron Series HPH 40kVA/kW UPS (model GES403HH33A035) is a high-performance, double-conversion online uninterruptible power supply system with an integrated battery system, engineered to deliver reliable, continuous, and clean power to mission-critical applications. Designed for modern data centers, enterprise networks, industrial systems, and sensitive equipment, this UPS offers a fully integrated power protection solution with seamless battery backup and scalable parallel operation capabilities.

Product Features

True Online Double Conversion Architecture
Delivers isolated, high-quality power output, eliminating disturbances such as voltage fluctuations, harmonics, surges, and sags.

40kVA/kW High Power Capacity
Supports substantial equipment loads, ideal for medium-scale data centers, healthcare systems, telecom equipment, and industrial operations.

Integrated Battery System
Equipped with an internal battery bank (2×40 units), offering approximately 9.5 minutes of runtime at 70% load, ideal for bridging short outages or transitioning to backup generators.

High Efficiency Operation
Achieves up to 96% efficiency in online mode, reducing energy consumption and heat dissipation. Remote control mode enhances energy management up to 99%.

Advanced Overload Protection
Supports controlled shutdown under overload conditions to protect connected devices and maintain system integrity.

Scalable & Redundant
Supports parallel operation of up to 4 UPS units for redundancy or capacity expansion up to 480 kW.

Low Harmonic Distortion
Input THDi < 3% and output THDv < 1.5% (linear load) ensure cleaner power and reduced stress on upstream systems.

User-Friendly LCD Interface
Provides intuitive access to UPS status, event logs, and operational parameters for efficient local monitoring.

Smart Communication Capabilities
Multiple ports and interface options enable remote monitoring and seamless integration with network and building management systems.

Product Specifications

• Model: GES403HH33A035
• Execution: Floor-standing
• Application: Data centers, enterprise IT, industrial control, telecom

Electrical Characteristics

• Rated Power: 40 kVA / 40 kW
• Input Phase Configuration: 3-phase
• Output Phase Configuration: 3-phase

Input

• Rated Voltage: 380/220V, 400/230V, 415/240V
• Voltage Range:
  • Full load: -20% to +20%
  • 70% load: -40% to +20%
• Input Frequency: 40–70 Hz
• Input Power Factor: > 0.99 (at full load)
• Current Harmonic Distortion (THDi): < 3%

Output

• Voltage: 380/220V, 400/230V, 415/240V
• Voltage Regulation: ±1%
• Frequency: 50/60 Hz ±0.05 Hz
• Voltage Harmonic Distortion (THDv): < 1.5% (linear load)
• Output Power Factor: 1.0
• Overload Capacity:
  • ≤105%: Continuous
  • 106–125%: 10 minutes
  • 126–150%: 1 minute
  • 150%: 1 second

Battery

• Type: Maintenance-free VRLA / Cylindrical / Ni-Cd
• Configuration: Inbuilt, 2×40 batteries
• Runtime: Approx. 9.5 minutes at 70% load
• Charge Current: 9 A

Efficiency

• Online Mode: Up to 96% (certified by TÜV)
• Remote Control Efficiency: Up to 99%

Communication Interfaces

• Standard Ports:
  • 1 x SMART slot
  • 1 x MINI slot
  • 2 x Parallel ports
  • 1 x RS-232
  • 1 x REPO port
  • 1 x Charger detection port
  • 2 x Dry contact inputs
  • 6 x Dry contact outputs
