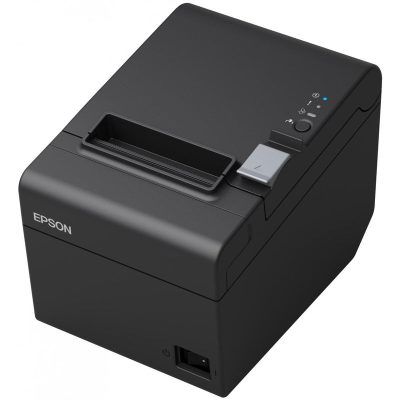

Epson TM-T20III Thermal Receipt Printer

The Epson TM-T20III thermal receipt printer is a cost-effective, high-performance solution tailored for retail and hospitality businesses. Designed for compatibility with both traditional POS and mPOS systems, it offers flexible connectivity options including USB, Serial, and Ethernet. With fast printing speeds of up to 250 mm/sec, long-lasting reliability, and advanced paper-saving features, the TM-T20III delivers exceptional value and operational efficiency.

Product Features

Affordable and Efficient

The TM-T20III is an entry-level POS receipt printer that supports 80mm paper width and integrates Automatic Paper Reduction to minimize operating costs. It reduces top and bottom margins and line feed width while optimizing barcode height, helping businesses save paper without compromising receipt quality.

High Reliability

Engineered for demanding environments, this printer offers a mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines. Its auto-cutter is rated for 1.5 million cuts, ensuring dependable performance over extended use.

Flexible Connectivity

Equipped with a built-in USB interface, users can choose between models that also include either Serial or Ethernet ports. This adaptability allows seamless integration with a variety of POS systems, making it a future-proof investment.

Fast Printing

With a print speed of 250 mm/sec, the TM-T20III minimizes transaction times, reduces queue length, and enhances customer satisfaction, especially in busy retail or food service environments.

Product Specifications

• Print Method: Thermal line printing

• Print Speed: Up to 250 mm/sec

• Resolution: 203 x 203 DPI

• Character Set: 95 Alphanumeric, 18 International sets, 128 x 43 Graphic

• Character Per Inch: 22.6 cpi / 16.9 cpi

• Column Capacity (80mm): 48 / 64

• Paper Width: 79.5 ± 0.5 mm and 57.5 ± 0.5 mm

• Paper Diameter: Up to 83.0 mm

• Interfaces: USB 2.0 Type B, RS-232, Drawer kick-out

• Data Buffer: 4 KB or 45 Bytes

• Power Supply: AC adapter C1 (included)

• Power Consumption: 0.1 A (standby), 1.8 A (mean)

• Operating Voltage: 24 V

• Dimensions (W x D x H): 140 x 199 x 146 mm

• Weight: 1.7 kg

• Installation Options: Horizontal, vertical, or wall-mounted

• Noise Level: 55 dB (operation)

• Operating Temperature: 5°C to 45°C

• Storage Temperature: -10°C to 50°C

• Operating Humidity: 10% – 90% (non-condensing)

• Storage Humidity: 10% – 90%

• MCBF: 60 million lines

• MTBF: 360,000 hours

• Auto Cutter Life: 1.5 million cuts

• Print Head Life: 150 km or 150 million pulses

• Color: Black (EBCK)

• EMC Standards: FCC Class A, CE, EN55022 Class A

• Safety Standards: UL, CSA, TÜV

• Cutter Type: Partial cut

• Sensors: Paper end, paper near end, roll cover open

• Paper Saving Function: Yes

What’s in the Box

• Epson TM-T20III Printer

• AC Adapter (C1)

• EURO AC Cable

• USB Cable

• Paper Roll Spacer

• Power Switch Cover

• Roll Paper

• Wall Hanging Bracket

• Rubber Feet

• Setup Guide

• CD Manual

• Warranty Document

Warranty: 24 months (Carry-in)
