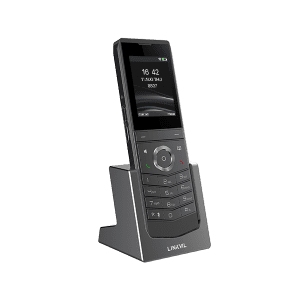

Fanvil W611W Portable Wi-Fi Phone

Fanvil W611W Portable Wi-Fi Phone

The Fanvil Linkvil W611W is a portable, elegant IP phone designed for mobile communication applications. Certified to IP67 standards, the W611W is highly waterproof, dustproof, and can be dropped safely from a 1.8-meter height. It has excellent performance in different environments with humidity and dust. The W611W integrates Wi-Fi 6, bringing a superb wireless communication experience. Moreover, it integrates Bluetooth 5.0 for pairing with headsets and mobile devices.

Installed with a rechargeable 1900mAh battery, the W611W is ready for 9 hours of talk time or 200 hours of standby time. The W611W is widely used in various wireless scenarios such as enterprises, shopping malls, residential areas, hotels, and warehouses, providing users with a high-quality mobile communication experience.

Product Features

Rugged IP67 Protection

Waterproof, dustproof, and drop-resistant to 1.8 m, it ensures uninterrupted performance in demanding work conditions

Dual‑Band Wi‑Fi 6 with Roaming

Supports 2.4 GHz and 5 GHz Wi‑Fi (802.11 a/b/g/n/ac/ax) and IEEE 802.11k/v/r roaming for smooth handover across access points

Bluetooth 5.0 Support

Pair with headsets for hands-free calls via Bluetooth 5.0, plus a 3.5 mm jack for wired headsets

Intuitive 2.4″ Colour Display

The 240 × 320 pixel screen offers clear call data, menu navigation, lighting-adaptive backlight, and proximity sensor functionality

Push‑to‑Talk (PTT) and Vibration Alerts

One-touch PTT key enables instant voice communication; vibration alerts ensure silent notification options

Long Battery Runtime

Equipped with a 1 900 mAh Li-ion battery providing roughly 9 hours of talk time and up to 200 hours standby on a single charge

SIP Protocol with 3‑Way Conferencing

Supports 4 SIP accounts, HD Opus/G.722 codecs, SIP calling features, and built-in 3-way conference functionality

Product Specifications

Generic

• 2.4-inch 240*320 color high-definition LCD display
• 4 SIP lines
• Caller ID
• Handset/Hands-free/Headset Mode• Support custom DSS keys
• HD Voice
• Belt clip
• Desktop charging base
• Standard type-c interface
• Rechargeable Lithium Battery
• Support Wi-Fi 6
• Support Bluetooth 5.0
• Support multi-language: English/Chinese/German/French/Italian/Portuguese/Russian/Spanish

Phone Features

• Network time synchronization
• Local contacts
• Remote Phonebook (XML/LDAP, 1000 entries)
• Multi-language optional
• Call logs
• Blocked List/Allowed List
• Screen saver
• Personalized ringtone settings
• Screen backlight adjustment
• Memorandum
• SMS service
• Voicemail（MWI）
• Menu encryption settings
• Keypad lock/ backlight adjustment
• Volume adjustment

Call Features

• Auto-Answering
• Call out/Answer/Reject
• Call waiting/Switch
• Call forwarding
• Speed Dial
• Intercom
• Anonymous calls
• 3-way Conference
• Restrict outgoing calls
• IP direct dial
• Speed Dial
• Emergency call
• Caller ID Display
• Inquiry (dialing, incoming and outgoing calls)
• Do-Not-Disturb
• PTT one-key call
• Self-adaptive light-sensing screen off (during a call on the handset)

Audio

• Narrowband Codec: G.711a/u, G.729AB,iLBC
• Wideband Codec: G.722, Opus
• Acoustic Echo Cancellation (AEC)- maximum 96ms echo delay cancellation
• Voice Activity Detection（VAD）/ Comfort Noise Generation（CNG）/ Background Noise Estimation (BNE)
• Packet Loss Concealment
• Dynamic adaptive jitter cache up to 300ms
• DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIPINFO

Network

• Built-in Wi-Fi, support 802.11 a/b/g/n/ac/ax protocol: 2.4GHz IEEE 802.11 b/g/n/ax 5GHz IEEE 802.11a/n/ac/ax Encryption：WPA /WPA2-PSK，802.1XEAP
• Built-in Bluetooth 5.0 module

Power Management

• Reminder when charging
• Full reminder
• Low battery prompt
• After abnormal shutdown, the charging will automatically star
• Real-time statistics/display of system power

Protocols

• RTP/RTCP/SRTP
• STUN
• HCP
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCPOPT66/SIPPnP/TR-069
• Web management interface
• Web-based Packet-dump
• Configuration export/import
• Firmware upgrade
• Syslog

Physical Specifications

• Protection class: IP67
• Drop height: 1.8m
• Shell material: plastic shell, two-color injection molding
• Charging Base x1
• Belt Clip x1
• Rechargeable Battery x1 1900mAh
• DC input: 5V/2A
• Charging port: Type-C
• Headphone jack: 3.5mm standard jack
• Installation method: Belt Clip /Desktop
• Operating temperature: 0℃~ 45℃
• Storage temperature:-20℃~ 60℃
• Relative humidity:10~95%
• Product size:160*53*16mm
• Product weight：:156g
• Certificates： CE/FCC/UKCA/RoHS/SRRC
• Box size: 200*117*103mm
• Outer box size: 437*254*220mm ((8PCS)
