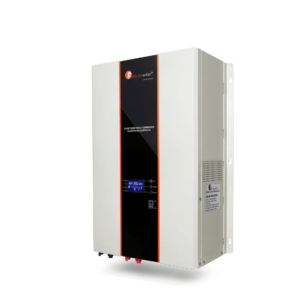

Felicity Solar Hybrid Inverter (Low Frequency) 10KVA 48V Inverter (8KW) with Built-in 120A MPPT, Expandable up to 6 Units in Parallel for 3-Phase Systems (IVPM10048-10000VA)

The Felicity Solar Hybrid Inverter 10KVA 48V (IVPM10048-10000VA) is a high-capacity low-frequency inverter designed to provide stable, reliable, and scalable power for large residential, commercial, and industrial solar systems. With 8KW continuous output power and a 120A built-in MPPT solar charge controller, this inverter is ideal for users who need to manage substantial energy loads while also benefiting from high-efficiency solar power.

One of the standout features of this inverter is its ability to expand up to 6 units in parallel, allowing for the creation of a 3-phase system for even larger applications. This makes the IVPM10048-10000VA a highly versatile solution for powering larger properties, businesses, and industrial operations where high-performance, uninterrupted power is essential. With MPPT technology built in, the system maximizes the charging efficiency of your solar array, ensuring that you capture the most energy even in fluctuating sunlight conditions.

Designed for off-grid, hybrid, and backup power configurations, the IVPM10048 ensures maximum energy independence, scalability, and reliability. Whether you’re powering a large commercial establishment or creating a 3-phase solar system, this inverter offers the performance and flexibility you need.

Product Features

Low Frequency Hybrid Design

The Felicity Solar Hybrid Inverter uses low-frequency hybrid technology, which provides excellent surge handling capacity and high durability, making it perfect for heavy-duty applications. Low-frequency inverters are known for their robustness and ability to efficiently manage larger loads and power surges. This design enables the IVPM10048 to handle 8KW continuous power and support demanding appliances, machinery, and equipment reliably over the long term.

8KW Continuous Power Output

The IVPM10048 delivers 8KW of continuous output power (10KVA peak), providing a steady power supply for homes, businesses, and industrial systems. Whether you’re running large appliances like air conditioners, refrigerators, computers, or industrial equipment, this inverter can meet your needs. It is ideal for situations where high power output is required without compromising on reliability or system efficiency.

Built-in 120A MPPT Solar Charge Controller

With a 120A built-in MPPT solar charge controller, the Felicity Solar Hybrid Inverter maximizes the power harvested from your solar panels. MPPT technology ensures that your solar array operates at the optimal power point, adjusting the voltage to extract the maximum amount of energy throughout the day. This advanced feature significantly boosts the overall system efficiency, even under cloudy or variable sunlight conditions, and improves the charging speed of the battery bank.

Expandable Up to 6 Units in Parallel for 3-Phase Systems

The IVPM10048 is designed to be expandable up to 6 units in parallel, allowing users to scale up their systems as needed. This makes it possible to build a 3-phase system, which is essential for larger, high-demand commercial or industrial applications. By linking multiple inverters, users can increase power output and efficiency, making the system more adaptable to growing energy needs or increasing load requirements.

Wide Battery Voltage Range (48V)

This inverter operates with a 48V DC battery configuration, which strikes a balance between efficient energy storage and system performance. The 48V input is ideal for mid- to large-scale solar systems and provides enough voltage to run high-power devices while ensuring a long-lasting, efficient battery life.

Intelligent Power Management

The IVPM10048 incorporates an intelligent power management system that ensures seamless integration of solar, battery, and grid power (if available). The inverter intelligently switches between these energy sources based on availability and priority, ensuring that you always have access to reliable power. By utilizing solar power when available and reserving grid or battery power for when solar output is insufficient, this system reduces dependency on the grid, helping to lower energy costs.

Advanced Safety and Protection Features

The Felicity Solar Hybrid Inverter is built with comprehensive protection mechanisms to ensure the safety of your system:

• Overload Protection: Automatically disconnects in case of an overload to protect the inverter and appliances.
• Short Circuit Protection: Shuts down the system in case of a short circuit to prevent damage to the inverter or other components.
• Over-temperature Protection: Reduces power output or shuts down the inverter if internal temperatures exceed safe limits.
• Reverse Polarity Protection: Prevents damage from incorrect battery or solar panel connections.
• Overvoltage/Undervoltage Protection: Ensures the inverter operates only within safe voltage ranges, protecting both the inverter and connected devices.

LCD Display for Real-Time Monitoring

The LCD display provides essential real-time system information, allowing users to monitor:

• Battery Voltage
• Solar Panel Voltage
• Output Power
• Charge Current
• System Status (normal, fault, etc.)

This easy-to-read interface ensures users can monitor the performance of the system, troubleshoot issues quickly, and make necessary adjustments to optimize energy production and storage.

Product Specifications

• Model: IVPM10048-10000VA
• Rated Power (Output): 8KW (10KVA peak)
• Input Voltage (Battery): 48V DC
• Output Voltage (AC): 230V ± 10% (AC)
• Inverter Type: Low-frequency Pure Sine Wave Hybrid Inverter
• Maximum PV Input Power: 10000W
• PV Input Voltage Range: 100V – 450V
• MPPT Efficiency: >98%
• Maximum PV Input Current: 120A
• Output Waveform: Pure Sine Wave
• Charging Mode: MPPT (Maximum Power Point Tracking)
• Solar Charge Controller: Built-in 120A MPPT
• Parallel Expansion: Can expand up to 6 units in parallel (supports 3-phase systems)
• Overload Protection: Yes (automatic shutdown in case of overload)
• Short Circuit Protection: Yes
• Over Temperature Protection: Yes (reduces charging or halts operation at high temperatures)
• Reverse Polarity Protection: Yes
• Overvoltage/Undervoltage Protection: Yes
• LCD Display: Yes, for real-time monitoring of system parameters
• Operating Temperature Range: -10°C to 50°C (14°F to 122°F)
• Storage Temperature Range: -30°C to 70°C (-22°F to 158°F)
• Dimensions: 520mm x 380mm x 220mm (20.5″ x 15″ x 8.7″)
• Weight: Approx. 20 kg (44 lbs)
• Warranty: 1 years
