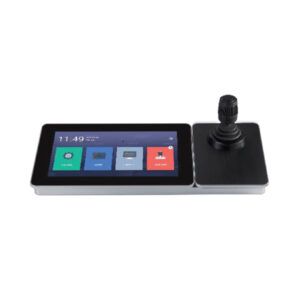

Hikvision DS-1600KI Network Keyboard

The Hikvision DS-1600KI is a next-generation network keyboard designed for seamless and intuitive control of video surveillance systems. Featuring a 10.1-inch capacitive touchscreen with HDMI and DVI output, it offers a modern Android-based interface with versatile video display and management capabilities. The detachable touchscreen and joystick provide ergonomic flexibility, while support for wired and Wi-Fi connections enhances installation options. Compatible with a wide range of Hikvision devices, the DS-1600KI is perfect for managing video walls, PTZ cameras, and large-scale security systems across various industries such as public security and finance.

Product Features

10.1″ capacitive touchscreen

The large 10.1-inch touchscreen delivers a responsive and clear user interface with a resolution of 1280 × 800, providing easy navigation and control over live video feeds and system settings.

Detachable design of touchscreen and joystick

Both the touchscreen panel and the 4-axis joystick are detachable, allowing users to customize their workspace for greater comfort and convenience during prolonged use.

Wired and Wi-Fi network connection

The keyboard supports both Ethernet (10/100/1000 Mbps) and Wi-Fi connectivity, providing flexible installation options and reliable network performance.

POE power supply

Power over Ethernet (PoE) simplifies installation by enabling data and power delivery through a single cable, reducing clutter and enhancing deployment flexibility.

Video decoding and display capability

Capable of decoding 1 channel of 4K at 30fps or 4 channels of 1080p at 30fps, the device supports up to 16-division window display for comprehensive surveillance monitoring.

Comprehensive device control

The DS-1600KI controls up to 2,000 devices, including Hikvision DVRs, NVRs, cameras, speed domes, MVCs, and decoders. It allows management of video decoding, output on video walls, PTZ control, preset settings, patrols, and pattern configurations.

Recording, capture, and two-way audio

Supports recording and picture capturing, with storage on USB flash drives or upload to FTP servers. Two-way audio is enabled through 3.5 mm connectors for enhanced communication during monitoring.

User management and security

Supports two-level user authority with up to 16 user accounts—one administrator and 15 operator accounts—ensuring secure and controlled access to system features.

Easy upgrades and configuration

Firmware upgrades and configuration file import/export can be performed conveniently via USB flash disk, facilitating quick system maintenance and updates.

Product Specifications

• Display: 10.1″ TFT LCD capacitive touchscreen, 1280 × 800 resolution
• Joystick: 4-axis detachable joystick
• Interfaces:
  • 2 × USB 2.0
  • Network (Ethernet 10/100/1000 Mbps)
  • Serial: RS-232, RS-422, RS-485
  • Wi-Fi supported
• Video Output: 1 × HDMI, 1 × DVI
• Audio Input/Output: 1 × 3.5 mm audio input, 1 × 3.5 mm audio output
• Video decoding: H.264, H.264+, H.265, H.265+, MPEG4
• Decoding capability: 1 channel 4K@30fps or 4 channels 1080p@30fps
• Power: 12 VDC or Power over Ethernet (PoE), ≤15 W consumption
• Operating temperature: -10°C to +55°C (14°F to 131°F)
• Humidity: 10% to 90% (non-condensing)
• Dimensions: 404 mm × 163 mm × 180 mm (15.91″ × 6.42″ × 7.09″)
• Weight: 1.7 kg (3.75 lb)
• Certifications: CE-EMC, CE-LVD, ROHS, CB, UL, FCC-SDoC, RCM, BIS
