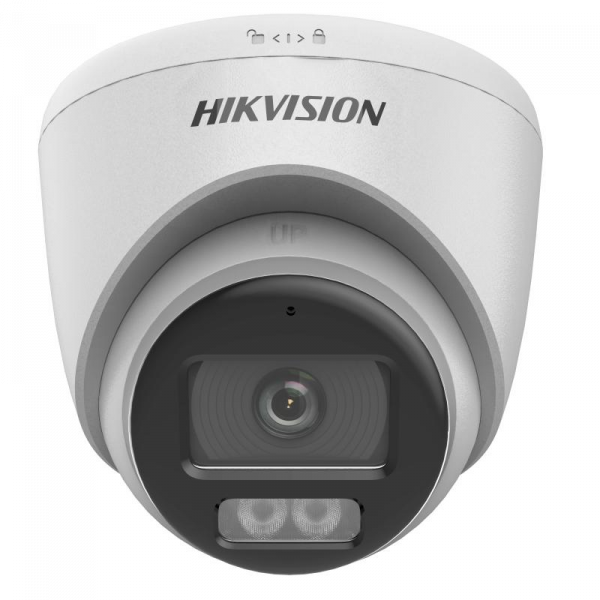

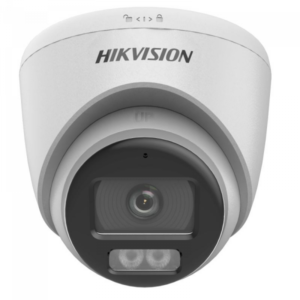

Hikvision DS-2CE72KF0T-LFS (2.8mm) 3K Smart Hybrid Light ColorVu Camera

The Hikvision DS-2CE72KF0T-LFS (2.8mm) is a professional-grade 3K ColorVu camera designed to deliver high-resolution video with full-color clarity in all lighting conditions. With its advanced Smart Hybrid Light technology, this camera intelligently switches between infrared and warm white light for optimal night vision performance. It also features a built-in microphone for real-time audio recording, a wide 2.8mm lens for enhanced coverage, and IP67-rated protection for reliable use indoors or outdoors. Ideal for commercial, residential, and industrial security systems, this turret-style camera offers versatile mounting and seamless DVR compatibility through its multi-format video output.

Product Features

3K Ultra HD Resolution for Clear Imaging

This camera delivers ultra-sharp video at 2960 × 1665 resolution, offering improved detail and clarity over standard HD cameras. It captures high-quality footage ideal for facial and object recognition in security scenarios.

ColorVu Technology for 24/7 Full-Color Monitoring

With an F1.0 large aperture lens and advanced sensor, ColorVu technology ensures bright, full-color images even in extremely low-light environments. This feature enhances visibility and improves evidence capture during nighttime surveillance.

Smart Hybrid Light for Adaptive Night Vision

The Smart Hybrid Light system automatically adjusts between infrared and warm white LED lighting based on the surrounding conditions and detected motion. This dynamic approach ensures effective illumination without unnecessary light exposure.

Built-in Microphone for Audio Recording

Equipped with an integrated microphone, the camera provides synchronized audio and video surveillance. The microphone captures clear sound within a five-meter radius, enhancing situational awareness and evidence gathering.

Wide 2.8mm Lens for Broader Field of View

A fixed 2.8mm lens offers a 110-degree horizontal field of view, making it suitable for monitoring wide areas such as entrances, hallways, parking lots, and retail spaces with minimal blind spots.

Multi-Format Video Output Compatibility

The camera supports TVI, AHD, CVI, and CVBS video output formats, ensuring seamless integration with both new and legacy DVR systems. It provides flexibility for both system upgrades and new installations.

Digital Noise Reduction for Clean Video

2D digital noise reduction helps minimize image grain in low-light footage, resulting in smoother, clearer video that is easier to analyze and store efficiently.

IP67 Weatherproof Housing

With a weather-resistant and dustproof IP67-rated enclosure, this camera is built to withstand challenging outdoor environments. Its durable construction ensures reliable performance in a wide range of weather conditions.

Easy Installation and Flexible Adjustment

The turret-style housing supports quick installation and flexible positioning. Users can easily adjust the camera’s pan, tilt, and rotation angles to achieve the best surveillance coverage.

Product Specifications

• Image sensor: 3K CMOS
• Signal system: PAL/NTSC
• Resolution: 2960 × 1665
• Frame rate: TVI (3K @ 20fps), AHD (5MP @ 20fps), CVI (4MP @ 30fps), CVBS (PAL/NTSC)
• Minimum illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter time: 1/25 s to 1/50,000 s (PAL), 1/30 s to 1/50,000 s (NTSC)
• Lens: 2.8mm fixed, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143°
• Lens mount: M12
• Day and night: ICR
• WDR: Digital WDR
• Angle adjustment: Pan 0°–360°, Tilt 0°–75°, Rotation 0°–360°
• Type: Built-in microphone
• Pickup distance: Up to 5 meters
• Light type: Smart IR and white light
• Range: Up to 40 meters
• Modes: Standard, high-saturation, highlight
• AE mode: Global, BLC, HLC, DWDR, HLS
• White balance: Auto, outdoor, global, manual
• Day/night mode: Auto, color
• Noise reduction: 2D DNR
• Video output: Switchable TVI, AHD, CVI, CVBS
• Audio input: Built-in microphone
• Power: 12 VDC ± 25%, max. 5.2 W
• Operating temperature: -40°C to 60°C
• Humidity: ≤90% (non-condensing)
• Protection: IP67
• Materials: Plastic enclosure, metal main body
• Dimensions: Ø109.98 mm × 98.27 mm
• Weight: Approx. 320 g
