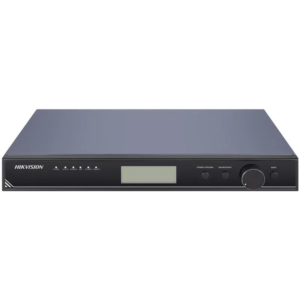

HIKVISION DS-D42C20-H LED Control Card

The Hikvision DS-D42C20-H LED Control Card is a powerful display management component designed to ensure precise control, stable signal transmission, and seamless synchronization for Hikvision LED display systems. Engineered for high-speed data processing and reliable performance, this control card enables smooth video playback, real-time adjustments, and optimized image rendering. With easy installation, durable build quality, and advanced connectivity options, the DS-D42C20-H is an essential component for professional LED video walls, digital signage, and large-scale display systems.

Product Features

Seamless Integration with Hikvision LED Displays

Designed for full compatibility with Hikvision LED video walls, ensuring stable and efficient communication between display modules.

High-Speed Data Processing for Smooth Playback

Delivers fast and reliable signal transmission, minimizing latency, flickering, and visual distortions for seamless content display.

Advanced Image Optimization for Superior Visuals

Enhances color accuracy, brightness uniformity, and display consistency, ensuring vibrant and high-definition image rendering.

Stable & Secure Performance with Minimal Downtime

Equipped with robust components and heat-resistant materials, offering long-term durability and continuous operation in high-performance environments.

User-Friendly Installation & Configuration

Features a plug-and-play design with easy setup and maintenance, reducing installation time and technical complexity.

Product Specifications

Processing Performance

• Brightness Control1-100 Levels
• Frame Frequency25HZ-120HZ
• Grey Level1024
• Display Color1 Billion
• Processing Depth10bit
• Image Scaling Support

Product Model

• Product ModelDS-D42C20-H

Chassis

• Chassis Height1.5 U
• Chassis Width Full Width

Product Type

• Product TypeLED Controller

LED Controller Power

• Average Consumption≤38W
• Number of power interfaces1
• Power interface specifications100～240 VAC, 50/60 Hz

General

• Working Temperature0°C ~ 50°C
• Storage Humidity10% ～ 90%
• Working Humidity10% ～ 90%
• Storage Temperature-10°C ~ 50°C
• Packaging Size (W × H × D)576mm × 428 mm × 121 mm
• Net Weight2.4KG
• Gross Weight4.13KG
• Dimensions (W × H × D)442 mm × 249.5 mm × 53mm
• Packing ListAC power cord*1, 1U chassis accessory kit*1, Manual*1, Foot pad assembly*1

Audio Input

• Audio Input Interface(s)3
• Audio Input Interface Type2 HDMI inline + 1 line-in

Video Input

• Video Input Interface(s)2
• Video Input Interface Type2 HDMI2.0 (optional)
• Max. Input Resolution4K
• Video Input ResolutionHDMI2.0 interface

  Maximum supported resolution: 4096*2160@60Hz

  Minimum supported resolution: 320*180@60Hz

  Customizable resolution, total resolution not more than 8.85 Million@60

  Limit width: 320~8192 Alignment: 4 alignment

  Limit height: 180~8192 Alignment: 1 alignment

  Support HDCP1.4

  Does not support interlaced signal input

• Video Input Processing CharacteristicsProcessing depth 8/10bit

  Sampling format:

  RGB:444

  YUV:444

  YUV:422

• Video Output
• Max. Output Resolution13 Million
• Loading Capacity for Video Output to LEDSingle mesh port with load of 65W

  Width 480~7680; Alignment: 2 Alignment

  Height 270~4320 ;Alignment: 1 alignment

• LED Loading Interfaces 20
• LED Loading Interface TypeRJ45
• Number of video ring pass output interfaces 1
• Video looping output interface typeHDMI 2.0
• Video looping output resolution4096*2160@60Hz

Audio Output

• Audio Output Interface(s)2
• Audio Output Interface Type 1 HDMI loop out +1 LINE OUT 3.5mm audio out

Front Panel

• Screen Digital Tube
• Key”\”+\”\”: brightness increase

  -\”: brightness decrease

  Source\”: switch the signal source\””

• pilot lampPWR: Power indicator

  STAT:Status indicator

  ASYNC: Internal Android source status light

  SYNC: External source status light

Control Interface

• Control network port2 RJ45, 10M/100M/1000M adaptive Ethernet ports

  Used to connect to external networks, can support multi-device network cascade management

• 3D interface1 SYNC for 3D signal configuration, 3-Core S-terminal
• IR input1 x 3.5mm cradle

  Support infrared remote control access

• Serial Interface 1, 1 debug serial port (RJ45)
• Light perception 1 light-sensitive aviation head
• USB2 x USB 2.0
• On-offSwitch
