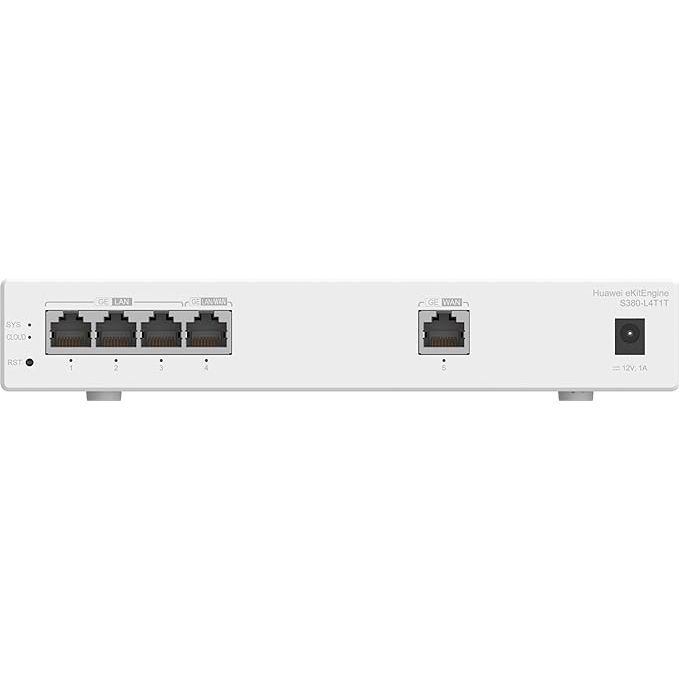

Huawei S380-L4T1T – S380 Multi-Service Gateway
KSh45,000 Original price was: KSh45,000.KSh36,000Current price is: KSh36,000. Exc. VAT
- Model: S380-L4T1T
- Part Number: 98012177
- First Supported Version: V600R022C10
- WAN Ports: 1 × GE WAN (RJ45)
- LAN Ports: 3 × GE LAN + 1 × GE LAN/WAN (RJ45)
- Max Power Consumption: 6.11 W
- Typical Power Consumption: 5.99 W
- Memory: 512 MB DDR4
- Flash Memory: 512 MB NAND Flash
S380-L4T1T Multi-Service Gateway
The S380-L4T1T is a compact and efficient multi-service gateway, engineered for small-to-medium business networks requiring secure and reliable WAN access. Featuring 1 GE WAN port and 4 GE LAN ports, this gateway offers robust wired connectivity, cloud-based management, and industrial-grade surge protection — all in a fanless, metal-encased design optimized for quiet operation and long service life.
Product Features
Streamlined Connectivity
Provides 1 Gigabit Ethernet WAN port, 3 dedicated GE LAN ports, and 1 configurable GE LAN/WAN port for flexible network deployment.
Cloud-Enabled Management
Equipped with a cloud status indicator to support remote and centralized management via supported firmware versions (V600R023C00 and later).
Silent, Fanless Design
Fanless construction allows for quiet operation and natural heat dissipation, reducing failure points and extending product lifespan.
Compact and Durable Build
Metal chassis with compact dimensions makes it ideal for small-scale environments or space-constrained installations.
Integrated Surge Protection
Built-in surge protection:
- Service port protection: ±4 kV
- Power supply protection: ±6 kV (differential and common mode)
Easy Reset Function
RST button enables both soft reset and full factory restore functions, aiding in quick troubleshooting and device recovery.
Product Specifications
- Model: S380-L4T1T
- Part Number: 98012177
- First Supported Version: V600R022C10
- WAN Ports: 1 × GE WAN (RJ45)
- LAN Ports: 3 × GE LAN + 1 × GE LAN/WAN (RJ45)
- Indicators:
- SYS (System status)
- CLOUD (Cloud connection status)
- Port indicators
- Dimensions (W × D × H):
- Without packaging: 210 × 136.3 × 35 mm
- With packaging: 285 × 180 × 90 mm
- Weight:
- Net: 0.8 kg
- Gross: 1.0 kg
- Power Supply:
- Input: 100–240 V AC, 50/60 Hz
- Output: 12 V DC, 1 A (via included adapter)
- Max Power Consumption: 6.11 W
- Typical Power Consumption: 5.99 W
- Memory: 512 MB DDR4
- Flash Memory: 512 MB NAND Flash
- Noise Level: < 30 dB(A) (acoustic power), < 20 dB(A) (acoustic pressure)
- Cooling Method: Natural heat dissipation (no fans)
- Ingress Protection: IP20
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 5% to 95% RH (non-condensing)
- Altitude Support: Up to 5000 m (with temperature de-rating above 1800 m)
- MTBF: 77.35 years
- MTTR: 2 hours
- Availability: > 0.99999
- Certifications: EMC, Safety, Manufacturing certifications
