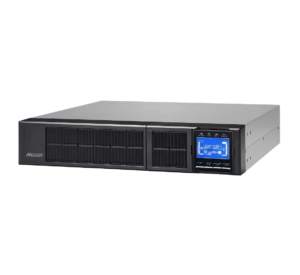

Mecer 2000VA 2KVA 1800W Rackmount UPS, (ME-2000-WPRU)

The Mecer ME-2000-WPRU is a 2000VA (2KVA), 1800W Rackmount UPS designed to provide reliable, high-quality power protection for servers, networking equipment, and other critical devices. This online double-conversion UPS is ideal for environments where continuous, clean power is essential to prevent downtime, data loss, and damage from power fluctuations, sags, spikes, and outages.

The ME-2000-WPRU offers a wide range of features, including high efficiency, pure sine wave output, and rackmount capability, making it an excellent choice for IT professionals and data center environments that require reliable power protection.

Key Features:

• True Double-Conversion Technology:
  The UPS uses a true double-conversion method to convert incoming AC power to DC and back to AC, ensuring continuous, clean power that eliminates disturbances such as surges, sags, and brownouts.
• Pure Sine Wave Output:
  The UPS delivers pure sine wave power in battery mode, making it compatible with sensitive equipment such as servers, network devices, and medical systems that require stable and clean power for optimal performance.
• Wide Input Voltage Range (110-300V):
  The UPS is capable of accepting a wide range of input voltages, from 110V to 300V, ensuring stable operation even in regions with unstable or fluctuating electrical supply.
• Rackmount Design:
  The ME-2000-WPRU is designed to fit into 19-inch server racks with a 2U form factor, making it a space-efficient solution for IT installations where rack space is at a premium.
• High Efficiency:
  The UPS operates with high efficiency, minimizing energy waste and reducing operating costs. Efficiency in AC mode is up to 88%, ensuring a balance between high performance and energy savings.
• LCD Display:
  The LCD panel provides real-time information on UPS status, battery level, input/output voltage, and other key parameters. This allows users to quickly assess the health of the system and respond to any issues.
• Battery Protection:
  The UPS provides overload, discharge, and overcharge protection for the batteries, ensuring long battery life and optimal performance.
• Automatic Voltage Regulation (AVR):
  The UPS can adjust the input voltage to provide a stable output voltage within a specified range, ensuring connected devices receive consistent power even when input voltage fluctuates.
• Remote Management:
  The UPS supports RS-232/USB communication and comes with SNMP slot for remote monitoring and management, making it suitable for use in environments where remote management is necessary.
• Energy Saving Mode (ECO Mode):
  This mode automatically reduces energy consumption by allowing the UPS to operate more efficiently under normal load conditions.

Product Specifications

Input Specifications:

• Input Voltage Range: 110V – 300V (depending on load and environment)
• Frequency Range: 46Hz – 54Hz or 56Hz – 64Hz
• Power Factor: ≥ 0.99 @ nominal voltage
• Nominal Input Voltage: 220V ± 5%

Output Specifications:

• Output Power: 2000VA (2KVA) / 1800W
• Output Voltage: 200/208/220/230/240V
• AC Voltage Regulation (Battery Mode): ± 1%
• Frequency Range (Synchronised Mode): 47Hz – 53Hz or 57Hz – 63Hz
• Frequency Range (Battery Mode): 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
• Waveform (Battery Mode): Pure Sine Wave
• Current Crest Ratio: 3:1
• Harmonic Distortion: ≤ 3% THD (Linear Load), ≤ 6% THD (Non-linear Load)
• Transfer Time:
  • AC Mode to Battery Mode: Zero
  • Inverter to Bypass: 4ms (Typical)

Efficiency:

• AC Mode Efficiency: 88%
• Battery Mode Efficiency: 83%

Battery:

• Battery Type: 12V / 9Ah
• Battery Numbers: 2 (for typical configurations)
• Typical Recharge Time: 4 hours to recover to 90% capacity
• Charging Current (max.): N/A
• Charging Voltage: 27.4VDC ± 1%

Indicators:

• LCD Panel: Displays UPS status, load level, battery level, input/output voltage, discharge timer, and fault conditions.

Alarm System:

• Battery Mode: Sounding every 4 seconds
• Low Battery: Sounding every second
• Overload: Sounding twice every second
• Fault: Continuously sounding

Physical Specifications:

• Dimensions (D x W x H): 470 x 438 x 88 mm (2U rackmount form factor)
• Net Weight: 10.5 kg

Environmental:

• Operating Humidity: 20-90% RH @ 0-40°C (non-condensing)
• Noise Level: Less than 50dB @ 1 meter

Management:

• Communication Ports:
  • RS-232
  • USB
  • SNMP slot (for remote management)
• Software Compatibility:
  • Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and Mac OS X via RS-232/USB.
  • Optional SNMP for web browser-based management and monitoring.
