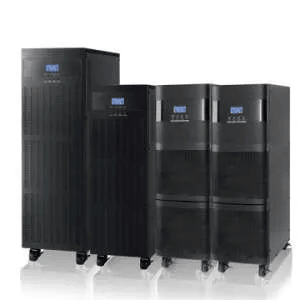

Mecer 40kVA (40000VA) ME-40000- GTU II 3 Phase Smart Online UPS

The Mecer ME-40000-GTU II is a 40KVA (40000VA) 3-phase online smart UPS, designed to provide reliable, clean, and stable power for high-performance and mission-critical systems in large enterprises, data centers, industrial environments, and telecommunications. This true double-conversion UPS guarantees continuous, uninterrupted power, protecting sensitive equipment from power interruptions, surges, voltage drops, and other electrical disturbances.

The ME-40000-GTU II delivers excellent efficiency, expandability, and advanced features that ensure high availability, making it ideal for situations where power quality is critical.

Product Features

True Double-Conversion Technology:

The true double-conversion process provides consistent, high-quality output power by converting incoming AC power to DC and then back to clean AC. This eliminates power disturbances like sags, spikes, and brownouts.

Wide Input Voltage Range (110-300V):

The ME-40000-GTU II can operate effectively even in areas with fluctuating input voltages, providing a robust solution for unstable power environments.

Power Factor Correction (PFC):

The input power factor correction of 0.99 ensures the UPS operates efficiently, reducing the need for reactive power, and increasing energy savings.

Output Power Factor of 0.8:

Delivers stable and reliable power with a power factor of 0.8 for improved efficiency.

ECO Mode Operation:

This mode optimizes UPS efficiency during normal operation, reducing energy consumption and lowering operating costs. In ECO mode, the UPS operates in a highly efficient state while still providing the necessary protection to sensitive equipment.

Generator Compatibility:

The Mecer ME-40000-GTU II is fully compatible with generators, ensuring uninterrupted power when running on backup generators during long-term power outages.

Charger Expansion for Long-Run Models:

For systems requiring extended runtime, the charger current can be expanded up to 6A for longer battery run times in long-run models.

Comprehensive Monitoring and Management:

The UPS comes with LCD displays, providing real-time UPS status, load level, input/output voltage, and battery information for easy monitoring. Additionally, SNMP support, USB, and RS-232 communication ports allow for remote management.

Flexible Battery Configuration:

The UPS supports a variety of battery configurations, with adjustable numbers of batteries depending on the runtime and load requirements. For larger setups or long-run models, up to 16-20 batteries can be configured, providing extended backup times for critical applications.

Product Specifications

Input Specifications:

• Voltage Range:
  • Low Line Transfer: 110V – 300V (depending on load)
  • High Line Transfer: 300V ±5%
• Frequency Range: 46Hz – 54Hz or 56Hz – 64Hz
• Power Factor: ≥ 0.99 @ 100% load
• Nominal Input Voltage: 380V / 400V / 415V (three-phase)
• Input Connection Type: 3-phase, 4-wire with ground

Output Specifications:

• Output Power: 40KVA (40000VA) / 32,000W
• Output Voltage: 380V / 400V / 415V (adjustable)
• AC Voltage Regulation (Battery Mode): ± 1%
• Frequency Range (Synchronised Mode): 46 ~ 54 Hz or 56 ~ 64 Hz
• Frequency Range (Battery Mode): 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
• Waveform (Battery Mode): Pure Sinewave
• Current Crest Ratio: 3:1
• Harmonic Distortion: ≤ 3% THD (Linear Load), ≤ 5% THD (Non-linear Load)
• Transfer Time:
  • AC Mode to Battery Mode: Zero
  • Inverter to Bypass: Zero

Efficiency:

• AC Mode Efficiency: 92%
• Battery Mode Efficiency: 90%

Battery:

• Battery Type: 12V / 9Ah
• Number of Batteries: Customizable (up to 20 for long-run models)
• Typical Recharge Time: 9 hours to recover to 90% capacity
• Charging Current: Max 6A (for long-run models)
• Charging Voltage: 218.4 VDC ± 1% (for standard models)

Indicators:

• LCD Panel: Displays real-time UPS status, load level, battery level, input/output voltage, discharge timer, and fault conditions.
• LED Indicators: Provide visual alerts for power, battery, overload, and fault conditions.

Alarm System:

• Battery Mode: Sounding every 4 seconds
• Low Battery: Sounding every second
• Overload: Sounding twice every second
• Fault: Continuously sounding

Physical Specifications:

• Dimensions: Typically 600 x 450 x 150 mm (L x W x H)
• Net Weight: 80-100 kg, depending on configuration
• Form Factor: Rackmount (19-inch 3U)

Environmental:

• Operating Humidity: 0-95% RH @ 0-40°C (non-condensing)
• Noise Level: < 65 dB at 1 meter

Management and Monitoring:

• Communication Ports:
  • Smart RS-232/USB: Allows local or remote monitoring and management of the UPS system.
  • SNMP Slot: Supports integration with SNMP management systems for centralized UPS monitoring.
• Software Compatibility:
  • Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux, Unix, and Mac OS X via RS-232/USB.
  • Optional SNMP for web browser-based management and monitoring.
