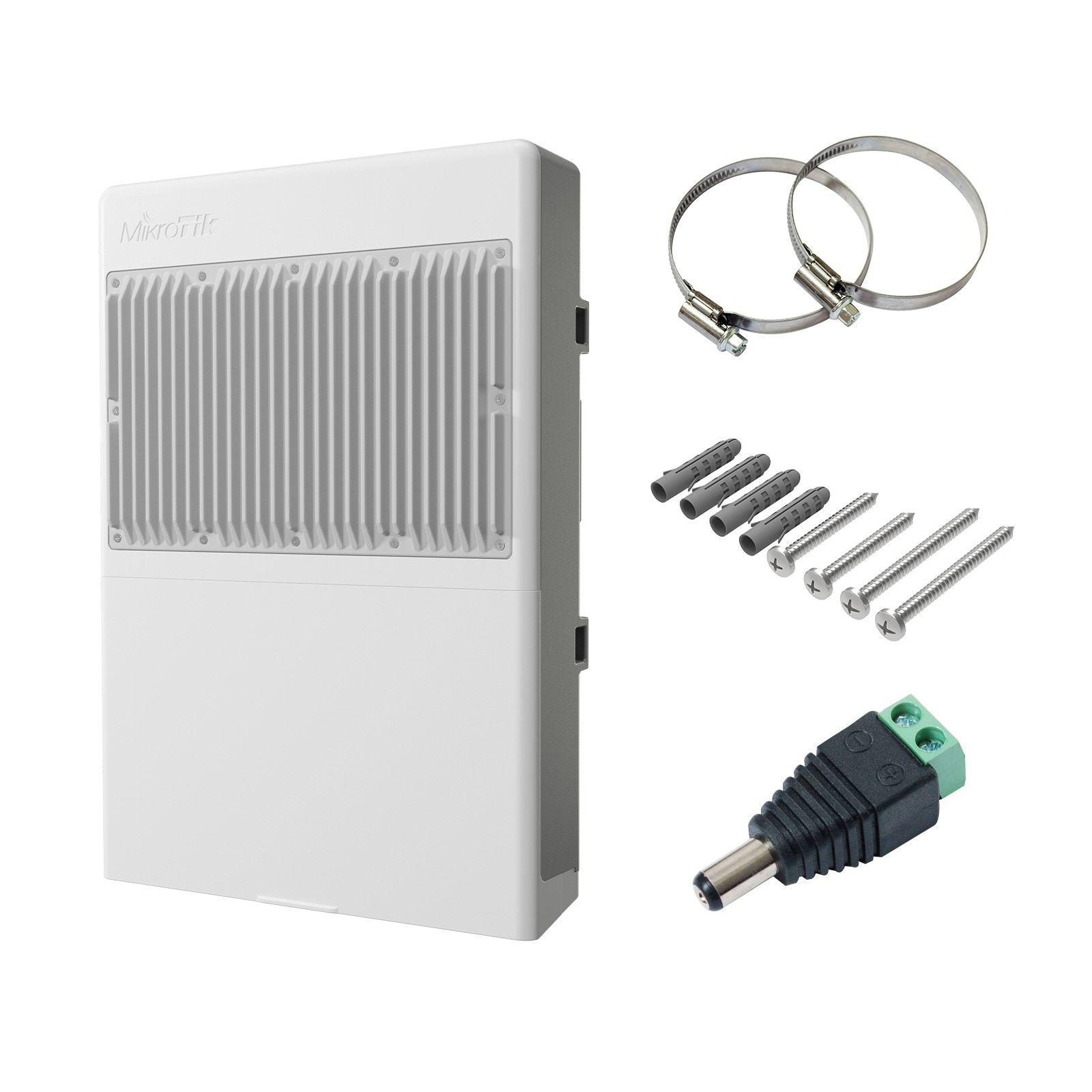

MikroTik netPower 16P – Outdoor PoE Switch with 16 Gigabit PoE Ports

The MikroTik netPower 16P is a rugged and powerful outdoor PoE switch, specifically designed for environments that require high power and reliable network connections to devices like access points and IP cameras. With its 16 Gigabit PoE-out ports and 2 SFP+ ports for 10G fiber uplinks, the netPower 16P is perfect for powering multiple devices at high speeds over long distances, making it an ideal choice for outdoor wireless networks, CCTV installations, or remote locations like towers and poles.

This switch comes in a weather-resistant enclosure, rated IP54, allowing it to be installed in tough environments, such as tower masts, outdoor poles, and damp locations. It has been designed for passive cooling, ensuring quiet and efficient operation even in hot or exposed settings.

Key Features

PoE and Power Delivery

• 16 Gigabit Ethernet Ports with PoE-out: Provides power and network connectivity to devices such as access points, cameras, and other PoE-powered equipment. Supports 802.3af/at PoE standards.
  • Max power per port:
    • 1.1 A (with input voltage of 18-30 V)
    • 0.6 A (with input voltage of 30-57 V)
  • Max total output current:
    • 2.8 A for input 18-30 V
    • 1.4 A for input 48-57 V

Fiber Uplink Ports

• 2 x SFP+ Ports (10G): Enables high-speed fiber uplinks for long-distance connections, ideal for linking to other switches or for backbone connections in outdoor networks.

Robust Outdoor Design

• IP54 Rating: Weatherproof and dust-resistant, designed for outdoor use in challenging environments such as towers, masts, and poles.
• Compact Enclosure: Easy to mount on poles or towers using hose clamps for convenient installation and stability.
• Passive Cooling: No fans needed, ensuring quiet operation even in high-temperature environments.

Powering Flexibility

• DC Power Input: Requires a 24V or 48V power supply to deliver PoE-out:
  • Compatible with MikroTik power supplies like 24HPOW, MTP250-53V47-OD, MTP250-26V94-OD, 48POW, and 48V2A96W.
  • Power supply is NOT included, and you can use your preferred power option, such as battery packs or solar systems.

High-Speed Performance

• Non-blocking Throughput: Capable of handling up to 36 Gbps throughput with a switching capacity of 72 Gbps and a forwarding rate of 53.6 Mpps. This makes it an excellent choice for demanding outdoor networks.

Product Specifications

General

• Product Code: CRS318-16P-2S+OUT
• Architecture: ARM 32-bit
• CPU: 98DX226S (800 MHz, Single-core)
• Switch Chip Model: 98DX226S
• RouterOS License: Level 5
• Operating System: RouterOS or SwitchOS
• RAM: 256 MB
• Storage: 16 MB FLASH
• MTBF: Approximately 200,000 hours at 25°C
• Tested Ambient Temperature: -40°C to 70°C
• Dimensions: 303 x 212 x 78 mm

Powering

• DC Input Voltage:
  • 18-30 V for 1.1A per port
  • 48-57 V for 0.6A per port
• Max Power Consumption: 316 W
• Cooling Type: Passive cooling (no fans)

Ports

• Ethernet Ports (PoE-out): 16 x 10/100/1000 Gigabit Ethernet
• SFP+ Ports: 2 x 10G fiber uplinks

Peripherals

• CPU Temperature Monitor: Yes
• Voltage Monitor: Yes
• Serial Console Port: Yes

Certifications

• Certification: CE, EAC, ROHS
• IP Rating: IP54 (dustproof and water-resistant)

Applications and Use Cases

• Outdoor Wireless Networks: Perfect for Wi-Fi access points in outdoor settings where both power and network connectivity are required.
• IP Surveillance Systems: Ideal for powering outdoor IP cameras with PoE and offering fast uplinks for video data transmission.
• Tower or Pole Installations: The durable design makes it well-suited for mounting on outdoor towers, poles, and masts.
• Remote Areas: Ideal for remote network setups in areas where power availability is limited, as you can use a variety of DC power sources like solar or battery packs.
