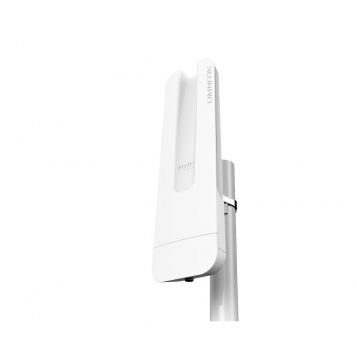

MikroTik OmniTIK 5 ac RBOmniTikG-5HacD Access Point

The MikroTik OmniTIK 5 ac is a high-performance outdoor wireless access point designed for long-range coverage and robust connectivity in demanding environments. With support for the 802.11a/n/ac standards on the 5GHz band, it delivers fast and stable wireless connections. Housed in a durable, weatherproof enclosure, it features five Gigabit Ethernet ports and integrated 7.5dBi omnidirectional antennas, making it ideal for campus networks, industrial installations, and point-to-multipoint setups. The device is powered via Passive PoE and comes with MikroTik’s RouterOS Level 4 license, offering flexible configuration for professional networking needs.

Product Features

Dual-chain wireless technology

Supports 802.11a/n/ac standards with two independent chains to enhance speed, signal stability, and range for reliable outdoor connectivity.

Integrated omnidirectional antennas

Equipped with two 7.5dBi omnidirectional antennas designed to provide consistent 360-degree coverage in open environments, eliminating the need for external antennas.

Five Gigabit Ethernet ports

Includes five 10/100/1000 Mbps Ethernet ports, offering high-speed wired connections suitable for bandwidth-intensive applications and multi-device networks.

Weatherproof design

Built with a rugged, sealed enclosure, the OmniTIK 5 ac is capable of withstanding harsh outdoor conditions, operating reliably in temperatures ranging from -40°C to +70°C.

Passive PoE support

Simplifies installation with support for Passive Power over Ethernet (PoE), reducing the need for separate power cabling and enabling flexible device placement.

Powerful CPU and memory

Powered by a 720MHz QCA9557 CPU and 128MB of RAM, the device handles routing, firewall, and wireless tasks efficiently under heavy loads.

Product Specifications

• Product code: RBOmniTikG-5HacD
• CPU: QCA9557, 720MHz
• RAM: 128MB
• Storage: 16MB Flash
• Operating system: RouterOS Level 4
• Dimensions: 416 x 129 x 58 mm
• Operating temperature: -40°C to +70°C
• Maximum power consumption: 14W
• PoE input voltage: 10–57V (Passive PoE)
• Number of DC inputs: 1 (PoE-IN)
• Wireless frequency band: 5GHz
• Wireless standards: 802.11a/n/ac
• Number of wireless chains: 2
• Wireless chip model: QCA9892
• Antenna gain: 7.5dBi omnidirectional
• Ethernet ports: 5 × 10/100/1000 Mbps
• USB ports: 1 × Type A
• Max USB current: 1A
• Wireless transmit power:
  • 6 Mbps: 31 dBm
  • 54 Mbps: 27 dBm
  • MCS0: 30 dBm
  • MCS7: 27 dBm
  • MCS9: 22 dBm
• Wireless receive sensitivity:
  • 6 Mbps: -96 dBm
  • 54 Mbps: -81 dBm
  • MCS0: -96 dBm
  • MCS7: -77 dBm
  • MCS9: -72 dBm
