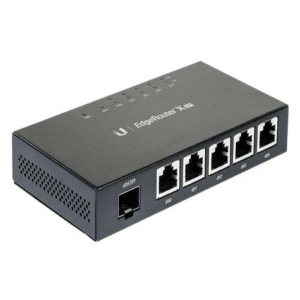

Ubiquiti EdgeRouter X (ER-X)

The Ubiquiti EdgeRouter X (ER-X) is a compact, high-performance 5-port Gigabit Ethernet router designed to meet the needs of both home and small business networks. With advanced features and a robust operating system, the ER-X offers versatile connectivity options and reliable performance, making it an ideal choice for users seeking both efficiency and affordability. Powered by a dual-core processor and equipped with EdgeOS, the router provides advanced routing, security, and management features. Additionally, it offers PoE passthrough support for powering other devices, ensuring a streamlined network setup.

Product Features

Power over Ethernet (PoE) Versatility

The Ubiquiti EdgeRouter X supports 24V passive PoE input, eliminating the need for additional power adapters. In addition, the router features PoE passthrough, enabling it to power a single airMAX device through its passthrough port, providing a more convenient and flexible network setup.

Intuitive User Interface

The EdgeRouter X comes with an easy-to-use graphical user interface powered by EdgeOS. The intuitive interface allows users to quickly configure and manage their network. It provides a virtual view of the physical connectivity, speed, and status of each port, as well as detailed statistics like IP information, MTU, and traffic speeds for both physical and virtual interfaces.

Advanced Routing and Network Management

The EdgeOS operating system provides advanced features such as VLAN interfaces for network segmentation, support for static routes, and routing protocols including OSPF, RIP, and BGP. It also includes firewall policies, NAT rules, DHCP services, and Quality of Service (QoS) tools for efficient network management. Additionally, the system offers comprehensive IPv6 support for modern networking environments.

CLI Configuration for Advanced Users

For those who prefer command-line control, the EdgeRouter X offers a built-in CLI that allows users to configure and monitor advanced features quickly. Access to the CLI is available through SSH, Telnet, or the serial console port, providing network professionals with the flexibility to execute Linux tools and shell commands for fine-tuned network management.

Technical Specifications

Mechanical and Design

• Dimensions: 105 x 25 x 90 mm (4.1 x 1.0 x 3.5 inches)
• Weight: 200 g (0.44 lb)
• Color: Black
• Rack Mounting: Not supported
• Ethernet Ports: 5 x Gigabit RJ45 ports

Power and Connectivity

• Power Input: 24V Passive PoE or external power adapter
• Max Power Consumption: 8W
• PoE Passthrough: Yes (for powering a single airMAX device)
• Ethernet LAN Ports: Supports 10/100/1000 Mbit/s speeds

Performance

• Routing Throughput: 1 Gbps for 1518-byte packets
• Packet Processing Rate: 130,000 packets per second (kpps) for 64-byte packets
• Layer-2 Switching: Configurable for line-rate, Layer-2 switching on all ports

Wireless and Mobile Networking

• Wi-Fi: Not supported
• Dual-Band: No support for wireless networks

Operating System and Software

• EdgeOS: Advanced routing and management capabilities, including firewall, DHCP, QoS, and monitoring tools
• CLI Access: Available through SSH, Telnet, or serial console port

Environmental and Certification

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% (noncondensing)
• Certifications: CE, FCC, and IC certified for safety and compliance standards
