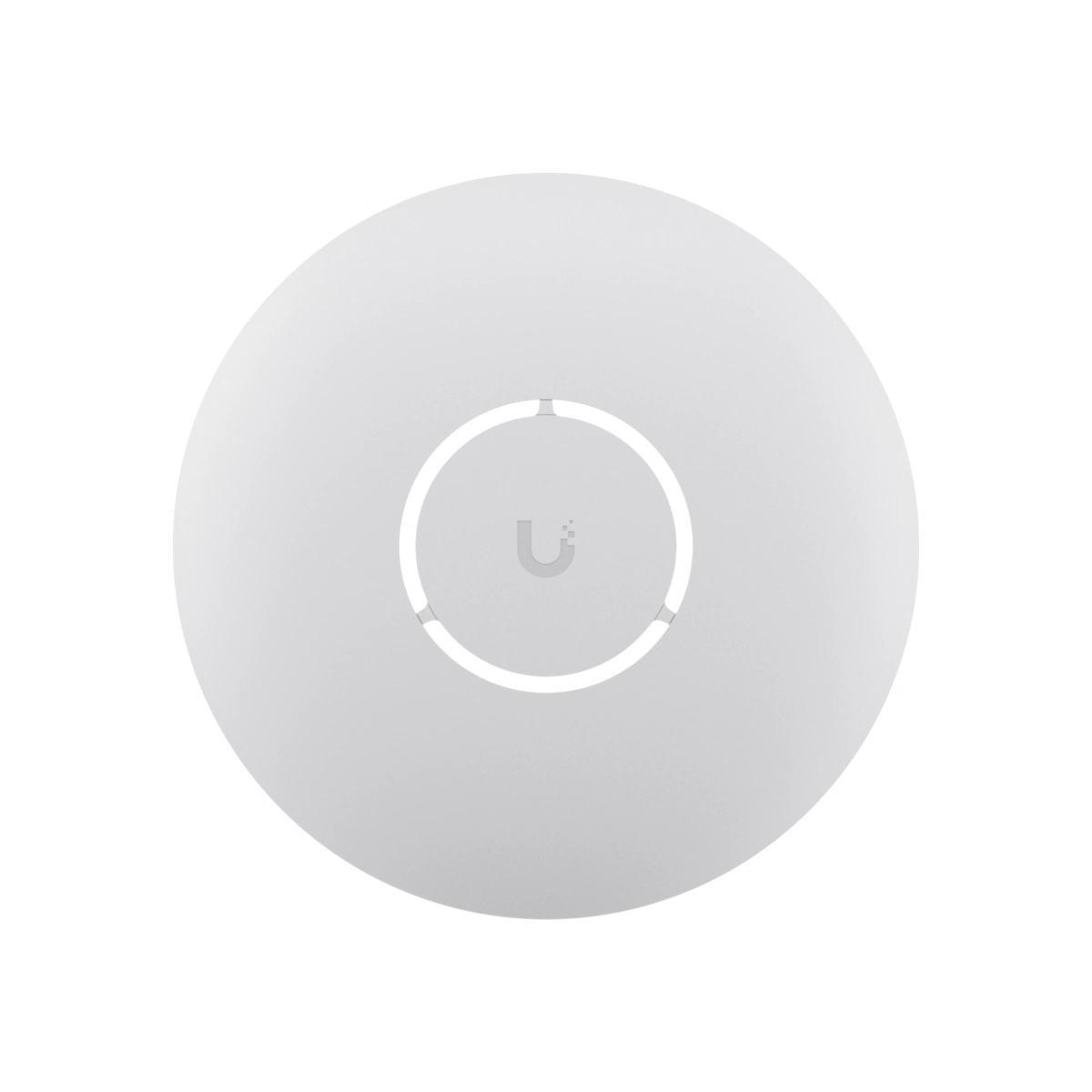

Ubiquiti Networks Unifi U7 Pro Tri-Band Wi-Fi 7 Access Point

The Ubiquiti UniFi U7 Pro is a cutting-edge Tri-Band Wi-Fi 7 Access Point designed to provide ultra-fast and reliable wireless connectivity for modern networks. Offering the latest Wi-Fi 7 (802.11be) technology, this access point supports multi-gigabit speeds and a high client capacity, making it ideal for high-density environments such as offices, schools, and public spaces.

Product Features

Tri-Band Wi-Fi 7 Performance

• Wi-Fi 7 (802.11be): Offers improved speeds and latency compared to previous standards, ensuring an exceptional experience for devices supporting Wi-Fi 7.
• Three Radios:
  • 2.4 GHz Radio: Up to 688 Mbps throughput.
  • 5 GHz Radio: Up to 4.3 Gbps throughput.
  • 6 GHz Radio: Up to 5.7 Gbps throughput.
• MIMO Technology: Supports 2×2 MIMO for all three bands (2.4 GHz, 5 GHz, and 6 GHz) to enhance network efficiency and reliability.

High Client Capacity

• Supports up to 300+ concurrent clients, making it perfect for high-traffic environments.
• Advanced QoS: Implements per-user rate limiting to ensure equitable bandwidth distribution across all connected devices.
• Guest Traffic Isolation: Ensures that guest traffic is separated from the main network for better security and performance.

PoE+ Powering

• PoE+ Support: Powered by a UniFi PoE switch, supporting a voltage range of 44—57V DC.
• Max Power Consumption: 21W for optimal energy efficiency.

Robust Design

• Compact and Durable: Constructed with a polycarbonate and metal enclosure, offering durability while maintaining a sleek design.
• Mounting: Includes wall/ceiling mounting options, making it easy to deploy in a variety of environments.

Security and Compatibility

• Wi-Fi Security: Supports the latest WPA3 encryption for enhanced network security. It is also compatible with WPA-PSK, WPA-Enterprise, and PPSK.
• VLAN Support: VLAN tagging (802.1Q) for network segmentation and optimized performance.
• BSSID: Up to 8 BSSIDs per radio for advanced network management.

Software and Management

• Managed via UniFi Network version 8.0.26 and later, and UniFi OS version 3.2 and later.
• Advanced Configuration: Provides easy setup and configuration through the UniFi Controller or mobile app.
• Automatic Channel Selection: Automatically selects the best channels for optimal wireless performance.

Technical Specifications

Mechanical and Design

• Dimensions: 206 x 46 mm (8.1 x 1.8 inches)
• Weight: 680 g (1.5 lb)
• Enclosure Material: Polycarbonate and metal
• Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
• Mounting: Wall/ceiling mounting included

Hardware and Networking

• Networking Interface: (1) 1/2.5 GbE RJ45 port
• Management Interface: Ethernet
• Power Method: PoE+
• Max Power Consumption: 21W
• Supported Voltage Range: 44–57V DC

Wireless

• Wi-Fi Standards: 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
• Max TX Power:
  • 2.4 GHz: 22 dBm
  • 5 GHz: 26 dBm
  • 6 GHz: 23 dBm
• Antenna Gain:
  • 2.4 GHz: 4 dBi
  • 5 GHz: 6 dBi
  • 6 GHz: 5.8 dBi
• MIMO: 2×2 for all radios (2.4 GHz, 5 GHz, 6 GHz)
• Throughput Rate:
  • 2.4 GHz: 688 Mbps
  • 5 GHz: 4324 Mbps
  • 6 GHz: 5765 Mbps

Software Features

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• BSSID: Up to 8 per radio
• VLAN Support: 802.1Q
• Advanced QoS: Per-user rate limiting
• Guest Traffic Isolation: Supported
• Concurrent Clients: 300+
• Data Rates:
  • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11b: 1, 2, 5.5, 11 Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
  • 802.11ac (Wi-Fi 5): 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
  • 802.11ax (Wi-Fi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
  • 802.11be (Wi-Fi 7): 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Environmental and Certification

• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

Application Requirements

• UniFi Network: Version 8.0.26 and later
• UniFi OS: Version 3.2 and later
