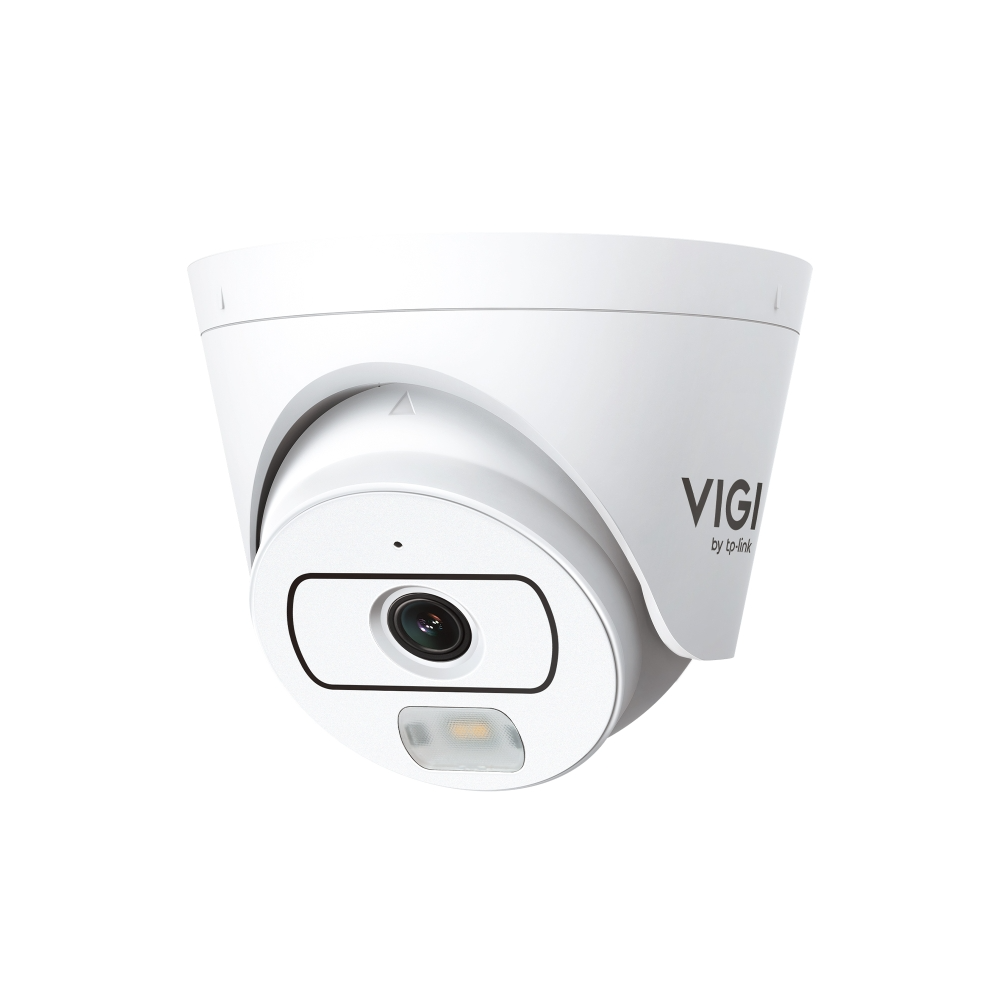

VIGI 2MP Full-Color Turret Network Camera (InSight S425)

The VIGI 2MP Full-Color Turret Network Camera (InSight S425) offers reliable 24/7 surveillance with 2-megapixel high-definition resolution and full-color imaging. Designed for outdoor and indoor use, this turret camera delivers intelligent human and vehicle classification, smart detection, and advanced video enhancement features. With LightPro night vision, a built-in microphone, and IP67 waterproof and IK08 vandal-proof protection, it ensures high-quality monitoring in all lighting and weather conditions. H.265+ compression technology reduces storage and bandwidth needs while maintaining sharp video clarity, making the InSight S425 a robust solution for modern security systems.

Product Features

2MP High Definition and 24h Full-Color

Capture clear, detailed images and vibrant color video around the clock, even in low-light conditions.

Human & Vehicle Classification

Intelligent detection differentiates between humans and vehicles for more accurate alerts.

Smart Detection

Supports intrusion, line-crossing, region entering/exiting, people, and vehicle detection.

LightPro Night Vision

Dual IR and white LEDs deliver bright and clear night-time images up to 98 ft (30 m).

Built-In Microphone

Records audio within a 15 ft (4.6 m) radius, providing additional context for events.

Smart Video Enhancement Technology

BLC, 3D DNR, HLC, Smart IR, and DWDR enhance image clarity, reduce noise, and improve visibility under challenging lighting.

IP67 Waterproof and IK08 Vandal-Proof

Durable metal construction ensures resistance to rain, dust, and physical tampering for outdoor security.

H.265+ Compression Technology

Efficiently compresses video to reduce storage and bandwidth usage without compromising image quality.

Product Specifications

• Image Sensor: 1/3” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
• Lens: Fixed focal, 2.8 mm / 4 mm, Aperture F2.0
• Field of View (FOV):
  • 2.8 mm: Horizontal 98.8°, Vertical 53.5°, Diagonal 117°
  • 4 mm: Horizontal 75.2°, Vertical 40.8°, Diagonal 88.3°
• DORI Distance:
  • 2.8 mm: Detect 153 ft, Observe 64 ft, Recognize 31 ft, Identify 15 ft
  • 4 mm: Detect 194 ft, Observe 81 ft, Recognize 39 ft, Identify 19 ft
• Angle Adjustment: Pan 0°–360°, Tilt 0°–85°, Rotate 0°–360°
• Illuminator: 2 IR-White LEDs, Auto/Scheduled/Always on/off, Range 98 ft (30 m)
• Video Resolution: Up to 1920×1080, main and sub-stream supported
• Video Compression: H.265+, H.265, H.264+, H.264
• Audio: Built-in microphone, 8 KHz sampling, 64 Kbps
• Network Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS
• ONVIF Compatibility: Yes, Profile S/T
• Simultaneous Live View: 3 main streams & 3 sub-streams
• Power Supply: 12V DC ±5%, Max 7.4 W; PoE 802.3af/at, Max 8 W
• Operating Temperature: -30 °C to 60 °C
• Protection: IP67 waterproof, IK08 vandal-proof
• Material: Metal
• Dimensions: Ø4.4 × 3.4 in (Ø112.2 × 87.2 mm)
• Certifications: CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK08
