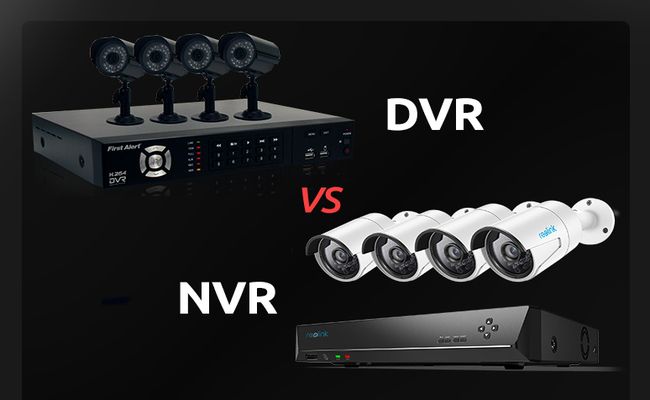

What’s the Difference Between NVR and DVR

When shopping for your first video surveillance system, you’ll need to purchase a video recorder. However, at first glance, this can be a perplexing subject. What type of recorder do you require? Should you purchase a DVR or an NVR and what’s the difference between NVR and DVR? Those are the questions we will assist you in answering.

So, what’s the difference between an NVR and a DVR? To be sincere, they’re quite similar. They both receive video data; the difference is in how they do it. The primary distinction between an NVR and a DVR is the manner in which these devices receive surveillance feeds. DVRs receive raw video input from analog security cameras, whereas NVRs receive IP camera streams over a local network. In other words, a DVR processes analog video data at the recorder level, whereas an IP system does it at the camera level.

What’s The NVR?

NVR is an abbreviation of a network video recorder (NVR). An NVR works with either wired or wireless IP cameras that are connected to a router/switch or directly to the NVR’s built-in PoE switch. The IP (network) cameras communicate with the NVR via the network.

IP cameras also have built-in hardware and software capabilities for converting analog video signals to digital video signals, implying that the initial processing is done by the camera itself, resulting in less work for the NVR and a more efficient system.

NVR systems can also use the Internet or a local area network to connect to a computer or storage device (LAN). This lowers the cost of running wires and gives you more options for where to put the cameras.

Assume you have a five-story hotel with ten cameras on each floor: you can connect all of the cameras on the floor to a single switch, and then the switch goes to the next floor via cats5/cat6, and everything is connected to the NVR. You do not need to bring each camera to the NVR individually.

What’s the DVR?

DVR stands for Digital Video Recorder (DVR). It is designed to work with wired, analog, or digital cameras that are directly connected to the DVR. These cameras are easily identified by the BNC connector on the pigtail.

The DVR essentially converts the camera’s video feed into a digital, compressed format that can be stored on a memory card, hard drive, or computer.

Because DVRs are designed to work with analog cameras connected via coaxial cable, upgrading an existing CCTV system is simple because the coaxial wiring is already in place.

There are also hybrid DVR systems that are compatible with newer IP cameras connected by RJ45 network cables, allowing you to build or upgrade a security system using both types of cameras.

What’s the main difference between NVR and DVR?

Because the NVR and DVR process videos in different ways, they must use different types of cameras, which highlights their main difference: A DVR employs analog CCTV cameras connected by coax cable, whereas an NVR employs IP cameras (standalone network devices) that transmit data via network cable.

In a nutshell, an NVR recorder is a network video recorder for IP cameras that aids in the expansion of storage and the manipulation of multiple cameras. The DVR, on the other hand, is both a storage medium for analog CCTV cameras and a video processor that analog cameras must coexist with.

Pros of NVR Systems in Kenya

1. Adaptable camera/recorder positioning. As previously stated, the NVR receives videos from the network. That is, as long as the NVR is on the same LAN network as the IP cameras, it can be placed virtually anywhere. Even the placement of IP cameras is simplified because all that is required is that the camera is connected to the same network (LAN).
2. Only minimal wiring is required. The NVR security system simplifies cable installation. The Wi-Fi NVR wirelessly visits cameras on the network, whereas the PoE NVR connects to all cameras with a single cable via a PoE switch. Both are impossible for DVRs, which require a point-to-point connection.
3. It’s compatible with higher-resolution cameras and other smart features. Because of the NVR’s nature, you can enjoy higher quality images with 4MP, 5MP, 4K (8MP), or 12M IP cameras, which is not possible with analog cameras in a DVR security system. Besides, IP cameras provide a number of intelligent features such as heat maps, people counting, face detection, intrusion, tripwire, and so on.
4. Video is converted from analog to digital in the camera. In essence, the feed that the NVR receives has already been processed. This makes the system more efficient and better utilizes its resources.
5. The data of an NVR system can be encrypted for protection and privacy purposes.

Cons of NVR Systems in Kenya

1. Relies on network stability. If the network fails or is disrupted by other devices, physical obstacles, or weather, it may experience interference or fail to record. However, there are numerous ways to mitigate the impact. Putting the cameras and the NVR on a separate network, for example, or purchasing a dual-band WiFi NVR system (if using a wireless surveillance system).
2. Possible compatibility issues Not all IP cameras are compatible with all NVRs. In general, it is preferable to purchase an NVR security system from the same manufacturer/seller.
3. Consumption of bandwidth NVR systems consumes more bandwidth than DVR kits due to the nature of IP network cameras. However, if the system is properly configured, this problem can be managed. There is no such problem with NVRs that have a built-in PoE switch.
4. They are generally more expensive than DVR systems. Particularly if you opt for some high-end NVR systems.

Pros of DVR Systems in Kenya

1. Using pre-existing wiring, DVR security systems can be used to upgrade existing CCTV systems to digital ones. This is their most significant advantage. If you have an older analog system, you can use the same coaxial wiring to upgrade to HD-CVI/HD-TVI/HD-AHD with 2MP, 4MP, or even 4K HD cameras.
2. It is not network-dependent. Because DVR systems are hardwired, they are not network-dependent and will not fail due to network outages. Each camera is connected directly to the recorder.
3. They are affordable in installation. Price is always an important consideration, especially when it comes to camera systems. DVR security systems are generally less expensive than NVR security systems because analog cameras are much easier to manufacture with fewer functions and thus less expensive than IP cameras.

Cons of DVR Systems in Kenya

1. Lots of cabling work is needed. Each camera will have a separate cable to deal with (this might be a thick Siamese cable). And to run back all the wires from different positions, you will very likely run into some embarrassing situations like drilling holes in the wall or the monitoring places are just out of the cable reach of your cameras.
2. Lower-quality videos. Even though emerging technology has greatly improved the recording quality of analog cameras (such as 2MP, 4MP, or 4K), they still cannot catch up with the IP cameras’ clarity and performance.
3. Higher maintenance cost. As mentioned, the DVR system transmits signals via coax cable, which is much more vulnerable to adverse environments like rain or strong wind. If they are exposed outside, you’ll be much more likely to pay an extra bill in fixing the cable issues.
4. Lots of unforeseen issues to deal with. The DVR systems, not to say they are outdated but it is definitely not something futuristic, gain decreasing market share every year.

Comparison Table Between NVR and DVR Systems

Item	NVR Systems	DVR Systems
Cameras type	IP cameras	Analog / HD over Analog Cameras
Cameras supported	More choices	Fewer choices
Signal stability	Less stable	More stable
Set up process	It can get complicated	Usually easier
Bandwidth consumption	More	Less
Cost	Higher	Lower

Which one should I buy? NVR or DVR?

In essence, both the DVR and the NVR record video footage onto a hard drive. Their differences are in their design and implementation: how they process raw data, how they are set up, and which cameras they are compatible with. The best system for you is ultimately a balance of needs. Here are some things to think about to help you make your decision:

• What hardware do you currently have in place (e.g., wiring)? Are you prepared to replace it?
• Are you familiar with programming network devices?
• How much maintenance is required?
• Who needs access? Is remote access required?

Another consideration is that both systems can be rigid and difficult to scale. Some limitations to consider:

• Remote access necessitates the opening/forwarding of ports, putting your system at risk of security flaws.
• The total cost of ownership (TCO) can be unpredictable and high due to the numerous hardware pieces that must be maintained.
• Updating NVRs is often expensive (software updates and licensing fees are not always included) and time-consuming, especially if they are deployed in multiple locations.
• Due to the limited number of ports on each recorder, adding and relocating cameras is inflexible.

DVR and NVR surveillance have advantages over more “traditional” systems. However, as technology advances, many organizations require more storage space, scalability, data security, ease of use, video analytics, and dependable remote access. Cloud and hybrid cloud solutions are modern alternatives to traditional systems; learn more in the following section.
