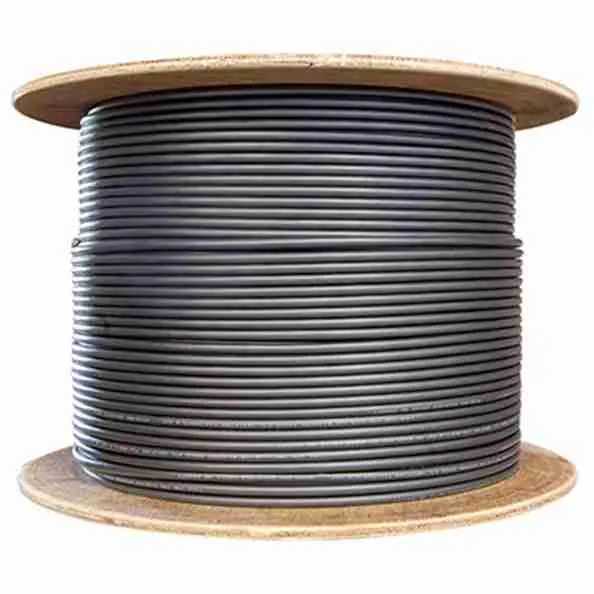

Giganet Category 6A Solid U/UTP Outdoor LDPE Cable (GN-C6A-U/UTP-LDPE)

The Giganet Category 6A Solid U/UTP Outdoor LDPE Cable (GN-C6A-U/UTP-LDPE) is a high-performance outdoor network cable engineered for 10 Gigabit Ethernet applications. With solid 23 AWG copper conductors and an overall foil shield, it delivers reliable high-speed connectivity while minimizing crosstalk and electromagnetic interference. Its UV and moisture-resistant LDPE jacket ensures durability in harsh outdoor environments, making it ideal for aerial, direct burial, and external backbone network installations. Designed to exceed industry standards, this cable provides long-term performance for enterprise networks, outdoor surveillance systems, and high-demand data transmission applications.

Product Features

Outdoor-Grade Durability

The LDPE outer jacket is UV and moisture-resistant, providing reliable performance in direct burial, aerial, and other outdoor environments.

High-Speed Data Transmission

Supports up to 10 Gbps (10GBASE-T) with a frequency bandwidth of 500 MHz, making it suitable for demanding 10G Ethernet applications.

Robust Construction

Solid 23 AWG bare copper conductors offer superior conductivity, signal integrity, and long-term stability compared to stranded alternatives.

Interference Protection

U/UTP design with an overall foil shield reduces alien crosstalk (AXT) and protects against external electromagnetic interference (EMI).

Future-Proof Network Solution

Exceeds ANSI/TIA-568.2-D, ISO/IEC 11801-1, and EN 50173-1 standards for Category 6A, ensuring compatibility with next-generation network infrastructure.

PoE Compatible

Supports Power over Ethernet (PoE) and PoE+ applications, enabling simultaneous data and power transmission over a single cable.

Product Specifications

• Brand: Giganet
• Model Number: GN-C6A-U/UTP-LDPE
• Category: 6A (Cat 6A) Solid U/UTP Outdoor Cable
• Conductor: 23 AWG solid bare copper
• Number of Pairs: 4 twisted pairs
• Insulation: Polyethylene (PE), 0.23 mm thickness
• Core Color Coding: Pair 1: White-Blue/Blue, Pair 2: White-Orange/Orange, Pair 3: White-Green/Green, Pair 4: White-Brown/Brown
• Filler: Central ‘X’ shaped polyethylene filler
• Shielding: Overall aluminum foil with 24 AWG drain wire
• Outer Sheath: LDPE (UV and moisture-resistant)
• Jacket Color: Black
• External Diameter: 7.5 ± 0.5 mm
• Standard Length: 305 meters (1000 ft) drum
• Frequency Bandwidth: Up to 500 MHz
• Maximum Data Rate: 10 Gbps (10GBASE-T Ethernet) up to 100 meters
• DC Resistance: Max 9.5 Ω/100m at 20°C
• DC Conductor Resistance Unbalance: Max 5%
• Mutual Capacitance: Max 5.6 nF/100m
• Nominal Velocity of Propagation (NVP): 69%
• Operating Temperature Range: -20°C to +75°C
• Standards Compliance: ANSI/TIA-568.2-D, ISO/IEC 11801-1, EN 50173-1
• Applications: Outdoor backbone links, IP surveillance networks, long-distance outdoor Wi-Fi access points, PoE infrastructure
