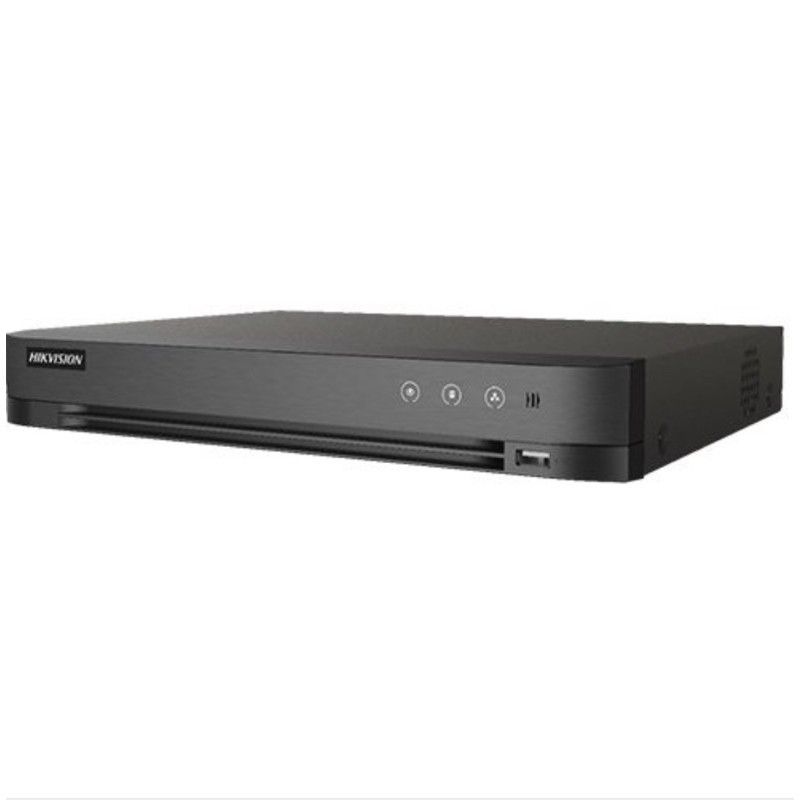

Hikvision 4-ch 1080p 1U H.265 AcuSense DVR – IDS-7204HQHI-M1/FA

The Hikvision IDS-7204HQHI-M1/FA 4-Channel 1080p 1U H.265 AcuSense DVR is a high-performance digital video recorder designed for intelligent and efficient security monitoring. Equipped with AcuSense AI technology, this DVR enhances security by accurately distinguishing humans and vehicles from other objects, reducing false alarms. Supporting up to 4 HD analog cameras with full 1080p resolution, it ensures crystal-clear video recording. The H.265+ compression significantly reduces bandwidth and storage consumption, allowing for extended recording time. With smart motion detection, remote access via Hik-Connect, multiple video output options (HDMI & VGA), and multi-format camera compatibility, this DVR is an ideal security solution for homes, offices, small businesses, and retail stores.

Product Features

4-Channel 1080p HD Video Input for High-Quality Surveillance

The IDS-7204HQHI-M1/FA supports up to 4 HD analog cameras with full 1080p resolution, delivering clear and detailed footage for effective security monitoring.

AcuSense AI-Powered Smart Motion Detection

With Hikvision’s AcuSense technology, this DVR can accurately detect and classify humans and vehicles, minimizing false alarms caused by animals, weather changes, or moving objects like leaves.

H.265+ Video Compression for Optimized Storage

Featuring H.265+ advanced compression, this DVR significantly reduces storage and bandwidth usage while maintaining high-quality video output, ensuring longer recording durations without compromising clarity.

HDMI & VGA Output for High-Resolution Playback

The DVR supports both HDMI and VGA outputs, with a maximum resolution of 1920×1080, providing clear and sharp video playback on compatible monitors.

Remote Access & Mobile Viewing via Hik-Connect

With Hik-Connect support, users can remotely access live and recorded footage from smartphones, tablets, or computers, allowing real-time security monitoring from anywhere.

Multi-Format Camera Compatibility

The IDS-7204HQHI-M1/FA supports TVI, AHD, CVI, and CVBS camera formats, ensuring seamless integration of different camera technologies within a single surveillance system.

Customizable Recording Modes for Flexible Security

The DVR offers continuous, motion detection, and scheduled recording modes, allowing users to optimize storage usage and tailor surveillance settings to their needs.

1U Rackmount Design for Space-Saving Installation

With a compact 1U form factor, this DVR is easy to install in security racks or small spaces, making it a versatile choice for various surveillance setups.

Product Specifications

Facial Recognition

• Face Picture ComparisonFace picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
• Face Picture LibraryUp to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle AnalysisUp to 2-ch

Video and Audio

• IP Video Input

  1-ch (up to 5-ch)

  Enhaced IP mode on:

  2-ch (up to 6-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output

• Audio Input

  1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback4-ch

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Network

• Remote Connection32
• Total Bandwidth72 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA1 SATA interface, up to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0;

  Rear panel: 1 × USB 2.0

• Alarm In/OutN/A (optional to support)

General

• Power Supply12 VDC, 1.5 A
• Consumption≤ 18 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)
• Weight≤ 1.16 kg (2.6 lb)
