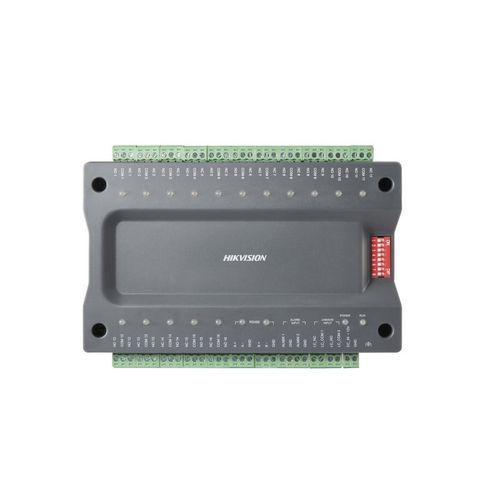

Hikvision Distributed Elevator Controller DS- K2M0016A

The Hikvision DS-K2M0016A Distributed Elevator Controller is a high-performance access control device designed to work alongside the Hikvision DS-K2210 Elevator Master Controller for secure and efficient floor access management. This 16-floor expansion module allows administrators to assign and restrict elevator access, ensuring only authorized users can reach specific floors. Ideal for residential buildings, office complexes, hotels, and commercial facilities, the DS-K2M0016A enhances security by enabling multi-floor access control with seamless integration into Hikvision’s access control ecosystem.

Product Features

16-Floor Control Expansion

The DS-K2M0016A supports up to 16 floors per unit and can be connected to multiple controllers to scale up to 128 floors, making it suitable for high-rise buildings.

Seamless Integration with the DS-K2210 Elevator Master Controller

Designed to work as an extension module, this controller communicates efficiently with the Hikvision DS-K2210 Elevator Master Controller, ensuring a unified and controlled elevator access system.

Flexible Access Authorization

The controller allows customized floor access permissions, ensuring that only authorized users can select and access specific floors via RFID cards, PIN codes, facial recognition, or fingerprint authentication.

Encrypted Data Communication for Security

With secure RS-485 communication, the DS-K2M0016A protects access data against unauthorized interception, ensuring a high level of security in elevator access control.

Remote Monitoring and Control

Administrators can remotely manage, configure, and monitor floor access permissions in real-time via Hikvision’s security management software, improving operational efficiency.

Fire Alarm and Emergency Override Support

The system supports automatic floor unlocking during emergencies when integrated with fire alarm systems, ensuring compliance with safety standards.

Tamper Protection and System Stability

Built-in anti-tamper protection and industrial-grade components ensure reliable, long-term performance in demanding environments.

Product Specifications

• Working Temperature-40°F to 158°F
• Working Humidity0% to 90% (No Condensation)
• Power Supply12 VDC±15%
• InstallationGuide Rail Installation
• Tamper-Proof1
• Dimensions167(L)mm*105(W)mm*30(H)mm
