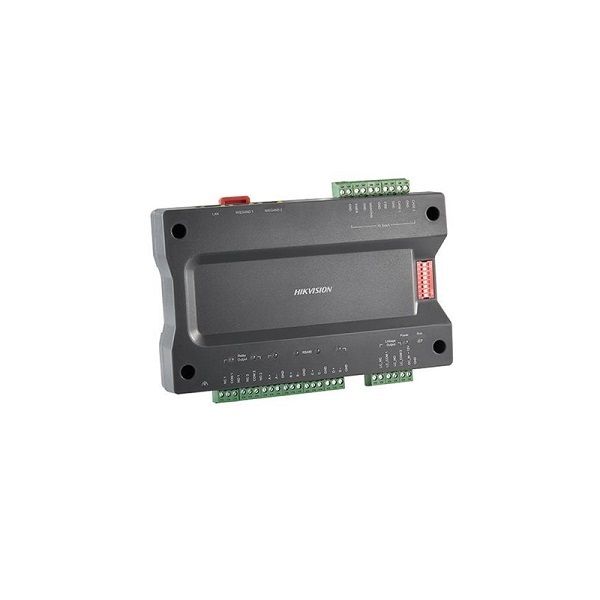

Hikvision DS-K2210 Elevator Master Controller

The Hikvision DS-K2210 Elevator Master Controller is a high-performance access control system designed to manage and restrict elevator access efficiently. This advanced controller enables building administrators to assign floor permissions, enhancing security in residential buildings, office complexes, hotels, and other multi-story facilities. With support for up to 128 floors, seamless integration with Hikvision access control devices, and advanced security features, the DS-K2210 ensures controlled access while improving operational efficiency.

Product Features

Comprehensive Elevator Access Control

The DS-K2210 allows administrators to configure and manage elevator floor access permissions, ensuring that only authorized personnel can access specific floors.

Supports Up to 128 Floors

This master controller can manage up to 128 floors by connecting to multiple Hikvision DS-K2M0016A Distributed Controllers, making it ideal for high-rise buildings.

Seamless Integration with Hikvision Access Control Systems

Designed to work effortlessly with Hikvision card readers, facial recognition terminals, and fingerprint scanners, the DS-K2210 provides a unified security solution for elevators.

Multiple Authentication Methods

The controller supports MIFARE card readers, PIN codes, biometric authentication (fingerprint/face recognition), and remote access, ensuring flexible and secure access management.

Advanced Communication and Networking

With TCP/IP and RS-485 interfaces, the controller allows easy remote management and integration with security monitoring systems.

High-Security Data Encryption

To prevent unauthorized access, the device employs encrypted communication protocols, ensuring secure data transmission between controllers and connected access control terminals.

Real-Time Monitoring and Logging

Administrators can track user access in real time, generate reports, and manage user credentials using Hikvision’s security management software.

Emergency Override and Fire Alarm Integration

The system supports emergency override features, including automatic unlocking in case of fire alarm activation, ensuring compliance with safety regulations.

Product Specifications

Device Interface

• CommunicationTCP/IP;RS-485, and Wiegand
• Input Interface1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button
• Output Interface5 Relay Outputs
• Internal ClockSupport
• RTCSupport

General

• Working Temperature-40°F to 158°F
• Working Humidity0% to 90% (No Condensation)
• Power Supply12 VDC±15%
• InstallationGuide Rail Installation
• Dimensions167(L)mm*105(W)mm*30(H)mm

System Parameter

• Processor32 bit
• IndicatorPower On: Solid Green, Running Properly: Flashing Green, Running Exception: Solid Red, Serial Port Not Communicating: Off , Serial Port Communicating: Solid Green, Relay NC: Off , Relay NO: Solid Green, Network Disconnected: Off  ,Network Cable Connected: Solid Yellow, Flashing Green  ,Network Armed: Solid Yellow, Flashing Green,
• Card reader Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers
