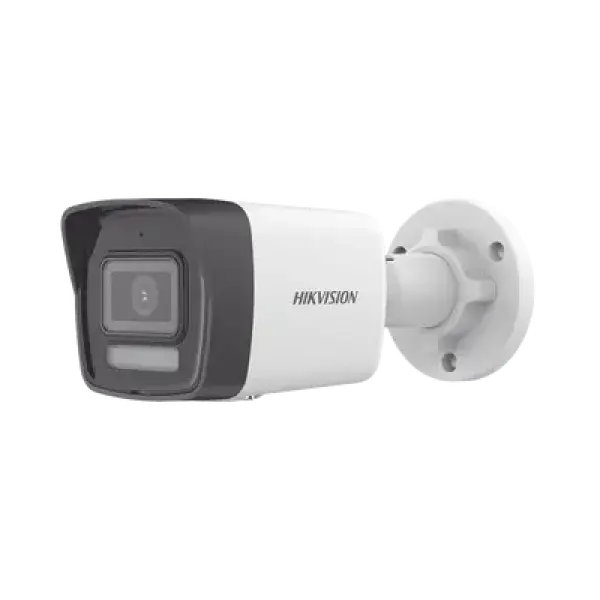

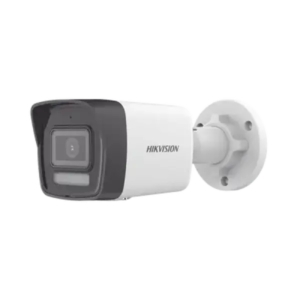

Hikvision DS-2CD1023G2-LIUF/SL(4mm)(O-STD) 2MP Smart Hybrid Light IP Camera

The Hikvision DS-2CD1023G2-LIUF/SL (4mm) 2MP Smart Hybrid Light IP Camera is a high-performance surveillance solution designed to deliver crystal-clear 2MP Full HD video with advanced Smart Hybrid Light technology and AI-powered human and vehicle detection. Featuring a built-in microphone for real-time audio recording and adaptive lighting with infrared (IR) and warm white LEDs, this camera ensures round-the-clock security with excellent visibility in any lighting condition. Its IP67-rated weatherproof housing makes it suitable for indoor and outdoor applications, offering efficient storage with H.265+ compression and easy installation via Power over Ethernet (PoE).

Product Features

2MP Full HD Resolution for Clear Video

With a 1920 × 1080 resolution, this camera captures sharp and detailed video footage, making it perfect for monitoring entrances, corridors, and small commercial spaces.

Smart Hybrid Light Technology

The Smart Hybrid Light system automatically switches between infrared (IR) and warm white LED illumination depending on lighting conditions, ensuring clear full-color images in low-light environments and discreet black-and-white imaging in complete darkness.

AI-Powered Human & Vehicle Detection

Deep learning-based AI algorithms accurately detect human and vehicle movement, minimizing false alarms triggered by animals, wind, or other non-relevant objects.

Built-in Microphone for Real-Time Audio Recording

The integrated microphone captures high-quality audio, enhancing situational awareness and allowing audio and video monitoring simultaneously.

4mm Fixed Lens for Optimal Coverage

The 4mm lens provides an optimized field of view, making it ideal for narrower areas like entrances, hallways, and small business properties.

H.265+ Compression for Efficient Storage

The camera supports H.265+ compression, which reduces bandwidth and storage requirements without compromising video quality, allowing for longer recording durations.

IP67 Weatherproof Rating

With its IP67-rated housing, the camera is dustproof and waterproof, making it perfect for both indoor and outdoor applications in harsh weather conditions.

PoE (Power over Ethernet) for Simplified Installation

PoE technology allows the camera to receive power and data through a single Ethernet cable, making installation quicker and more cost-effective.

Multiple Storage Options

Supports microSD card storage (up to 256GB), NVR recording, and cloud storage, providing flexible video backup options.

Product Specifications

Camera

• Image Sensor1/2.9″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

  4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

DORI

• DORI

  2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

  4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region of Interest (ROI)1 fixed region for main stream

Audio

• Audio TypeMono sound
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask4 programmable rectangle privacy masks

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Built-in MicrophoneYes,1 built-in microphone
• Built-in SpeakerMax. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
• Reset KeyYes

Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light

General

• Power

  12 VDC ± 25%, 0.62 A, max. 7.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 9 W

• MaterialMetal & Plastic
• Dimension179 mm × 67.4 mm × 69.1 mm (7.1″ × 2.7″ × 2.7″)
• Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• WeightApprox. 315 g (0.7 lb.)
• With Package WeightApprox. 520 g (1.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
• Flashing LightYes

Approval

• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
