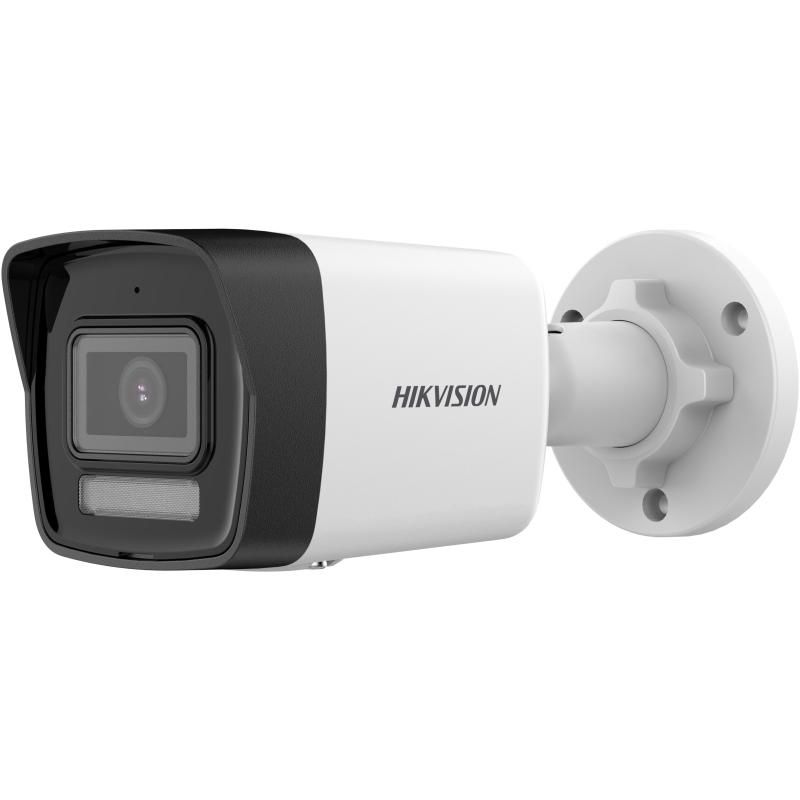

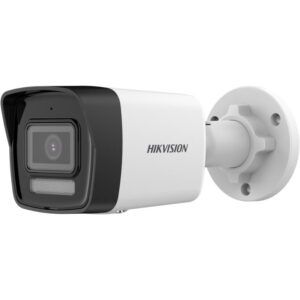

Hikvision DS-2CD1063G2-LIU(4mm)(O-STD) 6MP Smart Hybrid Light IP Camera

The Hikvision DS-2CD1063G2-LIU (4mm) 6MP Smart Hybrid Light IP Camera is a high-resolution surveillance solution designed to deliver detailed and clear video recording with advanced night vision technology. Featuring Smart Hybrid Light, the camera automatically switches between infrared (IR) for discreet monitoring and warm white LED for full-color night vision. Equipped with AI-powered human and vehicle detection, a built-in microphone for real-time audio monitoring, and H.265+ video compression for efficient storage, this camera ensures superior security performance. The IP67-rated weatherproof design makes it an ideal choice for both indoor and outdoor security applications.

Product Features

6MP Ultra HD Resolution for Superior Image Quality

The 6MP CMOS sensor captures 3072 × 2048 resolution video, providing exceptional image clarity and detail for enhanced security monitoring.

Smart Hybrid Light for Adaptive Night Vision

The Smart Hybrid Light technology automatically adjusts between infrared (IR) for low-light environments and warm white LED for full-color imaging, ensuring optimal visibility in any lighting condition.

AI-Powered Human & Vehicle Detection

Utilizing deep learning AI algorithms, the camera can distinguish between human and vehicle movement, significantly reducing false alarms from non-relevant motion.

Built-in Microphone for Real-Time Audio Monitoring

The integrated microphone provides high-quality audio recording, allowing users to capture and analyze sounds within the surveillance area.

Fixed 4mm Lens for Wide Area Coverage

The 4mm fixed lens provides a balanced field of view, making it ideal for monitoring entrances, hallways, parking lots, and commercial spaces.

H.265+ Video Compression for Efficient Storage & Bandwidth Usage

Supports H.265+ compression technology, which optimizes bandwidth usage and reduces storage costs, ensuring efficient video management.

IP67 Weatherproof Protection for Reliable Outdoor Use

Designed with an IP67-rated enclosure, this camera is fully dustproof and waterproof, ensuring reliable performance in extreme weather conditions.

Power over Ethernet (PoE) for Easy Installation

The PoE functionality allows for power and data transmission through a single Ethernet cable, simplifying installation and reducing wiring complexity.

Multiple Storage Options for Secure Backup

Supports microSD card storage (up to 256GB), NVR recording, and cloud storage, providing flexible and reliable video backup solutions.

Product Specifications

Camera

Image Sensor

1/2.4″ Progressive Scan CMOS

Max. Resolution

3200 × 1800

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

DORI

DORI

2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator

Supplement Light Type

IR,White Light

Supplement Light Range

IR: up to 30 m White Light: up to 20 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Type

Mono sound

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host

Up to 32 users 3 user levels: administrator, operator, and user

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Built-in Microphone

Yes

Reset Key

-F: Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

Power

12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W

Material

Metal & Plastic

Dimension

170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″)

Package Dimension

216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)

Weight

Approx. 285 g (0.6 lb.)

With Package Weight

Approx. 481 g (1.1 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Safety

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
