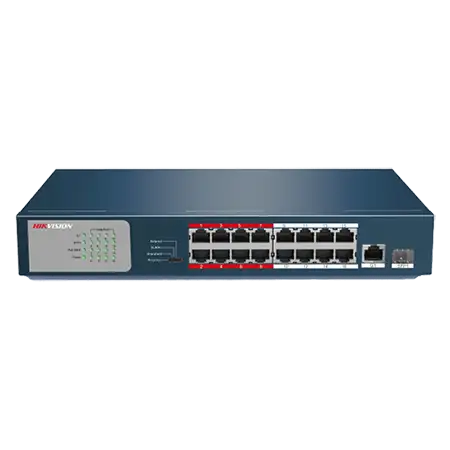

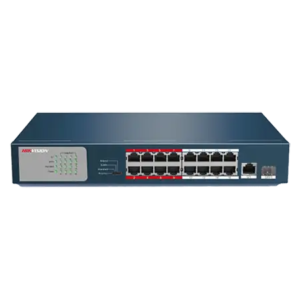

Hikvision DS-3E1518P-EI/M 16-Port Gigabit Smart PoE Switch

The Hikvision DS-3E1518P-EI/M 16-Port Gigabit Smart PoE Switch is a high-performance and cost-effective network solution, ideal for IP surveillance, enterprise networking, and smart home applications. Featuring 16 PoE-enabled Gigabit Ethernet ports and 2 additional uplink ports, this switch ensures fast, stable, and secure data transmission. With advanced features such as extended transmission mode, VLAN isolation, and 6kV surge protection, this switch provides efficient and long-distance PoE power supply, making it an excellent choice for IP cameras, VoIP phones, and other PoE devices.

Product Features

16 Gigabit PoE Ports + 2 Gigabit Uplink Ports for Seamless Connectivity

Equipped with 16 × 10/100/1000 Mbps PoE ports and 2 × 10/100/1000 Mbps uplink ports, ensuring smooth and reliable data transmission for multiple connected devices.

Smart PoE Power Management for Optimized Power Distribution

Supports IEEE 802.3af/at PoE standards, providing up to 30W per port, with a total PoE power budget of 230W, ensuring efficient power allocation for connected devices.

Extended Transmission Mode for Long-Distance PoE Deployment

Supports an extended PoE transmission range of up to 300 meters in CCTV mode, making it perfect for deploying PoE-powered IP cameras over long distances.

VLAN Isolation Mode for Enhanced Network Security

Features VLAN mode, which isolates PoE ports to prevent broadcast storms and enhances network security by restricting unauthorized access.

6kV Surge Protection for Reliable Device Safety

Built-in 6kV surge protection protects connected devices from power surges and lightning strikes, ensuring system stability and longevity.

Plug-and-Play Setup for Easy Deployment

No configuration is required—simply connect and power your PoE devices, making it ideal for businesses, surveillance systems, and smart home networks.

Durable Metal Housing for Long-Lasting Performance

Designed with a rugged metal chassis, offering efficient heat dissipation and durability, making it suitable for continuous 24/7 operation in demanding environments.

Applications

• Surveillance Systems: Ideal for supporting large-scale IP camera systems in various environments, including retail, offices, and transportation.
• Enterprise Networks: Provides high-performance connectivity for demanding enterprise networks.
• Data Centers: Supports high-density server deployments and provides reliable connectivity within data center environments.

Product Specifications

General

• ShellMetal material
• Net Weight2.7 kg (5.9 lb)
• Gross Weight2.9 kg (6.4 lb)
• Dimensions (W × H × D)440.0 mm × 220.8 mm × 44.0 mm (17.32” × 8.69” × 1.73”)
• Operating Temperature0 °C to 45 °C (0 °F to 113 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100~240 VAC, 50/60 Hz, Max. 2.5 A
• Installation ModeRack (equipped with mounting ears)
• Max. Power Consumption150 W
• Power Consumption in Idle20 W
• Surge Protection6 KV

Network Parameters

• Ports16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
• MAC Address Table K
• Switching Capacity56 Gbps
• Packet Forwarding Rate41.66 Mpps
• Internal Cache4.1 Mbits

PoE Power Supply

• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 16
• Max. Port Power30 W
• PoE Power Budget130 W

Software Function

• Long Range

Ports 1 to 16: up to 300 m.

Long-range performance may vary depending on the camera model or cable condition.

Port Isolation

Ports 1 to 16: port isolation mode to improve network security.

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE WatchdogPorts 1  to 16: Auto-detect and restart the cameras that do not respond.
• Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 8 aggregation groups.

Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.

VLAN

VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk and access port mode.

Support Max. 32 VLAN.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.

• System Maintenance

Support device management via the web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

Support remote management via Hik-Partner Pro.

Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

Support 802.1ab LLDP for peer device discovery.

Support port mirroring for fault locating.

• Approval
• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry

CE-RoHS (201165EU);

WEEE (201219EU);

Reach (Regulation (EC) No.19072006)
