Hikvision 8 Port Fast Ethernet Unmanaged PoE Switch (DS-3E0109P-E/M(B))

The Hikvision 8 Port Fast Ethernet Unmanaged PoE Switch (DS-3E0109P-E/M(B)) is a reliable Power over Ethernet switch designed for professional IP surveillance and security networking. Equipped with eight Fast Ethernet PoE ports and one uplink port, it delivers both power and data over a single Ethernet cable, making it ideal for IP cameras, access control devices, VoIP phones and other PoE-powered equipment.

Featuring intelligent PoE management, long-range transmission of up to 300 metres, 6kV surge protection and a durable metal enclosure, the DS-3E0109P-E/M(B) provides dependable network performance for homes, offices, retail stores and commercial surveillance installations. Its plug-and-play unmanaged design enables quick deployment without requiring any network configuration.

Browse our complete range of Network Switches in Kenya, explore our collection of Hikvision Switches in Kenya, or discover more genuine Hikvision networking products through the Hikvision Online Store in Kenya. Rapidtech Networks Limited supplies genuine Hikvision networking equipment backed by applicable manufacturer warranty, professional installation, network configuration and comprehensive after-sales technical support throughout Kenya.

Hikvision 8 Port Fast Ethernet Unmanaged PoE Switch (DS-3E0109P-E/M(B)) Features in Kenya

8 Fast Ethernet PoE Ports

The switch features eight 10/100Mbps PoE ports supporting IEEE 802.3af/at standards, allowing both power and data transmission over a single Ethernet cable for compatible network devices.

Intelligent PoE Power Management

Built-in intelligent power management automatically distributes available PoE power, preventing overload while ensuring continuous operation of critical connected devices.

Long-Range PoE Transmission

Ports 1 to 8 support PoE transmission distances of up to 300 metres, making the switch ideal for surveillance systems covering large buildings, warehouses and outdoor installations.

Efficient Power Delivery

Adaptive 4-core and 8-core power supply technology reduces cable power loss and improves overall efficiency when powering remote PoE devices.

VIP Port for Video Priority

The dedicated VIP port prioritizes surveillance traffic, ensuring stable and uninterrupted video transmission even when network traffic is high.

6kV Surge Protection

Integrated 6kV surge protection helps safeguard the switch and connected equipment against lightning strikes and electrical surges, improving long-term reliability.

High-Speed Switching Performance

With a switching capacity of 1.8Gbps and forwarding rate of 1.34Mpps, the switch delivers reliable Fast Ethernet performance for everyday surveillance networking.

Plug-and-Play Operation

The unmanaged design requires no software configuration, allowing fast installation and immediate operation after connecting your devices.

Compact Metal Housing

The durable metal enclosure provides excellent heat dissipation and supports both desk-mounted and wall-mounted installation for flexible deployment.

Designed for CCTV Systems

Optimized specifically for Hikvision and other IP surveillance systems, the switch delivers stable power and network connectivity for security installations.

Hikvision 8 Port Fast Ethernet Unmanaged PoE Switch (DS-3E0109P-E/M(B)) Specifications in Kenya

• Brand: Hikvision
• Model: DS-3E0109P-E/M(B)
• Product Type: Unmanaged Fast Ethernet PoE Switch
• PoE Ports: 8 × 10/100Mbps RJ45
• Uplink Port: 1 × 10/100Mbps RJ45
• PoE Standards: IEEE 802.3af / IEEE 802.3at
• Maximum PoE Output: Up to 30W per Port
• Total PoE Budget: 60W
• Switching Capacity: 1.8Gbps
• Packet Forwarding Rate: 1.34Mpps
• MAC Address Table: 2K Entries
• Internal Cache: 1Mbit
• Long-Range PoE: Up to 300 Metres
• Surge Protection: 6kV
• Power Supply: 48V DC, 1.35A
• Maximum Power Consumption: 65W
• Idle Power Consumption: 5W
• Housing: Metal
• Installation: Desk or Wall Mount
• Operating Temperature: 0°C to +40°C
• Storage Temperature: –40°C to +85°C
• Operating Humidity: 5%–95% Non-Condensing
• Dimensions: 170 × 27.6 × 93.1mm
• Net Weight: 0.35kg
• Certifications: FCC, CE, IC, RCM, UL, CB, RoHS, WEEE and REACH

Applications of Hikvision 8 Port Fast Ethernet Unmanaged PoE Switch (DS-3E0109P-E/M(B))

• IP CCTV surveillance systems
• Small business security networks
• Retail stores and supermarkets
• Office surveillance installations
• Access control systems
• Warehouse security deployments
• Schools and educational institutions
• Healthcare facilities
• Residential security systems
• Commercial buildings
• Remote IP camera installations
• Small network expansion projects
• PoE-powered network devices
• Video monitoring systems
• Professional security installations

Buy Hikvision 8 Port Fast Ethernet Unmanaged PoE Switch (DS-3E0109P-E/M(B)) in Kenya

Buy the Hikvision 8 Port Fast Ethernet Unmanaged PoE Switch (DS-3E0109P-E/M(B)) from Rapidtech Networks Limited at a competitive price in Kenya. We supply genuine Hikvision networking equipment backed by manufacturer warranty, professional consultation, installation assistance and after-sales technical support.

Our team also provides PoE switch installation, CCTV network configuration, structured cabling, surveillance system deployment, troubleshooting and comprehensive after-sales technical support throughout Kenya.

We offer fast countrywide delivery to Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, Thika, Kiambu, Machakos, Nyeri, Meru, Embu, Kakamega, Kisii, Kitale, Naivasha, Kericho, Bungoma, Garissa, Malindi and other towns throughout Kenya.

Related Hikvision Network Switch

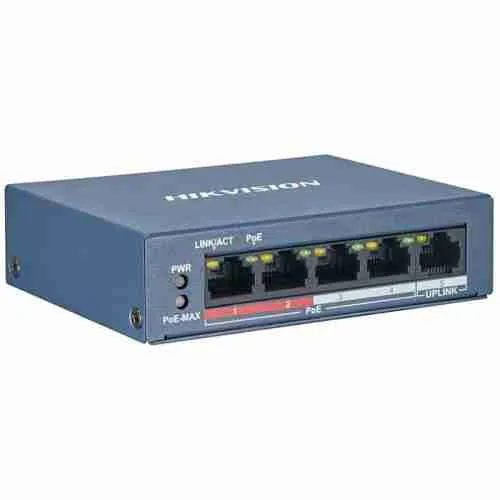

Hikvision 4-Port Fast Ethernet Unmanaged PoE Switch (DS-3E0105P-E/M(B))
