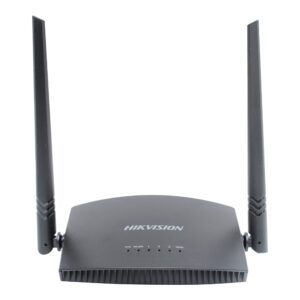

Hikvision DS-3WR4G12C(O-STD)/UK 1200mbps 4G LTE Dual Band Router

The Hikvision DS-3WR4G12C(O-STD)/UK 1200Mbps 4G LTE Dual-Band Router is a high-performance networking device that provides fast and reliable internet access via 4G LTE connectivity. Designed for homes, offices, and remote locations, this router supports dual-band WiFi with speeds of 867Mbps on 5GHz and 300Mbps on 2.4GHz, ensuring seamless online gaming, HD streaming, and smooth browsing. With built-in SIM card support, high-gain antennas for extended coverage, and advanced security features, this router delivers uninterrupted internet access even in areas with limited broadband options.

Product Features

4G LTE Connectivity for High-Speed Internet Anywhere

The built-in 4G LTE module allows users to insert a SIM card and enjoy fast internet speeds, making it an ideal solution for rural areas, mobile offices, and backup internet connections.

Dual-Band WiFi for Enhanced Performance

The router supports both 5GHz and 2.4GHz frequencies, offering:

• 867Mbps on 5GHz for lag-free gaming, high-speed downloads, and 4K video streaming.
• 300Mbps on 2.4GHz for wider coverage and stable connections across multiple rooms.

High-Gain Antennas for Extended Wireless Coverage

Equipped with powerful external antennas, the router enhances WiFi signal strength, reducing dead zones and ensuring stable connectivity throughout your home or office.

Secure Network Protection with WPA/WPA2 Encryption

With WPA/WPA2 encryption protocols, this router safeguards your network from unauthorized access, ensuring secure internet usage.

Supports Multiple Devices Simultaneously

Designed to handle multiple connected devices, this router maintains smooth performance for smartphones, laptops, smart TVs, gaming consoles, and IoT devices.

Plug & Play with SIM Card Compatibility

Simply insert a 4G SIM card, and the router automatically connects to the best available LTE network, making setup quick and hassle-free.

Reliable Backup Internet Solution

This router serves as an excellent backup connection for homes and businesses, ensuring continuous internet access even when traditional broadband fails.

Easy Setup & Management

With an intuitive web-based interface, users can easily configure settings, monitor network usage, and manage connected devices.

Product Specifications

General

• Product Dimensions (W × H × D)233.9mm×151.4mm×40.3mm
• Package Dimensions (W × H × D)405mm×307mm×80mm
• Net Weight0.560kg
• Packing List
  • 4G LTE Router × 1
  • Power Adapter × 1
  • Detachable Antenna × 2
  • Ethernet Cable × 1
  • SIM Card Adapter × 1
  • Quick Start Guide × 1

Regulatory Compliance and Safety Information × 1

• Packing MethodSingle pack
• Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity10% to 90% RH non-condensing
• Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity5% to 90% RH non-condensing
• Installation ModeDesktop installation
• Max. Power Consumption≤ 9 W
• Gross Weight0.620 kg

Wireless Parameter

• Max. Transmission Rate of Air Interface
  • ≤ 1167 Mbps
  • 2.4 GHz: 300 Mbps
  • 5 GHz: 867 Mbps
• Wireless Standard IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
• Working Frequency Band2.4 GHz，5 GHz
• Transmitting Power16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9
• Wireless Performance2*2 MIMO supported
• Receiving Sensitivity
  • -58 ± 2 dB@AC80 -MCS9
  • -84 ± 2 dB@AC80 -MCS0
• Antenna2 high gain antennas
• Network TypeLTE CAT.4
• Mobile StandardsFDD LTE, TDD-LTE,WCDMA
• Mobile Bands4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
• 4G SpeedDL: 150 Mbps, Upload: 50 Mbps

Hardware Parameter

• Network Interface2 × RJ45, 10/100 Mbps auto-negotiation
• LED Indicatorpower LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3
• ResetReset button*1
• Power Supply Method9 VDC, 1 A power adapter power supply
• Power Specifications9 VDC, 1 A

Software Function

• Application Function
  • 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
  • DHCP Server supported
  • Guest Network Configuration supported
  • Signal Adjustment supported
  • WiFi Schedule supported
• Security ModeWPA-PSK, WPA2-PSK, WPA and WPA2 supported
• Security MechanismHide SSID
• Management MethodWeb
• UpgradeWeb
• System LogSystem log
