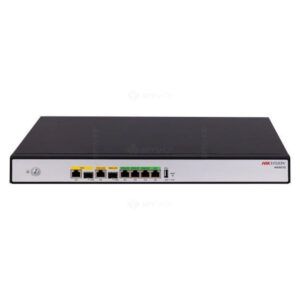

Hikvision DS-3WG507G-SI All-in-One 7-Port Rack Router

The Hikvision DS-3WG507G-SI All-in-One 7-Port Rack Router is a high-performance enterprise networking solution designed for offices, hotels, institutions, surveillance networks, commercial buildings and multi-site organizations. Featuring seven Gigabit Ethernet ports with flexible WAN and LAN configuration, the router delivers reliable wired connectivity, intelligent internet traffic distribution and centralized wireless network management.

With support for up to six WAN connections, 288 managed access points, 500 wireless clients and a forwarding capacity of up to 14 Gbps, the DS-3WG507G-SI is suitable for demanding business environments. It combines multi-WAN load balancing, IPSec VPN connectivity, advanced firewall security, user authentication, CAPWAP access-point management and remote administration through Hik-Partner Pro.

Browse our complete range of Network Routers in Kenya, explore our collection of Hikvision Routers in Kenya, or discover more genuine Hikvision networking products through the Hikvision Brand Store in Kenya. Rapidtech Networks Limited supplies genuine Hikvision networking equipment backed by manufacturer warranty, professional installation, network configuration and comprehensive after-sales technical support throughout Kenya.

Hikvision DS-3WG507G-SI All-in-One 7-Port Rack Router Features in Kenya

Seven Gigabit Ethernet Ports

The Hikvision DS-3WG507G-SI features seven Gigabit Ethernet ports for fast and reliable wired network connections. It includes three Gigabit WAN ports with two WAN/LAN switchable interfaces and four Gigabit LAN ports with three LAN/WAN switchable interfaces, providing flexible deployment options for different network requirements.

Intelligent Multi-WAN Load Balancing

The router supports up to six WAN connections, allowing businesses to combine multiple internet links for improved bandwidth utilization and network availability. It supports carrier destination-based load balancing, link bandwidth balancing, user-based balancing, policy-based routing and automatic link backup.

Centralized Access Point Management

The integrated wireless controller can centrally manage up to 288 compatible access points. Administrators can discover access points, configure wireless networks, manage SSIDs, hide SSIDs, adjust channels and assign essential network parameters from one centralized management interface.

Support for Up to 500 Wireless Clients

The DS-3WG507G-SI supports up to 500 connected wireless clients, making it suitable for offices, schools, hotels, hospitals, shopping centres and other environments with large numbers of users and wireless devices.

High-Performance Enterprise Routing

With a forwarding capacity of up to 14 Gbps, 512 MB RAM and 32 MB flash storage, the router can efficiently process enterprise network traffic generated by business systems, surveillance equipment, wireless access points, cloud services and internet-connected devices.

Secure IPSec VPN Connectivity

The router supports up to 100 IPSec VPN connections for secure communication between headquarters, branch offices and remote networks. It supports AH and ESP protocols, AES and 3DES encryption, IKE negotiation, NAT traversal, domain-name-based configuration and multiple authentication algorithms.

Advanced Network Security

Built-in security capabilities include firewall policies, DDoS protection, IP filtering, MAC filtering, URL filtering and ARP protection. The router also provides protection against SYN Flood, UDP Flood, ICMP Flood, Ping of Death, IP spoofing, fragmented packet, Smurf, Fraggle, TearDrop and other network attacks.

Flexible User Access Control

Administrators can manage network users through authentication policies, blacklists, whitelists and access restrictions. The number of users can be controlled based on individual access points or SSIDs, while online-user information and packet statistics can be monitored through the management platform.

CAPWAP Access Point Deployment

CAPWAP support simplifies the discovery, provisioning and centralized management of compatible wireless access points. The router supports automatic access-point serial-number entry, DHCP Option 43 discovery, DNS discovery and centralized assignment of IP addresses, VLANs and controller details.

Hik-Partner Pro Remote Management

Integration with Hik-Partner Pro enables one-click activation and remote device administration. Network administrators can view port speeds, monitor bandwidth utilization, display topology information, review alarms, restart ports and devices, and remotely upgrade router firmware.

Network Diagnostics and Maintenance

The router supports web-based device management, DHCP client operation, cable detection and port mirroring. Cable diagnostics can identify open circuits, short circuits and approximate network cable lengths, helping technicians locate and resolve network faults more efficiently.

Rack-Mountable Metal Design

The durable metal housing and standard rack-mountable design allow the DS-3WG507G-SI to be installed neatly inside network cabinets and server racks. Its 1U height makes it suitable for professional networking environments where equipment organization and space efficiency are important.

Hikvision DS-3WG507G-SI All-in-One 7-Port Rack Router Specifications in Kenya

• Brand: Hikvision
• Model: DS-3WG507G-SI
• Product Type: All-in-One Enterprise Rack Router
• Form Factor: 1U Rack Mount
• Shell Material: Metal
• Total Ethernet Ports: 7 × Gigabit RJ45 Ports
• WAN Ports: 3 × Gigabit WAN Ports with 2 WAN/LAN Switchable Ports
• LAN Ports: 4 × Gigabit LAN Ports with 3 LAN/WAN Switchable Ports
• Maximum WAN Connections: Up to 6
• Forwarding Capacity: 14 Gbps
• Network Bandwidth: 1 Gbps
• Maximum Managed Access Points: 288
• Maximum Connected Clients: 500
• WAN Access Methods: Static IP, DHCP and PPPoE
• Load Balancing: Carrier Destination-Based, Bandwidth-Based, User-Based and Policy-Based Routing
• Link Management: End-to-End Link Detection and Automatic Backup
• CAPWAP: Supported
• Access Control: Open System, Shared-Key, WPA, WPA2, WPA3 and WEP 64/128
• Layer 2 Protocols: ARP, Gratuitous ARP and VLAN
• Network Features: IPv4, DDNS, UPnP, DHCP Server, NTP Client, Multicast, PIM, MLD Snooping and IGMP Snooping
• VPN: IPSec VPN
• Maximum IPSec Connections: 100
• VPN Protocols: AH, ESP, IKE and NAT-T
• VPN Encryption: AES and 3DES
• VPN Authentication: MD5 and SHA-1
• Maximum NAT Access: 160,000
• AP Management: AP Discovery, Multi-SSID Configuration, SSID Hiding and Channel Configuration
• User Management: User Authentication, Blacklist, Whitelist and User Access Limits
• Security: Firewall Policy, DDoS Protection, IP Filtering, MAC Filtering, URL Filtering and ARP Protection
• Attack Protection: SYN Flood, UDP Flood, ICMP Flood, Ping of Death, Smurf, Fraggle, TearDrop and IP Spoofing Protection
• Management: Web Interface and Hik-Partner Pro
• Maintenance Features: Cable Detection, Port Mirroring and Remote Management
• Firmware Upgrade: Web Upgrade and Hik-Partner Pro Remote Upgrade
• RAM: 512 MB
• Flash Memory: 32 MB
• Reset Button: Hardware Reset Button
• Power Supply: 100–240V AC, 50/60Hz, 1A
• Maximum Power Consumption: 12 W
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 5% to 95% Non-Condensing
• Storage Temperature: -40°C to 70°C
• Storage Humidity: 5% to 95% Non-Condensing
• Dimensions: 440 × 227.4 × 44 mm
• Weight: 2.4 kg
• Certifications: CE, EMC, CB, RoHS, WEEE and REACH
• Package Contents: Router, Regulatory and Safety Information, Quick Start Guide, Screw Pack and Power Cord

Applications of Hikvision DS-3WG507G-SI All-in-One 7-Port Rack Router

• Enterprise office networks
• Corporate headquarters
• Branch office connectivity
• Hotels and hospitality networks
• Schools and universities
• Hospitals and healthcare facilities
• Retail stores and shopping centres
• CCTV and IP surveillance networks
• Warehouses and logistics facilities
• Manufacturing plants
• Government institutions
• Multi-WAN internet deployments
• Secure site-to-site VPN connections
• Centralized wireless access point management
• High-density business Wi-Fi networks

Buy Hikvision DS-3WG507G-SI All-in-One 7-Port Rack Router in Kenya

Buy the Hikvision DS-3WG507G-SI All-in-One 7-Port Rack Router from Rapidtech Networks Limited at the best price in Kenya. We supply genuine Hikvision networking products backed by manufacturer warranty, competitive pricing and professional technical support.

We offer fast countrywide delivery to Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, Thika, Kiambu, Machakos, Nyeri, Meru, Embu, Kakamega, Kisii, Kitale, Naivasha, Kericho, Bungoma, Garissa, Malindi and other towns throughout Kenya.

Our team also provides router installation, network configuration, multi-WAN setup, VPN configuration, access-point controller deployment, network troubleshooting and comprehensive after-sales technical support throughout Kenya.
