TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter

Original price was: KSh8,000.Current price is: KSh6,500. Exc. VAT

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 2km (1.2 miles)

IMPORTANT NOTICE !!!

Confirm prices and availability of an item before committing an order
Customers can order via sales@rapidtech.co.ke or call/WhatsApp/SMS +254722555289 ; +254755555289
We cannot guarantee 100% accuracy of product information on this page
Refer our terms and conditions before using our services

Description
Reviews (0)

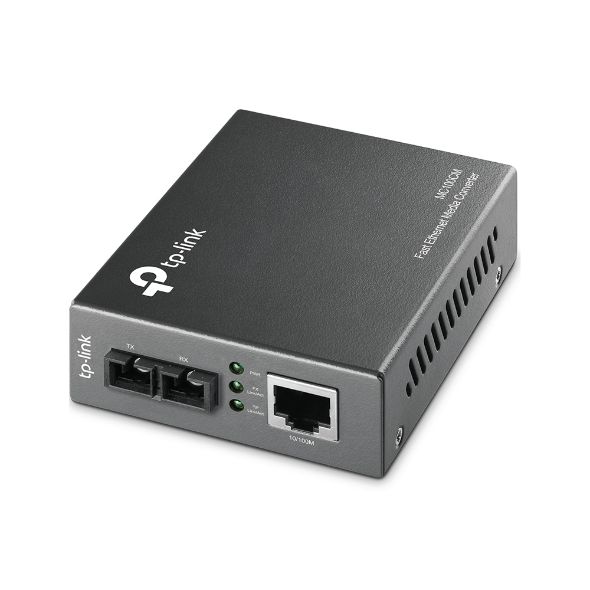

TP-Link MC100CM 10/100Mbps Multi-Mode Media Converter

The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).

TL MC100CM Features

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 2km (1.2 miles)

TL MC100CM Specifications

MEDIA CONVERTER & MODULE
STANDARDS AND PROTOCOLS	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
BASIC FUNCTION	Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 2km
PORTS	1 100M SC/UPC port 1 10/100M RJ45 port (Auto MDI/MDIX)
WAVE LENGTH	1310nm
NETWORK MEDIA 10BASE-T	UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
NETWORK MEDIA 100BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
NETWORK MEDIA 100BASE-FX	Multi-mode Fiber
LED INDICATORS	PWR, Link/Act
DIMENSIONS (WDH)	3.72.91.1 in. (94.573.027.0 mm)
POWER SUPPLY	External power supply
MAX POWER CONSUMPTION	2.4W
SAFETY & EMISSION	FCC, CE, RoHS
ENVIRONMENT	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
