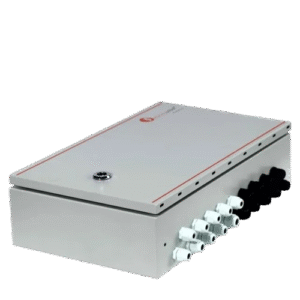

Felicity Solar PV Combiner Box 8 in 1 Combiner Box, 8 Input 1 Output

The Felicity Solar PV Combiner Box 8 in 1 (PVCB0801) is a highly efficient and reliable solution for managing and connecting multiple solar panel strings to a single output, simplifying the overall wiring and electrical configuration of large solar energy systems. With 8 inputs and 1 output, this combiner box is designed to combine the power of up to 8 solar panel arrays into a single output that can be connected to the inverter, reducing the complexity of wiring and improving the overall organization of the solar system. Ideal for large-scale residential, commercial, and industrial solar installations, the PVCB0801 provides advanced protection features to ensure the safety and longevity of the system. It includes fuses, surge protection, and reverse polarity protection to protect against potential electrical faults, while its IP65 rating ensures that the box is weatherproof and suitable for outdoor use. Whether you’re managing a rooftop solar system or a utility-scale solar farm, this combiner box simplifies installation and enhances system reliability.

Product Features

8 Inputs and 1 Output

The Felicity Solar PV Combiner Box features an 8-input configuration, allowing you to connect multiple solar panel strings (up to 8) into a single, unified output. This setup simplifies the wiring process, reduces cable clutter, and helps maintain a more organized and manageable solar power system, especially in larger installations. With a 1-output terminal, the box enables you to send the combined power of all strings to the inverter.

Comprehensive Protection Mechanisms

The PVCB0801 is equipped with various protection devices to ensure the safety and reliability of your solar energy system:

• Overcurrent Protection: Fuses are provided for each input string, ensuring protection against overloads or short circuits in the solar panel strings.
• Surge Protection: Type 2 Surge Protection Devices (SPD) protect the system from lightning strikes or electrical surges, ensuring the longevity and safety of the solar equipment.
• Reverse Polarity Protection: This feature prevents damage caused by incorrect wiring, ensuring that the combiner box and the connected inverter are protected from electrical faults.

Durable, Weather-Resistant Design

Designed for indoor and outdoor use, the PVCB0801 features a weatherproof IP65-rated enclosure. This ensures that the combiner box is fully protected against dust and water ingress, making it suitable for installation in harsh environments and outdoor locations. Whether exposed to rain, snow, dust, or extreme temperatures, the box remains durable and functional, ensuring continuous protection for your solar system.

Compact and Easy to Install

The Felicity Solar 8 in 1 Combiner Box is designed with ease of installation in mind. It is compact yet highly functional, minimizing the space required for installation while providing a clear and straightforward layout for wiring. The box is also easy to maintain, with easily accessible fuses and terminals for quick troubleshooting and replacement if necessary. Its clear labeling for each input and output simplifies the wiring process and reduces installation time.

Improved System Efficiency

By consolidating up to 8 separate strings of solar panels into a single output, the PVCB0801 combiner box reduces the number of cables and connections needed, improving system efficiency. It ensures optimal power distribution to the inverter, reducing the risk of energy loss and helping to maximize the performance of your solar energy system.

Product Specifications

• Model: Felicity Solar PV Combiner Box 8 in 1
• Inputs: 8 (for connecting solar panel strings)
• Outputs: 1 (to connect to the inverter)
• Rated Voltage: 1000V DC
• Rated Current per Input: 15A
• Surge Protection: Yes (Type 2 Surge Protection Device)
• Fuses: Yes (overcurrent protection for each input)
• Reverse Polarity Protection: Yes
• Material: High-quality, durable, weather-resistant material (PVC or ABS)
• Protection Rating: IP65 (dust-tight, water-resistant)
• Mounting: Wall mountable (suitable for both indoor and outdoor use)
• Dimensions: 450mm x 350mm x 160mm (17.7″ x 13.8″ x 6.3″)
• Weight: 7.5 kg (16.5 lbs)
• Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Certification: CE, RoHS, ISO 9001

Visit the felicity solar shop in Kenya for a more extensive variety of felicity solar systems at incredibly affordable pricing. In order to give you peace of mind with every transaction, we are one of the reputable felicity solar dealers in Kenya and offer limited manufacturer warranty for selected felicity solar products. For the most affordable felicity solar supplier offers, visit our website right now to learn about our inventory and get in touch for great deals.
