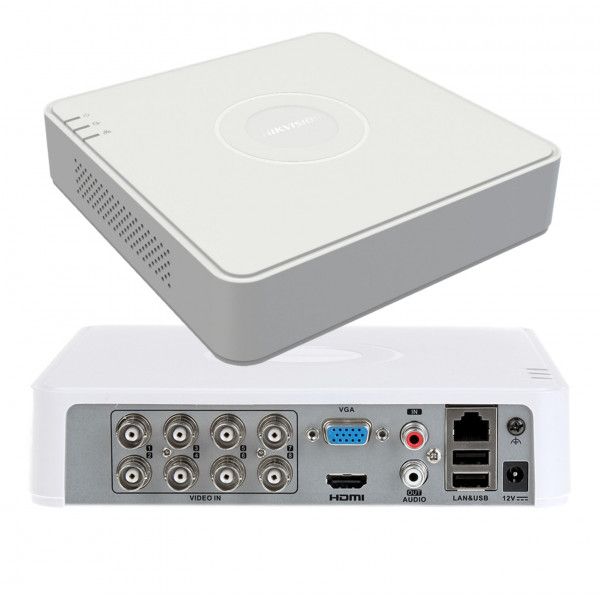

Hikvision 3K 8CH DVR 1HDD – iDS-7108HQHI-M1/S(STD)(C)

The Hikvision iDS-7108HQHI-M1/S(STD)(C) 3K 8-Channel DVR is an advanced AI-powered digital video recorder designed for efficient and intelligent security monitoring. Supporting up to 8 HD analog cameras with 3K (5MP Lite) resolution, this DVR ensures sharp and detailed video recording for enhanced surveillance. Featuring H.265+ compression technology, it significantly reduces bandwidth and storage consumption while maintaining high-quality video output. The AcuSense AI technology improves security accuracy by differentiating between humans and vehicles, minimizing false alarms. With smart playback, remote access via Hik-Connect, and multi-format camera compatibility, this compact yet powerful DVR is perfect for homes, offices, retail stores, and small businesses.

Product Features

8-Channel 3K Resolution for Superior Surveillance

The iDS-7108HQHI-M1/S(STD)(C) supports up to 8 HD analog cameras with 3K (5MP Lite) resolution, delivering exceptional image clarity for accurate security monitoring and identification.

AcuSense AI-Powered Smart Motion Detection

Equipped with Hikvision’s AcuSense technology, this DVR can intelligently differentiate between humans and vehicles, significantly reducing false alarms caused by animals, weather, or non-threat movements.

H.265+ Video Compression for Optimized Storage

Featuring H.265+ compression, this DVR efficiently reduces storage and bandwidth usage, allowing for longer recording durations while preserving high-definition video quality.

HDMI & VGA Output for High-Definition Playback

This DVR supports both HDMI and VGA outputs, with a maximum resolution of 2560×1440, ensuring clear and sharp video playback on compatible monitors.

Smart Playback for Easy Event Search

With smart playback technology, users can quickly locate motion-triggered events, reducing time spent searching through recorded footage.

Remote Access & Mobile Viewing via Hik-Connect

The Hik-Connect app allows users to remotely access live and recorded footage from smartphones, tablets, or computers, ensuring real-time monitoring from anywhere.

Multi-Format Camera Compatibility

The iDS-7108HQHI-M1/S(STD)(C) supports multiple camera formats, including TVI, AHD, CVI, and CVBS, providing flexibility in integrating various camera types into the surveillance system.

Flexible Recording Modes for Customized Security

Users can select from continuous, motion detection, or scheduled recording modes, optimizing storage usage and enhancing security coverage.

Compact 1HDD 1U Design for Space-Saving Installation

With a 1U form factor and support for 1 HDD (up to 6TB), this DVR is space-efficient while offering high-performance security recording.

Product Specifications

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle AnalysisUp to 4-ch

Facial Detection

• Facial Detection and CaptureFace picture detection, face picture search

Video and Audio

• IP Video Input

  2-ch (up to 10-ch)

  Enhanced IP mode on:

  4-ch (up to 12-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS Input Support
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input

  1-ch, RCA (2.0 Vp-p, 1 KΩ)

  8-ch via coaxial cable

• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback8-ch

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Mainstream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio Compression G. 711u
• Audio Bitrate64 Kbps

Network

• Total Bandwidth96 Mbps
• Remote Connection64
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-FiConnectable to a Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA1 SATA interface
• Capacity to 10 TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceReal panel: 2 × USB 2.0

General

• Power Supply 12 VDC, 1.33 A
• Consumption≤ 12 W (without HDD)
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
• Weight≤ 1 kg (without HDD, 2.2 lb.)
