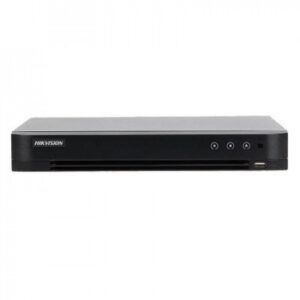

Hikvision 4-ch 720p 1U H.265 DVR – DS-7204HGHI – MI

The Hikvision 4-Channel 720p 1U H.265 DVR – DS-7204HGHI-MI is a high-performance digital video recorder designed for small to medium-sized surveillance applications. With support for up to four analog cameras, this DVR is compatible with multiple video formats, including HDTVI, AHD, HDCVI, and CVBS. Featuring H.265+ video compression technology, it maximizes storage efficiency while delivering high-quality video footage. Its advanced motion detection, remote access capabilities, and seamless integration with Hikvision’s security ecosystem make it an ideal choice for both home and business security solutions.

Product Features

Multi-Format Video Input

The DS-7204HGHI-MI supports HDTVI, AHD, HDCVI, and CVBS formats, allowing for flexible integration with various camera types. This ensures compatibility with existing surveillance setups and provides an easy upgrade path for enhanced security monitoring.

High-Definition 720p Video Recording

This DVR offers 720p high-definition recording at 25 frames per second (fps), delivering clear and detailed video footage. The enhanced imaging technology ensures reliable performance in different lighting conditions, providing sharp and high-quality visuals.

Advanced H.265+ Video Compression

Equipped with H.265+ compression technology, this DVR significantly reduces bandwidth and storage requirements, extending recording durations without compromising video quality. This helps lower overall storage costs while maintaining smooth video playback.

Intelligent Motion Detection

The DS-7204HGHI-MI features smart motion detection technology that differentiates between human and vehicle movements, minimizing false alarms caused by irrelevant objects. This enhances security efficiency and ensures accurate event detection.

Large Storage Capacity

With a single SATA interface supporting up to a 6TB hard drive, this DVR provides ample storage for continuous video recording and long-term data retention. Users can easily manage and review recorded footage with its intuitive playback system.

Remote Access and Monitoring

The DVR supports remote access via the Hik-Connect app and web browser, enabling users to monitor live feeds, playback recordings, and manage system settings from anywhere using a smartphone, tablet, or computer.

Audio and Video Synchronization

This DVR includes audio input via coaxial cables and one RCA audio output channel, allowing for synchronized video and audio recording. This enhances situational awareness by capturing important audio details along with the video feed.

User-Friendly Interface

Designed for ease of use, the DS-7204HGHI-MI features an intuitive graphical user interface (GUI) that enables quick and effortless navigation. The setup process is straightforward, making it accessible for both novice and experienced users.

Product Specifications

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, It can classify humans and vehicle and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Video and Audio

• IP Video Input

  1-ch (up to 5-ch)

  Up to 1080p resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• CVBS Input Support
• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• Synchronous playback4-ch
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Audio Input

  1-ch RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Two-Way AudioReuse the first audio input

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF

  For SD stream access: WD1/4CIF/VGA/CIF

• Frame Rate

  Mainstream:

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)

  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Network

• Total Bandwidth64 Mbps
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
• Remote Connection32
• Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA1 SATA interface
• Capacity to 4 TB capacity for each disk
• USB Interface Rear panel: 2 × USB 2.0
• Alarm In/OutN/A

General

• Power Supply 12 VDC, 1.5 A
• Consumption≤ 16 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
