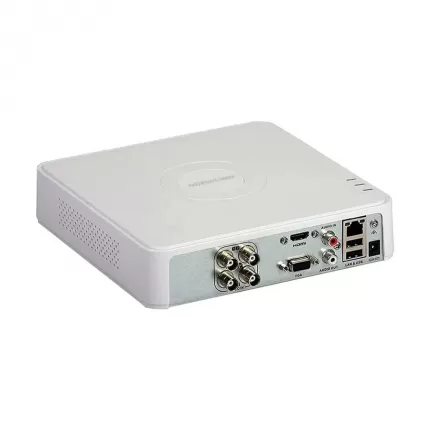

Hikvision DS-7104HGHI-M1 4 Channel DVR -White

The Hikvision DS-7104HGHI-M1 is a 4-channel digital video recorder (DVR) designed for small-scale surveillance systems. It supports up to four analog cameras and offers various features to enhance security monitoring.

Product Features

Multi-Format Video Input Compatibility

The Hikvision DS-7104HGHI-M1 supports HDTVI, AHD, HDCVI, and CVBS formats, providing flexibility in integrating various camera types into your surveillance system. This ensures compatibility with existing setups and allows seamless upgrades.

High-Definition Video Recording

This DVR supports up to 1080p Lite recording resolution at 25 frames per second (fps), delivering clear and detailed video footage. The advanced imaging technology enhances low-light performance, ensuring visibility even in challenging lighting conditions.

H.265+ Video Compression

Equipped with H.265+ compression technology, this DVR significantly reduces bandwidth and storage requirements without compromising video quality. This leads to longer recording durations and improved efficiency in data management.

Smart Motion Detection 2.0

The deep learning-based motion detection feature classifies human and vehicle movements, reducing false alarms caused by environmental factors such as shadows, light changes, or animals. This enhances security monitoring accuracy and efficiency.

Large Storage Capacity

The device includes a SATA interface that supports up to a 4TB hard drive, ensuring ample storage for continuous video recording. Users can conveniently review and manage recorded footage with an intuitive playback system.

Remote Access and Connectivity

With built-in network connectivity, the Hikvision DS-7104HGHI-M1 allows remote access through the Hik-Connect app or a web browser. Users can monitor live feeds, playback recordings, and manage settings from anywhere using a smartphone, tablet, or computer.

Efficient Audio Support

The DVR supports audio input via coaxial cables and provides an RCA audio output channel. This enables synchronized video and audio recording, enhancing situational awareness during playback and real-time monitoring.

User-Friendly Interface

Designed with an intuitive interface, this DVR allows easy navigation and setup. The graphical user interface (GUI) enables quick access to features, making it suitable for users of all experience levels.

Product Specifications

General Features

• Model Type: 4-Channel Digital Video Recorder (DVR)
• Form Factor: Compact desktop design, white color
• Video Compression Formats: H.264, H.265
• Operating System: Embedded Linux
• Storage Type: HDD (Internal storage, not included)
• Max Video Resolution: 1080p Lite (1920×1080)
• Input Channels: Supports up to 4 analog video channels (CVBS, AHD, HD-TVI, IP cameras)
• Audio Compression: G.711u, G.711a, G.726, PCM

Video and Decoding

• Video Compression:
  • H.264 and H.265 for efficient compression, reducing bandwidth and storage needs
• Video Input Channels:
  • 4 x Analog Video Inputs supporting CVBS, AHD, and HD-TVI
• Decoding Capacity: Supports 1080p Lite resolution (1920×1080) for all channels
• Video Output:
  • 1 x HDMI output (up to 1080p resolution)
  • 1 x VGA output (up to 1080p resolution)

Storage and Backup

• Storage Type: HDD-based storage (internal hard disk not included)
• Storage Capacity: Supports up to 6TB per HDD for video storage
• Backup Options:
  • USB Backup: External storage for easy data backup
  • Network Backup: Support for network-based backups

Network and Connectivity

• Ethernet Interface: 1 × RJ-45 10/100/1000 Mbps network interface
• Network Protocols Supported: TCP/IP, UDP, DHCP, DNS, PPPoE, NTP, HTTP, HTTPS, DDNS
• Remote Access:
  • Via Hik-Connect app (iOS/Android) for remote monitoring
  • Web interface for PC-based remote viewing and management
• Mobile App: Support for remote viewing and configuration via the Hik-Connect mobile app

Recording and Playback

• Recording Resolution:
  • Supports 1080p Lite resolution for all channels
  • Recording frame rate up to 25/30 fps per channel
• Recording Modes: Continuous, scheduled, motion detection, event-triggered recording
• Playback:
  • Supports multi-channel synchronous playback for up to 4 channels
  • Smart Search functionality for event-based searches (motion detection, etc.)

Power and Environmental

• Power Supply: 12V DC power input
• Power Consumption: Typically < 15W (excluding connected cameras)
• Operating Temperature: -10°C to 55°C
• Operating Humidity: 10% to 90% (non-condensing)

Physical Features

• Dimensions: 275 mm × 220 mm × 45 mm (Compact size)
• Weight: Approx. 0.9 kg
• Chassis Material: White plastic
