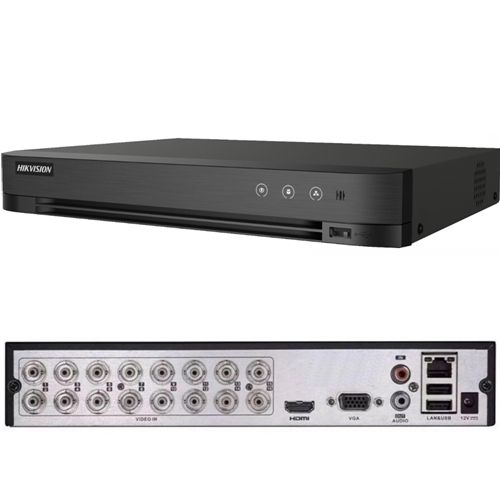

Hikvision DS-7216HGHI-M1 16-Channel 720p 1U H.265 DVR

The Hikvision DS-7216HGHI-M1 is a 16-channel digital video recorder designed for medium to large-scale surveillance systems. Engineered for compatibility with HD analog and IP cameras, it delivers dependable 720p resolution and supports H.265+ video compression to maximize storage efficiency. The unit features dual video output via HDMI and VGA, smart playback functionality, and remote access through the Hik-Connect platform. Its multi-format input capability and flexible recording modes make it an ideal choice for commercial buildings, warehouses, and office environments requiring robust and scalable security.

Product Features

16-channel HD video input

The DS-7216HGHI-M1 supports up to 16 analog cameras with resolutions up to 720p, allowing for full-site video coverage. It’s compatible with a wide range of coaxial video formats including HDTVI, AHD, HDCVI, and CVBS.

H.265+ video compression

This DVR uses H.265+ video compression technology, which significantly reduces the amount of storage and bandwidth required while maintaining excellent image quality. It enables longer video retention on the same hard drive space compared to previous codecs.

HDMI and VGA output

The device provides simultaneous HDMI and VGA output at resolutions up to 1920×1080. This ensures high-definition playback for real-time monitoring and video review on modern display systems.

Smart playback

Smart playback technology allows users to efficiently review recorded footage by automatically highlighting motion-triggered events. This streamlines the process of locating critical incidents.

Remote access with Hik-Connect

Users can access live or recorded footage remotely through the Hik-Connect mobile app or web platform. This enables convenient, real-time security monitoring from any location.

Multi-format camera support

The DVR supports multiple camera technologies including TVI, AHD, CVI, and standard analog CVBS, offering flexibility for system upgrades or integration with existing cameras.

Flexible recording options

Users can configure the system for continuous, motion-based, or scheduled recording. This allows for optimized use of storage resources and tailored surveillance coverage.

1U rackmount design

The compact 1U form factor makes it easy to install the unit in professional rack environments or confined spaces, while maintaining high performance and durability.

Product Specifications

Video and Audio

• Analog Video Input: 16 channels, BNC interface, supports HDTVI, AHD, HDCVI, CVBS
• IP Video Input: Up to 2-ch (expandable to 18-ch), supports up to 5 MP resolution
• HDMI Output: 1 channel, up to 1920 × 1080 @ 60Hz
• VGA Output: 1 channel, up to 1920 × 1080 @ 60Hz
• Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ)
• Audio Output: 1-ch RCA (linear, 1 KΩ)
• Two-Way Audio: 1-ch RCA (using first audio input)
• Synchronous Playback: Up to 16 channels

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Recording Resolution: 1080p lite, 720p, VGA, WD1, 4CIF, CIF
• Frame Rate: Mainstream – 15 fps max for HD; Sub-stream – up to 25/30 fps
• Video Bitrate: 32 Kbps to 4 Mbps
• Audio Compression: G.711u, 64 Kbps
• Dual-stream Support: Yes

Network

• Remote Connections: Up to 128 users
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• Protocols Supported: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF

Storage and Interfaces

• SATA: 1 interface, supports HDD up to 6 TB
• USB: 2 × USB 2.0 ports (rear panel)

General

• Power Supply: 12 VDC, 2 A
• Power Consumption: ≤ 18 W (without HDD)
• Operating Temperature: -10°C to 55°C
• Operating Humidity: 10% to 90%
• Dimensions: 263 × 220 × 48 mm
• Weight: ≤ 2.2 kg (without HDD)
