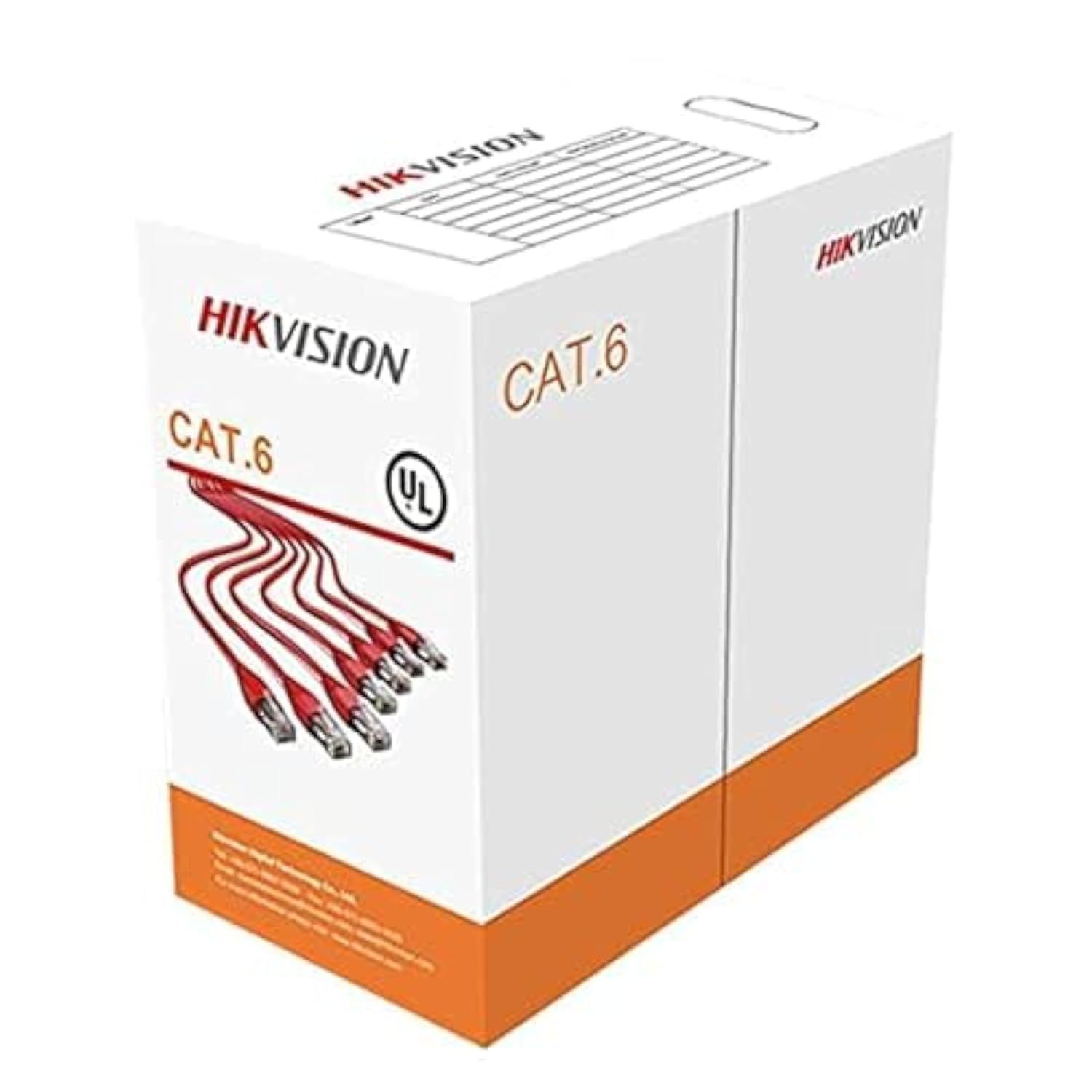

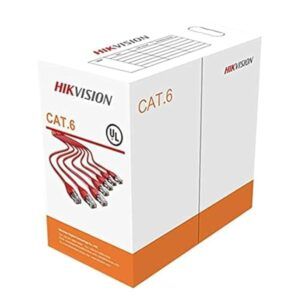

Hikvision DS-1LN6-UU CAT6 cable, 305m, CPR approved

The Hikvision DS-1LN6-UU CAT6 Cable is a high-performance networking cable designed to provide fast, stable, and reliable connectivity for a wide range of applications, including data centers, offices, home networks, and CCTV surveillance systems. With a 305-meter length, this Category 6 (CAT6) cable supports Gigabit Ethernet speeds while minimizing signal interference. The cable is also CPR-approved, ensuring compliance with strict safety and fire resistance standards, making it a secure and durable choice for professional networking installations.

Product Features

High-Speed Data Transmission

The CAT6 standard enables ultra-fast data transfer speeds, supporting Gigabit Ethernet (1000Mbps) and beyond, making it ideal for high-bandwidth applications such as video streaming, VoIP, and data transfers.

Unshielded Twisted Pair (U/UTP) for Reduced Interference

Built with precision-twisted copper pairs, this U/UTP cable minimizes crosstalk and electromagnetic interference (EMI), ensuring stable and clear signal transmission for networking and security applications.

305m Bulk Roll for Large Installations

With a 305-meter (1000-foot) length, this bulk cable roll is perfect for structured cabling projects, allowing you to customize network cable runs for offices, data centers, and surveillance setups.

CPR Approved for Fire Safety Compliance

The DS-1LN6-UU cable meets CPR (Construction Products Regulation) standards, ensuring high fire resistance and safety compliance, making it a secure choice for indoor and in-wall installations.

Durable Outer Jacket for Longevity

The rugged PVC outer jacket enhances durability and resistance to wear and tear, ensuring long-lasting performance in demanding environments.

Wide Compatibility with Networking Equipment

Fully compatible with RJ45 connectors, patch panels, routers, switches, modems, and PoE (Power over Ethernet) devices, this CAT6 cable ensures seamless integration into existing network infrastructures.

Product Specifications

General

• Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
• PackingWooden Tray & Carton
• Carton DimensionPer request
• Packing length305±1.5m
• Rip-cords
• Drain wire-no
• Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
• Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,

Conductor

• MaterialSolid-Bare Copper, Content 99.95%,
• Nom.O.D.(mm)0.565±0.005

Insulation

• MaterialHDPE
• Diameter1.02±0.05mm

Sheath

• Thickness0.55±0.05 mm
• External O.D.6.2±0.4 mm
• SurfaceClean,Frap,Satiation
• MaterialPVC(complies RoHS),CM
• ColorOrange RAL2003

Surface Printing

• Letter height3.0±0.3mm
• ColorBlack
• Print error & Space≤±0.5%，1m
