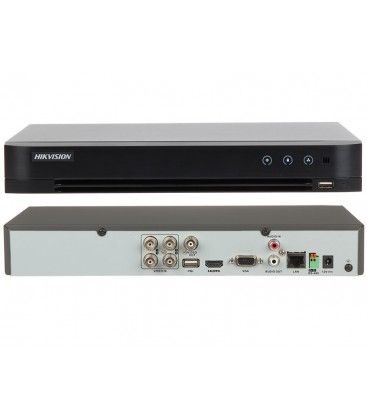

Hikvision iDS-7204HQHI-M1/XT 4-ch 1080p 1U H.265 AcuSense DVR

The Hikvision iDS-7204HQHI-M1/XT 4-Channel 1080p 1U H.265 AcuSense DVR is an advanced AI-driven surveillance recorder designed for high-precision security monitoring. With support for 4 HD analog cameras at full 1080p resolution, this DVR ensures clear and detailed video recording for effective surveillance. Featuring Hikvision’s AcuSense technology, it offers intelligent human and vehicle recognition, minimizing false alarms and enhancing security response. With H.265+ compression, smart playback, remote access via Hik-Connect, and multi-format camera support, this DVR is an ideal solution for homes, offices, retail stores, and small businesses looking for smart and efficient surveillance.

Product Features

4-Channel 1080p HD Video Input for Crystal-Clear Monitoring

The iDS-7204HQHI-M1/XT supports up to 4 HD analog cameras with full 1080p resolution, ensuring sharp and detailed footage for improved security monitoring and identification.

AcuSense AI-Powered Human & Vehicle Detection

Equipped with AcuSense technology, this DVR can intelligently differentiate between humans and vehicles, significantly reducing false alarms triggered by animals, moving objects, or environmental factors.

H.265+ Video Compression for Optimized Storage Efficiency

With H.265+ advanced compression, this DVR reduces storage and bandwidth requirements by up to 50% compared to traditional H.264 compression, allowing longer recording durations without compromising video quality.

HDMI & VGA Output for High-Resolution Playback

This DVR features both HDMI and VGA outputs, supporting resolutions of up to 1920×1080, ensuring clear and sharp video playback on compatible monitors.

Smart Playback for Fast Event Search

The smart playback feature allows users to quickly locate motion-triggered events, making it easier to review important security footage without scanning through hours of recordings.

Remote Access & Mobile Viewing via Hik-Connect

With Hik-Connect support, users can remotely access live and recorded video from smartphones, tablets, or computers, allowing for real-time security management from anywhere.

Multi-Format Camera Compatibility

The iDS-7204HQHI-M1/XT supports multiple camera formats, including TVI, AHD, CVI, and CVBS, providing flexibility to integrate various camera types within a single surveillance system.

Flexible Recording Modes for Custom Security Needs

Users can choose from continuous, motion detection, or scheduled recording modes, ensuring optimized storage usage and tailored security monitoring.

Compact 1U Rackmount Design for Easy Installation

With a 1U rackmount form factor, this DVR is space-saving and easy to install, making it perfect for various environments requiring efficient and professional security solutions.

Product Specifications

Facial Recognition

• Face Picture ComparisonFace picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
• Face Picture Library to 16 face picture libraries
• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle AnalysisUp to 2-ch
• Video and Audio
• IP Video Input2-ch (up to 6-ch), Up to 6 MP resolution
• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output

• Audio Input

  1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback4-ch

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Mainstream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-stream: Support main stream or sub stream
• Stream TypeVideo, Video & Audio
• Audio Compression G. 711u
• Audio Bitrate64 Kbps

Network

• Remote Connection32
• Total Bandwidth72 Mbps
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-FiConnectable to a Wi-Fi network by Wi-Fi dongle through USB interface
• Auxiliary Interface
• SATA1 SATA interface, up to 10 TB capacity for each disk
• Serial Interface RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0;

  Rear panel: 1 × USB 2.0

• Alarm In/OutN/A (optional to support)

General

• Power Supply 12 VDC, 1.5 A
• Consumption≤ 18 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)
• Weight≤ 1.16 kg (2.6 lb)
