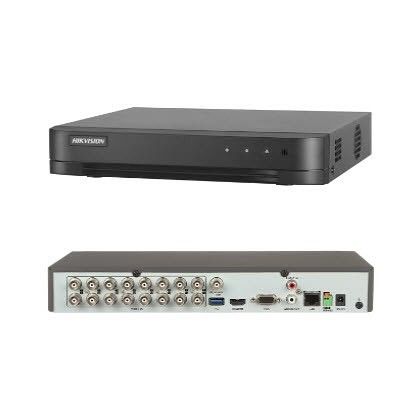

Hikvision iDS-7216HQHI-M1/FA EOL 16-ch 1080p 1U H.265 AcuSense DVR

The Hikvision iDS-7216HQHI-M1/FA EOL 16-Channel 1080p 1U H.265 AcuSense DVR is a high-performance digital video recorder designed to provide intelligent, AI-powered security monitoring. With support for 16 HD analog cameras at full 1080p resolution, this DVR delivers crisp and clear video recordings for effective surveillance. Featuring Hikvision’s advanced AcuSense technology, it can accurately differentiate between humans and vehicles, drastically reducing false alarms from non-threatening motion. Its H.265+ compression technology ensures efficient storage utilization, while smart playback and remote access via Hik-Connect provide seamless monitoring and management from anywhere. Though this model is end-of-life (EOL), it remains a reliable and intelligent choice for businesses, offices, retail stores, and residential security applications.

Product Features

16-Channel 1080p Full HD Video Recording

The iDS-7216HQHI-M1/FA supports up to 16 HD analog cameras, ensuring high-resolution 1080p video capture for comprehensive security coverage.

AcuSense AI Technology for Accurate Motion Detection

Equipped with Hikvision’s AcuSense AI technology, this DVR intelligently detects and categorizes human and vehicle movement, minimizing false alarms caused by environmental factors like animals, shadows, or weather conditions.

H.265+ Compression for Optimized Storage Efficiency

With H.265+ advanced video compression, the DVR significantly reduces bandwidth and storage usage while maintaining high-quality footage, allowing for longer recording durations.

Dual HDMI & VGA Output for High-Resolution Display

This DVR supports both HDMI and VGA outputs, delivering up to 1920×1080 resolution for clear video playback on connected monitors.

Smart Playback for Fast Event Review

The smart playback feature enables users to quickly locate and review motion-triggered events, reducing the time spent on manual video searching.

Remote Access via Hik-Connect App

With Hik-Connect integration, users can remotely monitor live feeds and access recorded footage from their smartphone, tablet, or computer, ensuring real-time security management from anywhere.

Multi-Format Camera Compatibility

The iDS-7216HQHI-M1/FA is compatible with HD-TVI, AHD, CVI, and CVBS cameras, allowing for seamless integration of various camera types into a single security system.

Multiple Recording Modes for Flexible Security Needs

Choose from continuous, motion detection, or scheduled recording to customize security settings based on specific surveillance requirements.

Compact 1U Design for Easy Installation

Designed with a space-saving 1U rackmount form factor, this DVR is easy to install in both small and large security setups.

Product Specifications

Facial Recognition

• Face Picture ComparisonFace picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera)
• Face Picture Library to 16 face picture libraries, with up to 5000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify humans and vehicles and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle AnalysisUp to 4-ch
• Video and Audio
• IP Video Input

  2-ch (up to 18-ch)

  Enhanced IP mode on:

  8-ch (up to 24-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS Input PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• HDMI Output

  1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output

• Audio Input

  1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

  16-ch via coaxial cable

• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback16-ch

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Mainstream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio Compression G. 711u
• Audio Bitrate64 Kbps

Network

• Remote Connection128
• Total Bandwidth128 Mbps
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Wi-FiConnectable toa  Wi-Fi network by Wi-Fi dongle through USB interface
• Auxiliary Interface
• SATA1 SATA interface, up to 10 TB capacity for each disk
• Serial Interface RS-485 (half-duplex)
• USB Interface

  Front panel: 1 × USB 2.0;

  Rear panel: 1 × USB 3.0

• Alarm In/OutN/A (optional to support)

General

• Power Supply 12 VDC, 2 A
• Consumption≤ 24 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight≤ 2 kg (4.4 lb)
