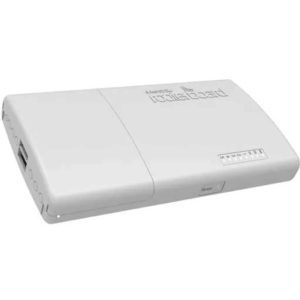

MikroTik RB960PGS-PB PowerBox Pro Outdoor Gigabit PoE Router with SFP Connectivity

The MikroTik RB960PGS-PB PowerBox Pro is an outdoor, weatherproof router designed for high-performance networking in challenging environments. It features five Gigabit Ethernet ports, four of which support PoE output, and an SFP port for optical fiber connectivity. Its rugged build and flexible PoE capabilities make it ideal for outdoor setups where power and connectivity need to be consolidated.

Product Features

Outdoor Design:

Waterproof casing for mounting on towers or other outdoor locations.

PoE Output (Ports 2-5):

Powers PoE-capable devices with the same voltage applied to the router.

Supports 802.3af/at mode B when using a 48–57V input voltage.

Fiber Connectivity:

Equipped with an SFP port for high-speed optical fiber connections.

High Performance:

Powered by an 800 MHz CPU and 128 MB RAM, supporting advanced RouterOS configurations.

Energy Efficient:

Low maximum power consumption of 9W, reducing operational costs.

Technical Specifications

General

• Product Code: RB960PGS-PB
• Architecture: MIPSBE
• CPU: QCA9557, 800 MHz
• CPU Cores: 1
• RAM: 128 MB
• Storage: 16 MB FLASH
• License Level: 4
• Dimensions: 125 x 52 x 225 mm
• Operating System: RouterOS

Powering

• Max Power Consumption: 9W
• PoE Input: Passive PoE (12–57V)
• PoE Output: Passive PoE, 802.3af/at (Ports 2–5)
• DC Inputs: 2 (DC jack, PoE-IN)

Ethernet

• Gigabit Ethernet Ports: 5

Fiber

• SFP Ports: 1

Monitoring Features

• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes

Operating Conditions

• Tested Ambient Temperature: -40°C to +70°C

Advantages

• Weatherproof and Durable: Ideal for outdoor environments, including towers and remote locations.
• PoE Flexibility: Reduces clutter by powering compatible devices directly, with support for 802.3af/at standards.
• Enhanced Connectivity: Combines fiber and Ethernet options for versatile network configurations.
• Compact and Lightweight: Small enough to fit in tight spaces without sacrificing performance.

Applications

• Wireless Base Stations: Central router for managing wireless access points and other outdoor equipment.
• Remote Deployments: Powers cameras, access points, or other PoE devices in distant locations.
• Rural or Industrial Networks: Rugged enough for extreme weather conditions and industrial setups.
