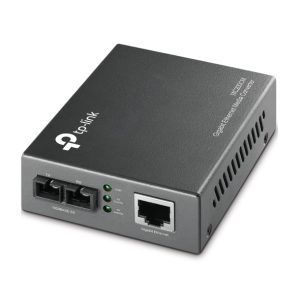

TP-Link MC200CM Gigabit Multi-Mode Media Converter

Original price was: KSh12,000.Current price is: KSh9,000. Exc. VAT

  • 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • Extends fiber distance up to 1,800 feet (550m)

IMPORTANT NOTICE !!!

TP-Link MC200CM Gigabit Multi-Mode Media Converter

The TP-Link MC200CM Gigabit Multi-Mode Media Converter is designed to convert 1000BASE-SX fiber to 1000BASE-T copper media or vice versa, enabling high-speed data transmission across different network types. Built in accordance with IEEE 802.3ab and IEEE 802.3z standards, this converter supports multi-mode fiber connections using SC-type connectors and operates over shortwave laser at 850nm. It allows for reliable data transmission over fiber distances up to 1,800 feet (550 meters), making it an efficient and cost-effective solution for extending network reach within business campuses, data centers, or enterprise environments.

Product Features

Gigabit Media Conversion

Supports conversion between 1000BASE-SX fiber and 1000BASE-T copper, enabling seamless integration between fiber-based and Ethernet-based networks.

IEEE Standards Compliance

Complies with IEEE 802.3ab and IEEE 802.3z standards, ensuring consistent compatibility and performance across gigabit networks.

Auto-Negotiation and Auto-MDI/MDIX

Equipped with a 10/100/1000 Mbps RJ45 port that supports auto-negotiation and Auto-MDI/MDIX, eliminating the need for crossover cables and simplifying setup.

Full-Duplex and Half-Duplex Support

Automatically negotiates between full-duplex and half-duplex transfer modes, optimizing data transmission based on network conditions.

Extended Fiber Reach

Delivers fiber connectivity up to 550 meters (1,800 feet) using 50/125 µm multi-mode fiber, or up to 220 meters using 62.5/125 µm fiber, ideal for short-distance enterprise backbone applications.

SC-Type Multi-Mode Fiber Support

Utilizes dual SC/UPC connectors, providing secure and stable fiber optic connectivity.

LED Status Indicators

Front panel LED indicators provide real-time status updates for power and link/activity, aiding in quick troubleshooting and system monitoring.

Compact and Efficient Design

Housed in a compact metal enclosure, the MC200CM operates quietly and efficiently, with a low power consumption of just 1.66W.

Product Specifications

  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
  • Fiber Compatibility: 1000BASE-SX multi-mode fiber
  • Copper Compatibility: 1000BASE-T UTP Cat 5/5e cable (up to 100 meters)
  • Ports:
    • 1 × 1000M dual SC/UPC fiber port
    • 1 × 10/100/1000M RJ45 port with Auto MDI/MDIX
  • Wavelength: 850 nm
  • Transmission Distance:
    • Up to 550 meters with 50/125 µm fiber
    • Up to 220 meters with 62.5/125 µm fiber
  • LED Indicators: Power, Link/Activity
  • Basic Functions:
    • Auto-negotiation for half/full duplex
    • Media conversion at full wire-speed
  • Power Supply: External power adapter
  • Maximum Power Consumption: 1.66W
  • Safety and Emission Certifications: FCC, CE, RoHS
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity: 10% to 90% non-condensing
  • Storage Humidity: 5% to 90% non-condensing
  • Dimensions (W × D × H): 95 × 73 × 27 mm (3.7 × 2.9 × 1.1 in.)
  • Package Contents:
    • 1 × MC200CM Media Converter
    • 1 × Power Adapter
    • 1 × Installation Guide
