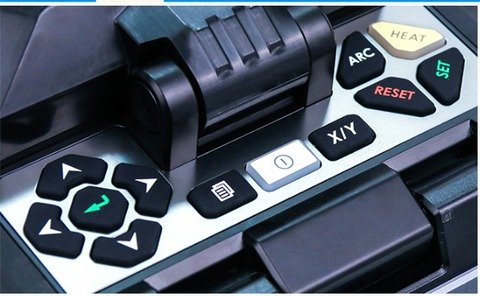

Common Fusion Splicer Errors and Solutions
Jun
Even the most advanced fiber fusion splicers occasionally generate errors during operation. These errors can be caused by fiber preparation issues, contamination, environmental conditions, equipment wear, incorrect settings, battery problems, or component failures. Understanding the most common fusion splicer errors helps technicians diagnose problems faster, reduce downtime, and maintain consistent splice quality.
Many technicians assume an error message automatically means the fusion splicer is faulty. In reality, most splicing errors originate from fiber preparation, electrode condition, cleaving quality, contamination, or environmental factors. By following a structured troubleshooting process, most issues can be resolved quickly in the field.
This guide follows our previous article on How to Clean and Maintain a Fiber Fusion Splicer. You can also browse our complete range of Fiber Optic Splicing Machines.
Why Fusion Splicer Errors Occur
Fusion splicers rely on accurate fiber preparation, precise alignment, stable arc generation, and proper environmental conditions. When any of these elements are compromised, the machine may generate warnings, error messages, failed splices, or abnormal splice loss values.
Common causes include:
- Poor cleaving
- Dirty fibers
- Electrode wear
- Battery issues
- Arc calibration problems
- Fiber misalignment
- Environmental contamination
- Incorrect machine settings
Most Common Fusion Splicer Errors
| Error Type | Likely Cause | Recommended Solution |
|---|---|---|
| High Splice Loss | Poor cleaving or contamination | Re-cleave and clean fibers |
| Arc Calibration Failure | Worn electrodes | Inspect or replace electrodes |
| Fiber Alignment Error | Dirty V-grooves or damaged fiber | Clean machine and inspect fiber |
| Fiber Detection Error | Incorrect fiber placement | Reposition fibers correctly |
| Heating Error | Heater contamination or malfunction | Inspect heating chamber |
| Battery Error | Low battery capacity | Recharge or replace battery |
| Communication Error | Software or connection issue | Restart and reconnect device |
High Splice Loss Error
High splice loss is one of the most common issues technicians encounter. This error typically indicates that the fibers were not fused correctly or that alignment was compromised.
Common causes include:
- Poor fiber cleaving
- Dirty fiber ends
- Damaged fiber
- Electrode wear
- Incorrect arc calibration
Solutions:
- Clean the fibers thoroughly
- Re-cleave the fibers
- Inspect electrodes
- Perform arc calibration
- Verify alignment quality
Arc Calibration Failure
Arc calibration helps the fusion splicer adjust its arc parameters based on environmental conditions and electrode condition. When calibration fails, splice quality may become inconsistent.
Common causes:
- Worn electrodes
- Contaminated electrodes
- Dirty V-grooves
- Environmental interference
Technicians should inspect electrode condition and replace them if necessary using genuine Signal Fire Replacement Electrodes.
Fiber Alignment Errors
Alignment errors occur when the fusion splicer cannot position the fibers correctly before fusion.
Typical causes include:
- Dirty V-grooves
- Fiber debris
- Poor cleave quality
- Damaged fiber
- Improper fiber placement
Cleaning the machine and preparing the fiber correctly usually resolves alignment issues.
Fiber Detection Errors
Fiber detection errors occur when the splicer cannot properly identify the inserted fibers.
Possible causes:
- Incorrect fiber positioning
- Broken fibers
- Dirty cameras
- Contaminated fiber holders
Solutions include repositioning the fiber and cleaning optical components.
Heating Errors
After fusion, the splice protection sleeve is heated to protect the joint. Heating errors occur when the machine cannot complete the heating process correctly.
Potential causes:
- Contaminated heater chamber
- Damaged heating element
- Incorrect sleeve placement
- Low battery power
Routine maintenance helps reduce heater-related issues.
Battery-Related Errors
Battery problems are particularly common during field deployment. Low battery voltage or aging battery cells may affect splicer operation.
Symptoms include:
- Unexpected shutdowns
- Charging problems
- Reduced operating time
- Battery warning messages
Technicians using Signal Fire equipment can restore performance with a genuine Signal Fire Replacement Lithium Battery.
Communication and Software Errors
Many modern fusion splicers include Bluetooth connectivity, mobile applications, and software update functions.
Communication errors may be caused by:
- Bluetooth interference
- Outdated firmware
- Connection instability
- Software corruption
Restarting the equipment and updating software often resolves these issues.
How to Troubleshoot Fusion Splicer Errors Systematically
| Step | Action |
|---|---|
| 1 | Read the error message carefully |
| 2 | Inspect fiber preparation quality |
| 3 | Clean fibers and V-grooves |
| 4 | Check electrode condition |
| 5 | Perform arc calibration |
| 6 | Verify battery condition |
| 7 | Repeat splice test |
Preventing Fusion Splicer Errors
The best way to reduce splicer errors is through preventive maintenance and proper operating procedures.
Recommended practices:
- Clean fibers before every splice
- Use a precision cleaver
- Perform routine arc calibration
- Maintain electrode condition
- Inspect batteries regularly
- Protect equipment from dust and moisture
A quality cleaver such as the FC-6S High Precision Fiber Cleaver helps reduce many common splicing problems before they occur.
Recommended Equipment for Reliable Splicing
Professional technicians seeking reliable field performance may consider:
- Signal Fire AI-9 Fiber Fusion Splicer
- Signal Fire Replacement Electrodes
- Signal Fire Replacement Battery
Frequently Asked Questions
Why does my fusion splicer show high splice loss?
The most common causes are poor cleaving, contamination, alignment problems, or worn electrodes.
What causes arc calibration failure?
Arc calibration failures are commonly caused by worn electrodes, contamination, or environmental conditions affecting arc performance.
Can a low battery cause fusion splicer errors?
Yes. Low battery voltage can affect heating, arc stability, and overall machine performance.
How can I reduce alignment errors?
Keep V-grooves clean, prepare fibers properly, use a quality cleaver, and ensure fibers are positioned correctly.
Conclusion
Most fusion splicer errors can be resolved through proper maintenance, correct fiber preparation, and routine equipment inspection. Understanding the common causes of errors helps technicians troubleshoot faster, improve splice quality, and maintain reliable fiber optic network performance.
