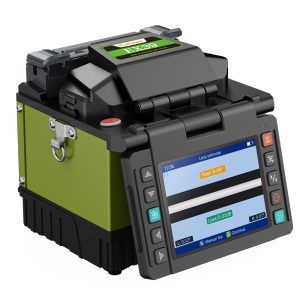

FTTX Fiber Optical Fusion Splicer Komshine EX39 Handheld Splicing Welder With Precision Cleaver. Electrode Life 5000

Komshine EX39 Handheld FTTx Splicing Machine

Original price was: KSh210,000.Current price is: KSh180,000. Exc. VAT

  • World’s most compact, Lightweight and Fast Design
  • Stable aerial operation Design
  • Auto Splice & Auto Heat Function
  • Tool-less Electrodes replacement
  • Extended-life electrodes, 5,000 splices (replaceable)
  • 3-Year Extended Warranty

IMPORTANT NOTICE !!!

FTTX Fiber Optical Fusion Splicer Komshine EX39 Handheld Splicing Welder With Precision Cleaver. Electrode Life 5000

20 years of fusion splicers expertise has enabled us to designed the EX39 to be a low-cost, easy to use, easy to maintain and economical ideal tool for FTTX fiber engineering, home installation and maintenance, security monitoring and other access network field. The EX39 is a mini sized,Hand held, 4 motors, active cladding alignment fusion splicer. It has a high adaptability to operation environment, which can adapt to aerial operations aslo can be competent for any ground works.

Product Specifications

Splice Method : Active Clad-Alignment
Applicable Fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable : 0.25~3.0 mm / indoor flat cable
Fiber Diameter : Cladding: 80-150μm，Coating: 100~1000μm
Fiber Cleave Length : 8~16 mm
Typical Splice Loss : SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB
Splicing Time : SM Quick mode : 8 sec / SM Average: 10 Sec
Heating Time : Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable
Battery : 3400mAh Battery Capacity, Typical 120 Cycles (Splice&Heat) per Charge
Electrode Life : 5000 arcs （replaceable）
Results Storage : The last 10,000 splice records and 200 result images
Display : 3.5” color high resolution (800 x 480) display
Fiber Magnification : X, Y, XY, X/Y : 320X Magnification
Weight : 1.06kg without battery / 1.35kg with battery
QX55-S SM 1310/1550nm 32/30dB
Event dead zone*1 (m) 1
Attenuation dead zone*2 (m) 3.5
Sampling resolution Min.0.04m
Loss measurement accuracy ±0.03 dB/dB
OPM (Power Meter) 800 ~ 1650nm (-70 ~ +6dBm)
OLS (Light Source) 1310/1550nm
VFL 650 10mw
RJ45 Wavelength (nm) CAT5, CAT6 / Distance of emitting signal 300m

Package Contents

  • Komshine EX39 Fusion Splicer
  • Komshine QX55-S 1310/1550nm 32/30dB OTDR
  • Komshine KPM-11M Power Meter
  • Komshine KFL-11M-30mw VFL
  • Komshine KLS-25 SM Light Source
