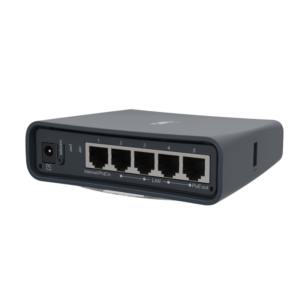

MikroTik RB952Ui-5ac2nD hAP ac lite Dual-Concurrent 2.4/5GHz AP with 5 Ethernet Ports

The MikroTik RB952Ui-5ac2nD hAP ac lite is a versatile, compact, and reliable wireless access point designed for small-scale setups such as homes and small offices. It provides simultaneous WiFi coverage on both 2.4GHz and 5GHz bands and features 5 Ethernet ports, making it an excellent solution for wired and wireless networking.

Product Features

Dual-Concurrent Wireless: Simultaneously supports 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) frequencies.

Compact Design: Small and lightweight with dimensions of 113 x 89 x 28mm, perfect for limited spaces.

Integrated RouterOS: Comes pre-installed with RouterOS and includes a Level 4 license, offering advanced network control and customization.

Multiple Ethernet Ports: Includes 5 x 10/100Mbps Ethernet ports, with PoE output available on port 5.

USB Port: USB Type-A port supports 3G/4G modems, expanding connectivity options.

Flexible Power Options: Features Passive PoE (12–30V) input and DC jack for flexibility during installation.

Technical Specifications

General Details

• Product Code: RB952Ui-5ac2nD
• CPU: QCA9531, 650MHz
• RAM: 64MB
• Storage: 16MB FLASH
• Operating System: RouterOS Level 4
• Dimensions: 113 x 89 x 28mm
• Temperature Range: -30°C to +70°C

Powering

• Maximum Power Consumption: 8W
• PoE Input Voltage: 12-30V (Passive PoE)
• DC Input Voltage: 10-30V
• PoE Output: Passive PoE on Ethernet port 5

Wireless

• 2.4GHz:
  • Standards: 802.11b/g/n
  • Chains: 2
  • Antenna Gain: 2 dBi
  • Chip Model: QCA9531
• 5GHz:
  • Standards: 802.11a/n/ac
  • Chains: 1
  • Antenna Gain: 2 dBi
  • Chip Model: QCA9887

Ethernet

• Ports: 5 x 10/100 Mbps Ethernet

Peripherals

• USB Ports: 1 (Type A)
• Max USB Current: 1A

Wireless Performance

2.4GHz Specifications

Mode	Transmit Power (dBm)	Receive Sensitivity (dBm)
1 Mbps	22	-96
11 Mbps	22	-89
6 Mbps	20	-93
54 Mbps	18	-74
MCS0	20	-93
MCS7	16	-71

5GHz Specifications

Mode	Transmit Power (dBm)	Receive Sensitivity (dBm)
6 Mbps	23	-93
54 Mbps	20	-75
MCS0	23	-93
MCS7	19	-71
MCS9	16	-63

Applications

• Home and Small Office Networking: Ideal for connecting multiple wired and wireless devices.
• Backup Internet: Use the USB port with a 3G/4G modem for uninterrupted internet connectivity.
• PoE-enabled Devices: Power compatible devices such as IP cameras directly through the Ethernet port.
