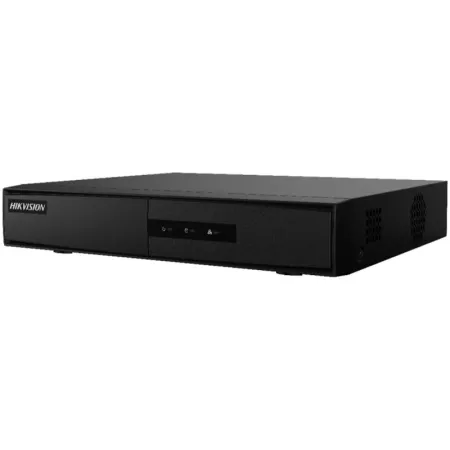

HikVision DS-7208HGHI-M1 8-CH 720P 1U H.265 DVR

The Hikvision DS-7208HGHI-M1 8-Channel 720p 1U H.265 DVR is a high-performance digital video recorder designed for small to medium-sized security systems. With H.265+ video compression, it significantly reduces storage usage while maintaining high-quality video output. Supporting up to 8 analog HD cameras with 720p resolution, this DVR ensures crisp and clear footage for enhanced surveillance. It features multiple video outputs (HDMI and VGA), remote access via Hik-Connect, and smart playback, making it a perfect solution for home security, retail stores, offices, and small businesses.

Product Features

8-Channel HD Video Input for Complete Coverage

This DVR supports up to 8 HD analog cameras with 720p resolution, ensuring clear and detailed footage for monitoring large areas. It is an ideal solution for users who need multi-camera coverage in various locations.

H.265+ Video Compression for Efficient Storage

Equipped with H.265+ video compression technology, the DS-7208HGHI-M1 optimizes bandwidth and storage usage without sacrificing video quality. This feature allows for longer recording times while using less hard drive space, making it cost-effective for continuous surveillance.

HDMI & VGA Output for High-Resolution Display

The DVR supports both HDMI and VGA outputs, offering a maximum resolution of 1920×1080 for crystal-clear playback on compatible monitors. This ensures a high-definition viewing experience when reviewing live or recorded footage.

Smart Playback for Quick Event Search

The smart playback function allows users to quickly find and review recorded footage by skipping unnecessary scenes while highlighting motion-detected events. This feature significantly improves the efficiency of monitoring and investigation.

Remote Access & Mobile Viewing with Hik-Connect

With Hik-Connect support, users can remotely access live and recorded footage from anywhere via a smartphone, tablet, or computer. This ensures real-time monitoring and instant alerts, providing greater security control even when away from the location.

Multi-Format Camera Compatibility

The DS-7208HGHI-M1 is compatible with multiple camera formats, including TVI, AHD, CVI, and CVBS, making it a flexible solution that supports different camera technologies within the same system.

Customizable Recording Modes

Users can choose from continuous recording, motion detection recording, or scheduled recording, allowing for greater flexibility in managing security footage. Motion detection recording helps save storage space by only capturing footage when activity is detected.

1U Rackmount Design for Easy Installation

With its compact 1U form factor, the DVR is designed for easy installation in standard racks or confined spaces. It is ideal for businesses and residential properties looking for a space-saving yet powerful surveillance solution.

Product Specifications

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Video and Audio
• IP Video Input

  2-ch (up to 10-ch)

  Up to 5 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input

  1-ch RCA (2.0 Vp-p, 1 KΩ)

  8-ch via coaxial cable

• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio Reuse the first audio input
• Synchronous playback8-ch

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF

  For SD stream access: WD1/4CIF/VGA/CIF

• Frame Rate

  Main stream:

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  For 1080p and 720p stream access CIF/QVGA@15 fps

  For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio Compression G. 711u
• Audio Bitrate64 Kbps

Network

• Remote Connection64
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPS
• Total Bandwidth72 Mbps
• Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp: Up to 4 TB capacity for each disk
• USB Interface Rear panel: 2 × USB 2.0
• Alarm In/OutN/A

General

• Power Supply 12 VDC, 1.5 A
• Consumption≤ 17 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
