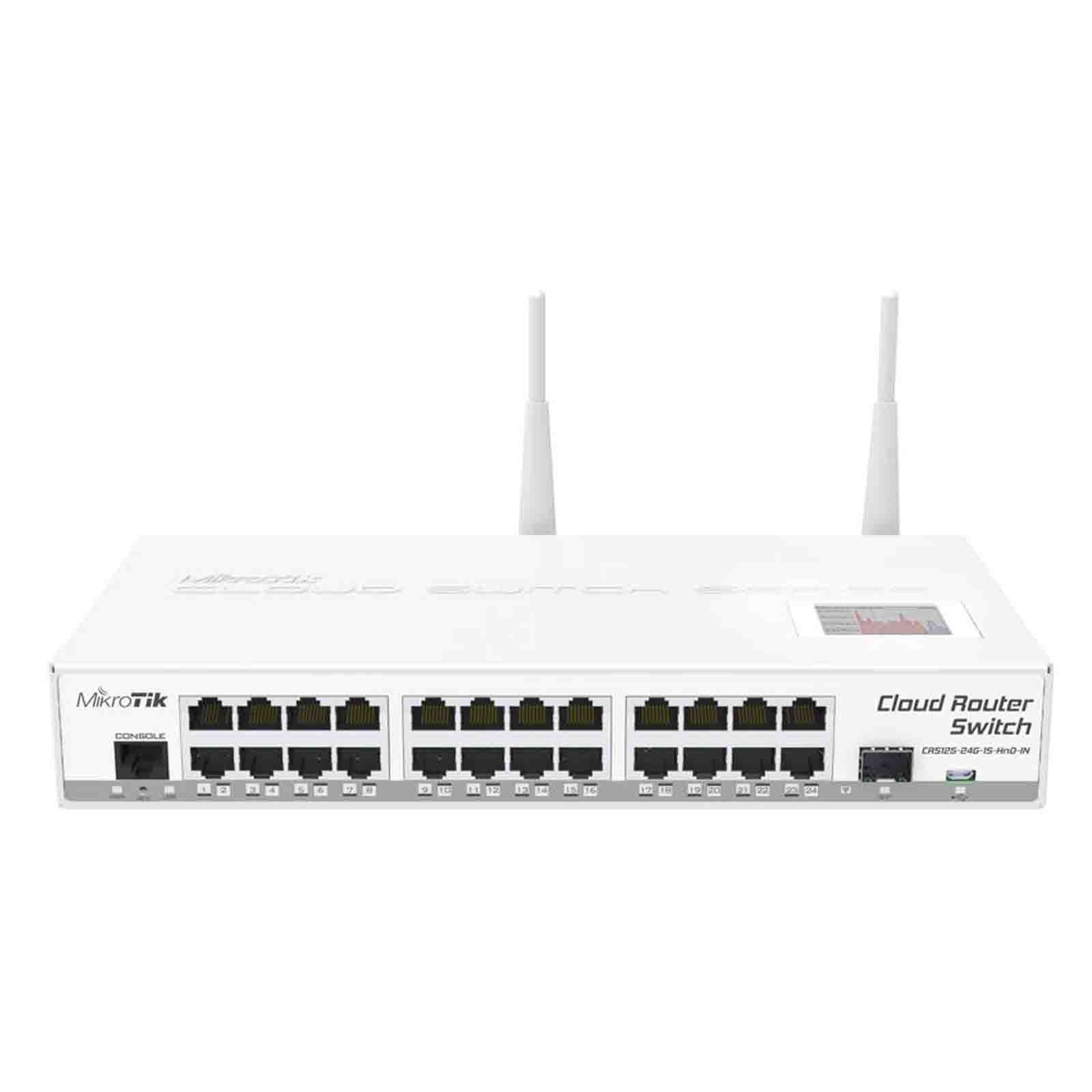

Mikrotik CRS125-24G-1S-2HnD-IN Cloud Router Gigabit Switch

The MikroTik CRS125-24G-1S-2HnD-IN is a versatile Cloud Router Switch (CRS) designed for SOHO and small/medium business environments. It integrates the capabilities of a Layer 3 smart switch, a fully functional router, and a 2.4 GHz wireless access point into a single, compact device. Ideal for businesses looking to simplify their networking infrastructure, this device provides high performance, flexibility, and reliability.

Product Features

• Layer 3 Smart Switch: Combines advanced switching with routing features using MikroTik’s powerful RouterOS.
• 24 Gigabit Ethernet Ports for high-speed wired connections.
• Integrated Wireless Access Point: Dual-chain 802.11b/g/n with 1000mW power and a 4 dBi antenna.
• SFP Cage: For fiber connectivity to extend network reach.
• Micro USB Port: Connect USB modems for 4G gateway functionality or additional storage.
• Passive Cooling: Ensures silent operation while maintaining efficient performance.
• Flexible Configuration: Use ports for switching or routing depending on your needs.

Technical Specifications

General Details

• Product Code: CRS125-24G-1S-2HnD-IN
• Architecture: MIPSBE
• CPU: AR9344, 600 MHz
• CPU Core Count: 1
• RAM Size: 128 MB
• Storage Size: 128 MB NAND
• Dimensions: 285 x 145 x 45 mm
• License Level: 5
• Operating System: RouterOS
• Tested Temperature Range: -35°C to +65°C

Powering

• Max Power Consumption: 19W
• PoE In: Passive PoE (Voltage: 8–28 V)
• DC Inputs: 2 (DC Jack, PoE-IN)

Wireless

• Frequency Band: 2.4 GHz
• Standards: 802.11b/g/n
• Number of Chains: 2
• Antenna Gain: 4 dBi
• Wireless Chip: AR9344

Ethernet Ports

• 10/100/1000 Mbps Gigabit Ports: 24

Fiber Connectivity

• SFP Ports: 1 (with DDMI support)

Peripherals

• Serial Port: RJ45
• USB Ports: 1 (microUSB type AB)
• USB Power Reset: Yes
• Max USB Current: 1A

Other Features

• PCB Temperature Monitoring: Yes
• Voltage Monitoring: Yes

Applications

• SOHO and SMB Networks: Manage wired and wireless connectivity in a single device.
• Gateway Router: Use Ethernet, fiber, or 4G (via USB modem) for internet access.
• Wireless Access Point: Extend Wi-Fi coverage with integrated AP.
• Smart Switching: Configure VLANs, manage traffic, and ensure seamless connectivity.
